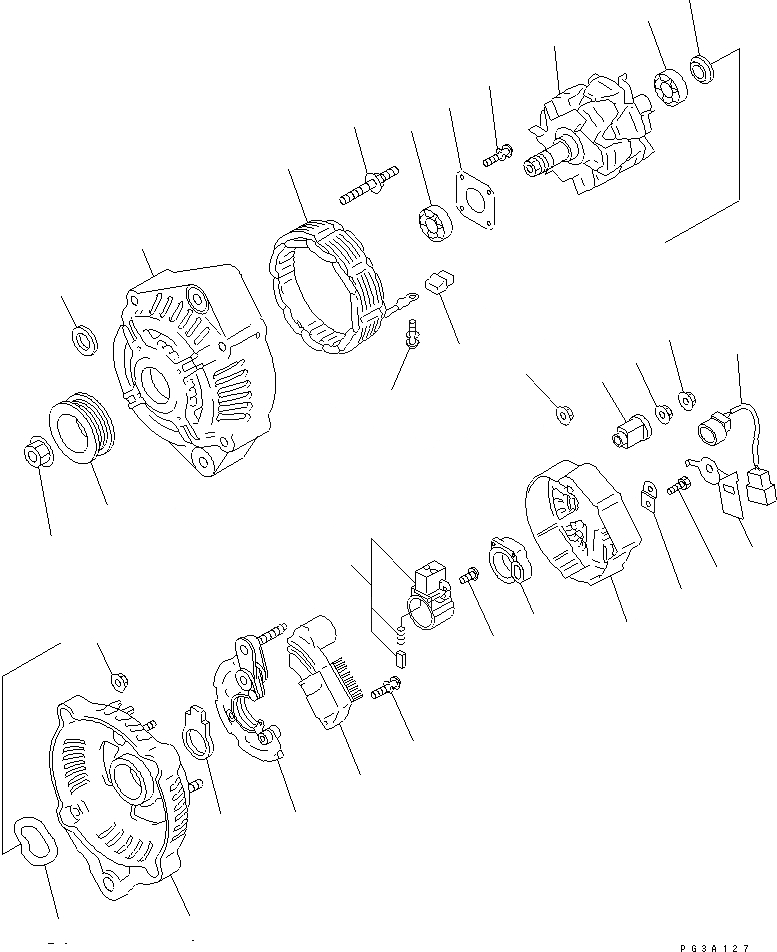

Запчасти Komatsu 6D125-1XX-B ГЕНЕРАТОР (A) (ВНУТР. ЧАСТИ)(№79-) ТОПЛИВН. СИСТЕМА

|$1

600-861-6410

ALTERNATOR A. (60A)

SN: 26327920-UP

1шт.

|$3

ND121400-0800

FRAME ASS'Y

SN: 26327920-UP

1шт.

1

ND021100-4210

STATOR ASS'Y

SN: 26327920-UP

1шт.

2

ND021401-4980

FRAME

SN: 26327920-UP

1шт.

3

ND021411-0570

PLATE

SN: 26327920-UP

1шт.

4

ND021045-0530

COLLAR

SN: 26327920-UP

1шт.

5

ND949006-5590

SCREW

SN: 26327920-UP

4шт.

6

ND949100-5010

BEARING,BALL

SN: 26327920-UP

1шт.

7

ND949043-2000

BOLT,STUD

SN: 26327920-UP

4шт.

8

ND021501-8050

FRAME,REAR

SN: 26327920-UP

1шт.

9

ND021580-4820

RECTIFIER ASS'Y

SN: 26327920-UP

1шт.

10

ND021620-2720

BRUSH HOLDER ASS'Y

SN: 26327920-UP

1шт.

11

ND126000-2320

REGULATOR ASS'Y

SN: 26327920-UP

1шт.

12

ND021551-2480

COVER

SN: 26327920-UP

1шт.

13

ND021605-1970

BUSHING

SN: 26327920-UP

4шт.

14

ND021605-2480

BUSHING

SN: 26327920-UP

1шт.

15

ND949006-5460

SCREW

SN: 26327920-UP

3шт.

16

ND91310-04251

SCREW

SN: 26327920-UP

2шт.

|$20

ND949007-5110

SCREW

SN: 26327920-UP

2шт.

17

ND949056-2481

NUT

SN: 26327920-UP

7шт.

18

ND949056-3080

NUT

SN: 26327920-UP

1шт.

19

ND021200-4141

ROTOR ASS'Y

SN: 26327920-UP

1шт.

20

ND949100-2790

BEARING,BALL

SN: 26327920-UP

1шт.

21

ND021506-0070

COVER

SN: 26327920-UP

1шт.

22

ND021041-8620

PULLEY

SN: 26327920-UP

1шт.

23

ND949056-2520

NUT

SN: 26327920-UP

1шт.

24

ND021626-0190

SEAL

SN: 26327920-UP

1шт.

25

ND021626-0250

SEAL

SN: 26327920-UP

1шт.

26

ND021542-0160

WASHER

SN: 26327920-UP

1шт.

27

ND949006-6401

SCREW

SN: 26327920-UP

1шт.

28

ND949007-6280

SCREW

SN: 26327920-UP

4шт.

29

ND021602-5230

PLATE

SN: 26327920-UP

1шт.

30

ND021751-1990

CLIP

SN: 26327920-UP

1шт.

31

ND021700-2680

WIRE

SN: 26327920-UP

1шт.

32

ND92150-06061

NUT

SN: 26327920-UP

1шт.

|$1

600-861-6410

ALTERNATOR A. (60A)

|$3

ND121400-0800

FRAME ASS'Y

1

ND021100-4210

STATOR ASS'Y

2

ND021401-4980

FRAME

3

ND021411-0570

PLATE

4

ND021045-0530

COLLAR

5

ND949006-5590

SCREW

6

ND949100-5010

BEARING,BALL

7

ND949043-2000

BOLT,STUD

8

ND021501-8050

FRAME,REAR

9

ND021580-4820

RECTIFIER ASS'Y

10

ND021620-2720

BRUSH HOLDER ASS'Y

11

ND126000-2320

REGULATOR ASS'Y

12

ND021551-2480

COVER

13

ND021605-1970

BUSHING

14

ND021605-2480

BUSHING

15

ND949006-5460

SCREW

16

ND91310-04251

SCREW

|$20

ND949007-5110

SCREW

17

ND949056-2481

NUT

18

ND949056-3080

NUT

19

ND021200-4141

ROTOR ASS'Y

20

ND949100-2790

BEARING,BALL

21

ND021506-0070

COVER

22

ND021041-8620

PULLEY

23

ND949056-2520

NUT

24

ND021626-0190

SEAL

25

ND021626-0250

SEAL

26

ND021542-0160

WASHER

27

ND949006-6401

SCREW

28

ND949007-6280

SCREW

29

ND021602-5230

PLATE

30

ND021751-1990

CLIP

31

ND021700-2680

WIRE

32

ND92150-06061

NUT
