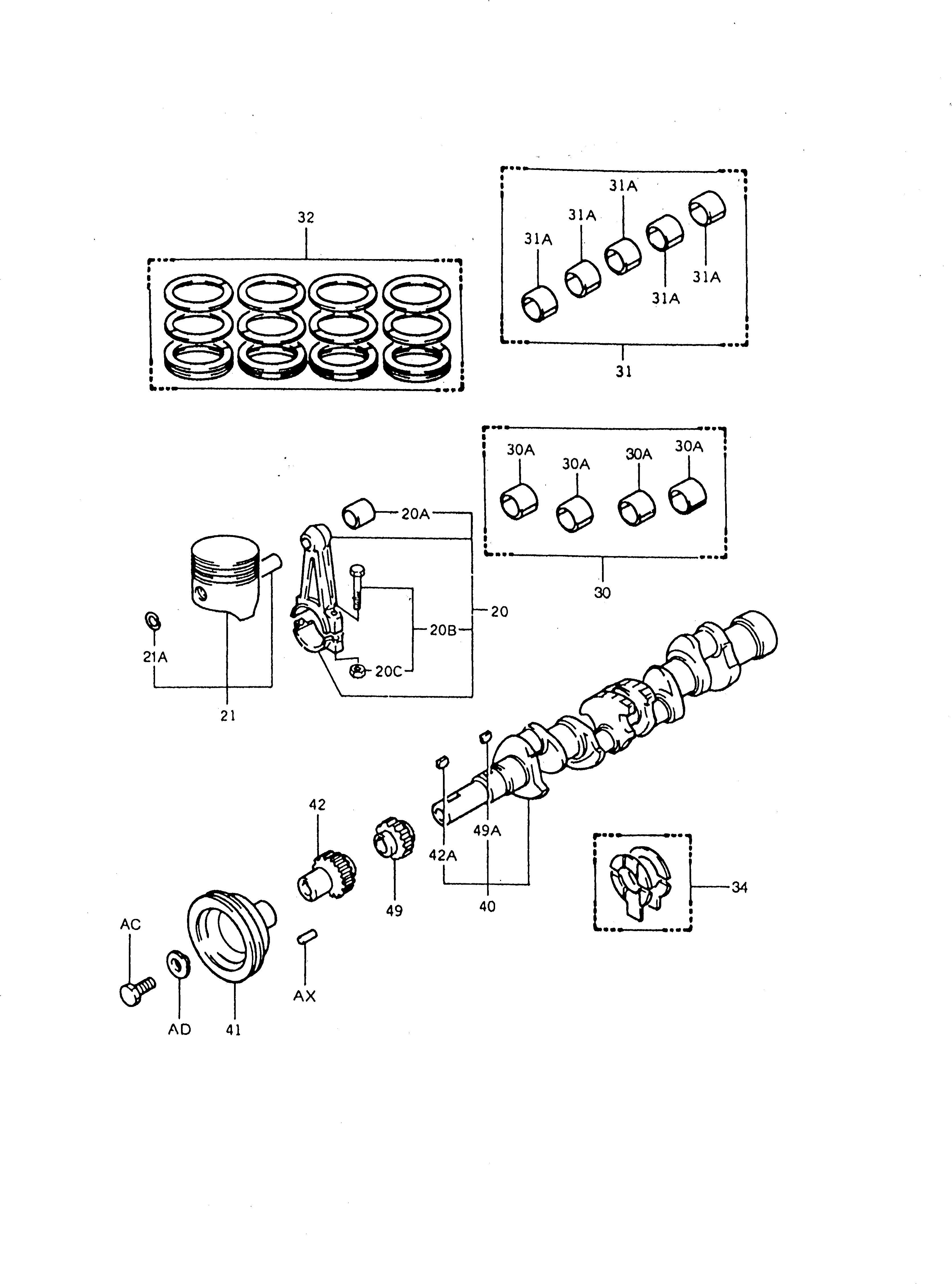

Запчасти Komatsu 5K-1-F КОЛЕНВАЛ И ПОРШЕНЬ ДВИГАТЕЛЬ

20

TJ13201-13010

ROD SUB ASS'Y

SN: 600001-UP

4шт.

20A

TJ90999-73070

BUSHING

SN: 600001-UP

4шт.

20B

TJ13265-70020

BOLT

SN: 600001-UP

8шт.

20C

TJ90179-09006

NUT

SN: 600001-UP

8шт.

21

TJ13103-13030

PISTON SUB ASS'Y,0.50MM (OS)

SN: 600001-UP

4шт.

|$5

TJ13101-13030

PISTON SUB ASS'Y (STD)

SN: 600001-UP

4шт.

21A

TJ90521-21088

RING

SN: 600001-UP

8шт.

|$$8

CONNECTING ROD

-1шт.

30

TJ13204-13040

BEARING SET,0.25MM (US)

SN: 600001-UP

1шт.

|$9

TJ13205-13040

BEARING SET,0.50MM (US)

SN: 600001-UP

1шт.

|$10

TJ13206-13040

BEARING SET,0.75MM (US)

SN: 600001-UP

1шт.

30A

TJ130411304003

BEARING,(MARK 3)

SN: 600001-UP

4шт.

|$12

TJ130411304004

BEARING,(MARK 4)

SN: 600001-UP

4шт.

|$13

TJ130411304005

BEARING,(MARK 5)

SN: 600001-UP

4шт.

|$14

TJ130411304006

BEARING,(MARK 6)

SN: 600001-UP

4шт.

|$15

TJ130411304007

BEARING,(MARK 7)

SN: 600001-UP

4шт.

|$$17

CRANKSHAFT

-1шт.

31

TJ11704-13011

BEARING SET,0.25MM (US)

SN: 600001-UP

1шт.

|$18

TJ11705-13011

BEARING SET,0.50MM (US)

SN: 600001-UP

1шт.

31A

TJ117011301103

BEARING,(MARK 3) (STD)

SN: 600001-UP

5шт.

|$20

TJ117011301104

BEARING,(MARK 4) (STD)

SN: 600001-UP

5шт.

|$21

TJ117011301105

BEARING,(MARK 5) (STD)

SN: 600001-UP

5шт.

|$22

TJ117011301106

BEARING,(MARK 6) (STD)

SN: 600001-UP

5шт.

|$23

TJ117011301107

BEARING,(MARK 7) (STD)

SN: 600001-UP

5шт.

32

TJ13013-13090

RING SET,0.50MM (OS)

SN: 600001-UP

1шт.

|$25

TJ13011-13090

RING SET (STD)

SN: 600001-UP

1шт.

34

TJ11012-22011

WASHER SET,0.125MM (OS)

SN: 600001-UP

1шт.

|$27

TJ11013-22011

WASHER SET,0.25MM (OS)

SN: 600001-UP

1шт.

|$28

TJ11011-22011

WASHER SET (STD)

SN: 600001-UP

1шт.

40

TJ13411-13010

CRANKSHAFT

SN: 600001-UP

1шт.

41

TJ134717815771

PULLEY

SN: E1341630-UP

1шт.

|$31

TJ134717815571

PULLEY

SN: 600001-E1341629

1шт.

|$32

TJ134717812171

PULLEY,(FOR AIR CONDITIONER)

SN: 600001-UP

1шт.

42

TJ135227812171

GEAR

SN: 600001-UP

1шт.

42A

TJ95161-10519

KEY

SN: 600001-UP

1шт.

49

TJ135217812171

SPROCKET

SN: 600001-UP

1шт.

49A

TJ95161-10519

KEY

SN: 600001-UP

1шт.

AC

TJ90105-12070

BOLT

SN: 600001-UP

1шт.

AD

TJ90201-12006

WASHER

SN: 600001-UP

1шт.

AX

TJ90250-06068

PIN

SN: 600001-UP

1шт.
