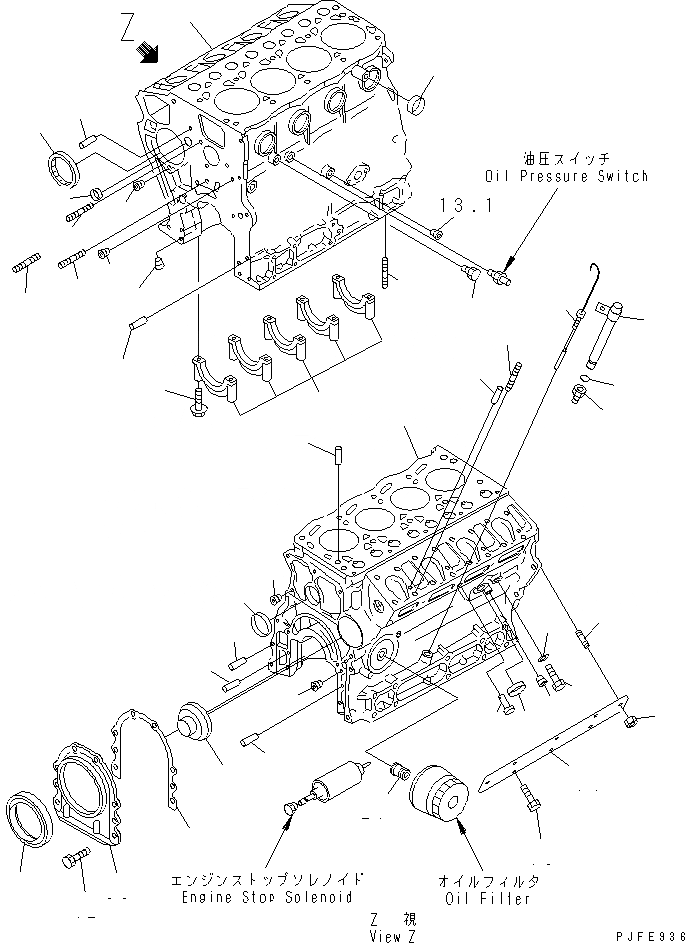

Запчасти Komatsu 4LB1-1-F БЛОК ЦИЛИНДРОВ ДВИГАТЕЛЬ

1

8-97231-540-4

BLOCK ASS'Y,CYLINDER

SN: .-UP

1шт.

|$1

8-97231-540-3

BLOCK ASS'Y,CYLINDER

SN: L151193-.

1шт.

|$2

8-97133-921-0

BLOCK ASS'Y,CYLINDER

SN: L100001-L151192

1шт.

2

8-94167-471-1

BOLT,METAL CAP

SN: L100001-UP

10шт.

3

8-94229-853-0

CUP,SEAL

SN: L100001-UP

5шт.

4

8-97209-609-0

CUP,SEAL

SN: L151193-UP

1шт.

|$6

1-09600-011-2

CUP,SEAL

SN: L100001-L151192

1шт.

5

5-09600-013-0

PLUG, (D=12MM),SEAL

SN: L100001-UP

4шт.

7

1-09600-012-1

CUP,SEAL

SN: L100001-UP

1шт.

8

8-97047-056-0

BEARING,NEEDLE

SN: L100001-UP

1шт.

9

8-97047-142-1

PLUG,THRUST CAM

SN: L100001-UP

1шт.

11

9-09664-001-0

PLUG,WATER DRAIN

SN: L100001-UP

1шт.

12

1-09605-050-0

PLUG,OIL GALLERY

SN: L100001-UP

3шт.

13

1-09605-004-0

PLUG,OIL GALLERY

SN: L100001-UP

1шт.

13.1

1-09605-019-0

PLUG,OIL GALLERY

SN: L100001-UP

1шт.

14

8-97077-787-2

COVER,INJECTION PUMP HOUSING

SN: L151193-UP

1шт.

|$16

8-97077-787-0

COVER,INJECTION PUMP HOUSING

SN: L100001-L151192

1шт.

17

0-91150-206-0

NUT

SN: L100001-UP

2шт.

18

0-28080-614-0

BOLT

SN: L100001-UP

6шт.

19

8-94343-896-0

STUD,INJECTION PUMP HOUSING COVER

SN: L100001-UP

1шт.

20

9-0411-0616-0

STUD,OIL PAN

SN: L100001-UP

2шт.

21

8-94325-595-0

STUD,OIL FILTER

SN: L100001-UP

1шт.

22

8-97039-495-3

PIN,CONTROL LINK

SN: L100001-UP

2шт.

23

9-08160-816-0

PIN,STRAIGHT

SN: L100001-UP

2шт.

25

9-08160-616-0

PIN,STRAIGHT

SN: L151193-UP

4шт.

|$25

9-08160-616-0

PIN,STRAIGHT

SN: L100001-L151192

2шт.

26

5-09604-016-0

PLUG,CYLINDER BLOCK

SN: L100001-UP

1шт.

27

9-09572-014-0

PACKING,PLUG (KIT)

SN: L100001-UP

1шт.

28

8-94200-819-0

PIN,DOWEL

SN: L100001-UP

2шт.

29

9-11229-058-1

PIN,DOWEL

SN: L100001-UP

2шт.

30

9-08160-616-0

PIN,STRAIGHT

SN: L100001-UP

4шт.

31

1-09305-005-0

STUD,INJECTION PUMP

SN: L100001-UP

8шт.

34

8-97262-145-0

STUD,WATER PUMP

SN: L151193-UP

1шт.

|$33

9-0411-0840-0

STUD,WATER PUMP

SN: L100001-L151192

1шт.

35

5-09300-065-0

STUD,TIMING CASE

SN: L100001-UP

1шт.

37

8-97262-146-1

STUD,TIMING CASE

SN: L151193-UP

1шт.

|$36

9-0411-0850-0

STUD,TIMING CASE

SN: L100001-L151192

1шт.

38

8-94459-401-1

GAUGE,OIL LEVEL

SN: L100001-UP

1шт.

39

8-97231-030-1

RETAINER

SN: L151193-UP

1шт.

|$39

8-97044-786-2

RETAINER

SN: L100001-L151192

1шт.

40

5-09625-094-0

SEAL,OIL (KIT)

SN: L100001-UP

1шт.

41

N.P.N.

PACKING,RETAINER (BONDED)

SN: L100001-UP

-2шт.

42

0-28080-620-0

BOLT,RETAINER

SN: L151193-UP

8шт.

|$43

0-28080-620-0

BOLT,RETAINER

SN: L100001-L151192

6шт.

45

8-97119-306-0

TUBE ASS'Y,GUIDE

SN: L100001-UP

1шт.

46

8-94455-894-0

NIPPLE

SN: L100001-UP

1шт.

47

5-09623-002-0

PACKING

SN: L100001-UP

1шт.
