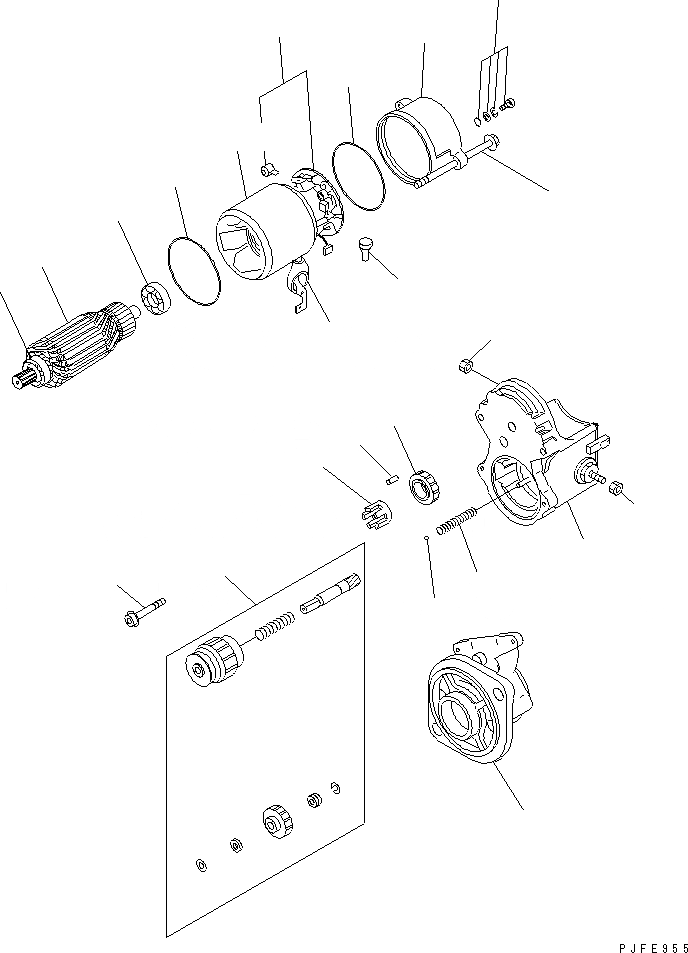

Запчасти Komatsu 4LB1-1-F STARTER ДВИГАТЕЛЬ

|$0

8-97048-967-3

STARTER ASS'Y

SN: L151193-UP

1шт.

|$1

8-97048-967-1

STARTER ASS'Y

SN: L100001-L151192

1шт.

1

8-97130-258-0

YOKE ASS'Y

SN: L100001-UP

1шт.

2

8-94377-253-0

ARMATURE ASS'Y

SN: L100001-UP

1шт.

3

8-94377-240-0

BEARING,BALL

SN: L100001-UP

1шт.

4

8-94377-241-0

BEARING,BALL

SN: L100001-UP

1шт.

5

8-97078-653-0

CLUTCH KIT

SN: L100001-UP

1шт.

6

8-97078-652-0

HOUSING ASS'Y

SN: L100001-UP

1шт.

7

8-97130-257-0

SWITCH ASS'Y,MAGNETIC

SN: L100001-UP

1шт.

8

8-94377-249-0

HOLDER ASS'Y,BRUSH

SN: L151193-UP

1шт.

|$10

8-94377-246-0

RETAINER,BRUSH

SN: L100001-L151192

1шт.

9

8-94377-244-0

SPRING,BRUSH

SN: L100001-UP

4шт.

10

8-97088-072-0

FRAME,END

SN: L100001-UP

1шт.

11

8-97078-649-0

PINION

SN: L100001-UP

1шт.

12

5-81129-099-0

ROLLER,CLUTCH

SN: L100001-UP

5шт.

13

8-94377-246-0

RETAINER

SN: L100001-UP

1шт.

14

5-81129-092-0

BALL,STEEL

SN: L100001-UP

1шт.

15

8-94377-245-0

SPRING,RETURN

SN: L100001-UP

1шт.

16

8-94377-243-0

BOLT,(WITH WASHER)

SN: L100001-UP

2шт.

17

8-97041-422-0

BOLT,THROUGH

SN: L100001-UP

2шт.

18

8-97125-853-0

SCREW

SN: L100001-UP

2шт.

19

8-94377-238-0

NUT

SN: L100001-UP

1шт.

20

8-97088-073-0

CAP,TERMINAL

SN: L100001-UP

1шт.

21

8-94109-763-0

NUT

SN: L100001-UP

1шт.

22

8-94170-214-0

O-RING

SN: L100001-UP

2шт.

23

8-94377-239-0

BUSHING,DRAIN

SN: L151193-UP

1шт.

|$26

8-97041-421-0

BUSHING,DRAIN

SN: L100001-L151192

1шт.
