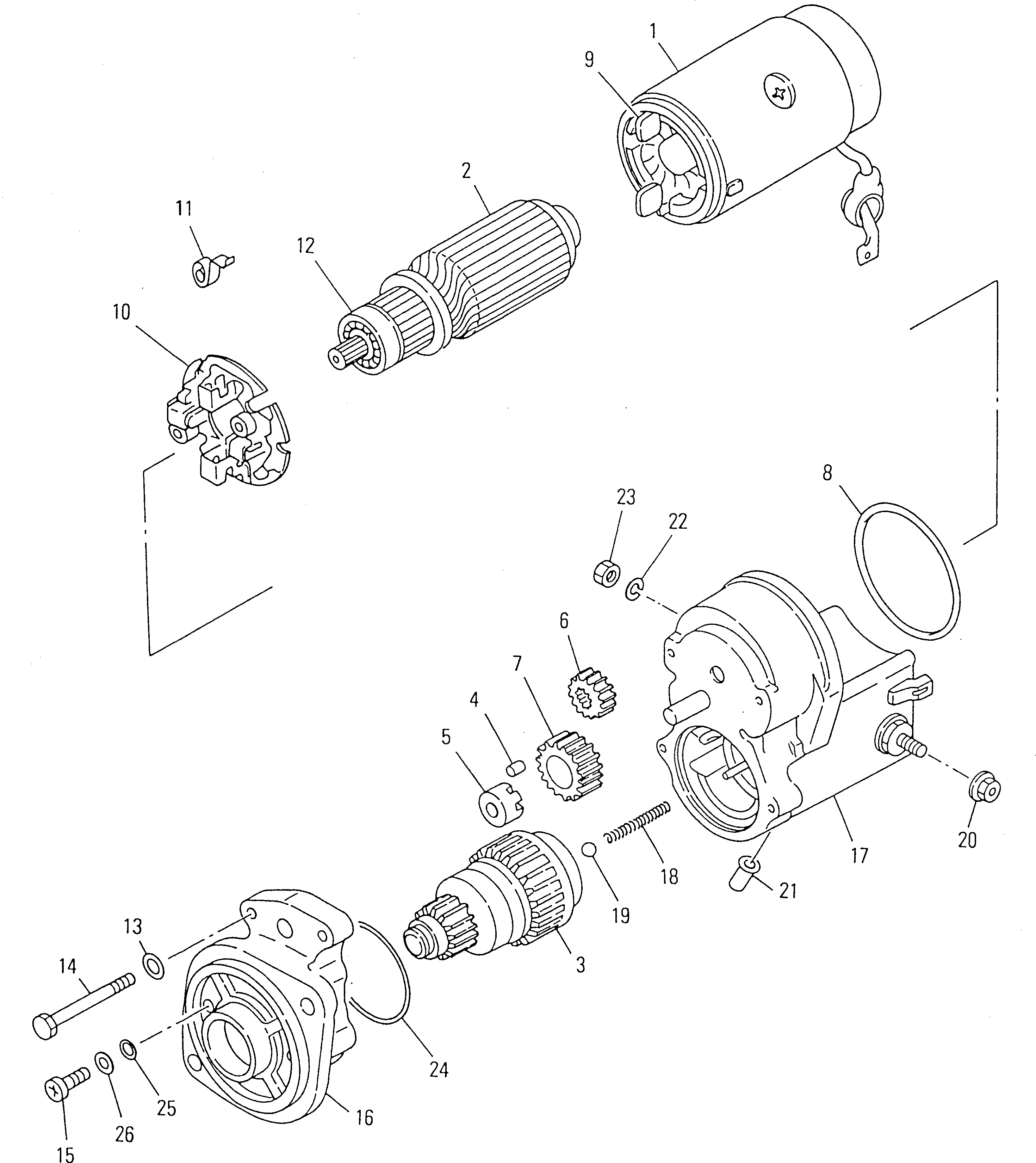

Запчасти Komatsu 4JG2-1-F STARTER (DENSO) ДВИГАТЕЛЬ

|$0

8-97042-997-0

STARTER ASS'Y,(DRY CLUTCH AND T/C SPEC.)

SN: J130001-UP

1шт.

|$1

8-97107-896-0

STARTER ASS'Y,(WET CLUTCH SPEC.)

SN: J130001-UP

1шт.

1

8-94167-425-0

YOKE ASS'Y

SN: J130001-UP

1шт.

2

8-97083-193-0

ARMATURE ASS'Y

SN: J130001-UP

1шт.

3

5-81124-003-0

CLUTCH SUB ASS'Y,(DRY CLUTCH AND T/C SPEC.)

SN: J130001-UP

1шт.

|$5

8-97109-092-0

CLUTCH SUB ASS'Y,(WET CLUTCH SPEC.)

SN: J130001-UP

1шт.

4

5-81129-099-0

ROLLER

SN: J130001-UP

5шт.

5

5-81129-100-0

RETAINER

SN: J130001-UP

1шт.

6

5-81123-010-0

PINION

SN: J130001-UP

1шт.

7

8-94167-427-0

PINION

SN: J130001-UP

1шт.

8

8-94167-428-0

O-RING

SN: J130001-UP

1шт.

9

8-97083-194-0

STARTER KIT

SN: J130001-UP

1шт.

10

8-94167-430-0

HOLDER ASS'Y,BRUSH

SN: J130001-UP

1шт.

11

5-81117-015-0

SPRING

SN: J130001-UP

4шт.

12

8-97083-195-0

BEARING,BALL

SN: J130001-UP

1шт.

13

5-81129-211-0

O-RING

SN: J130001-UP

2шт.

14

8-94167-433-0

BOLT

SN: J130001-UP

2шт.

15

8-94167-434-0

SCREW

SN: J130001-UP

2шт.

16

8-94167-435-0

HOUSING,(DRY CLUTCH AND T/C SPEC.)

SN: J130001-UP

1шт.

|$19

8-97109-093-0

HOUSING,(WET CLUTCH SPEC.)

SN: J130001-UP

1шт.

17

8-97083-196-0

SWITCH ASS'Y,MAGNETIC

SN: J130001-UP

1шт.

18

5-81129-096-0

SPRING

SN: J130001-UP

1шт.

19

5-81129-092-0

BALL,STEEL

SN: J130001-UP

1шт.

20

5-09400-042-0

NUT

SN: J130001-UP

1шт.

21

1-81129-677-0

COVER

SN: J130001-UP

2шт.

22

9-09150-508-0

WASHER,SPRING (WET CLUTCH SPEC.)

SN: J130001-UP

1шт.

23

9-09110-508-0

NUT,(WET CLUTCH SPEC.)

SN: J130001-UP

1шт.

24

8-97109-094-0

O-RING,(WET CLUTCH SPEC.)

SN: J130001-UP

1шт.

25

5-81129-211-0

O-RING,(WET CLUTCH SPEC.)

SN: J130001-UP

2шт.

26

5-81129-212-0

WASHER

SN: J130001-UP

2шт.
