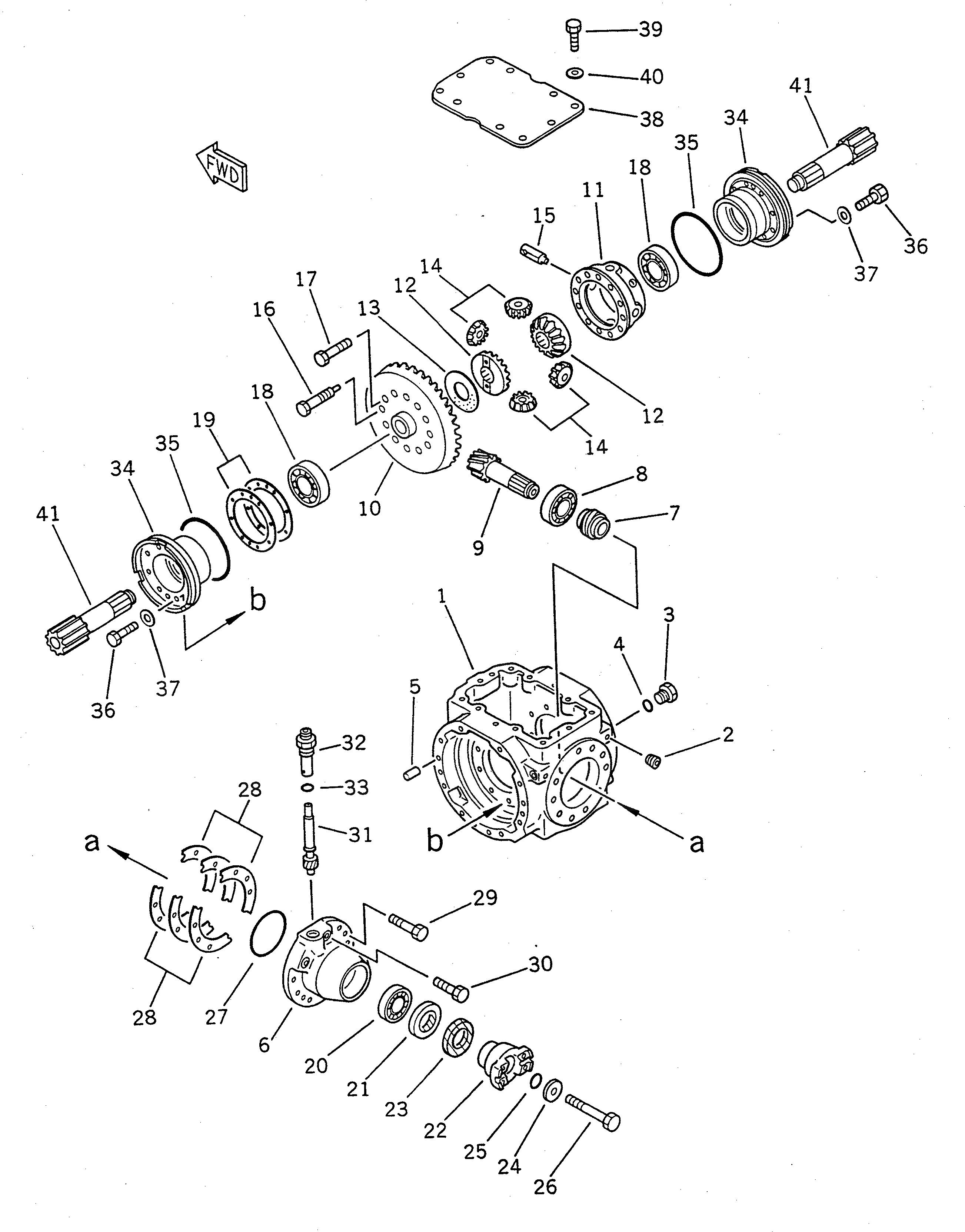

Запчасти Komatsu WR8-1 ПЕРЕДНИЙ ДИФФЕРЕНЦИАЛ ВЕДУЩ. ВАЛ¤ ДИФФЕРЕНЦ. И КОЛЕСА

|1

415-22-10002

FRONT AXLE ASS'Y,(WITH SPEEDOMETER)

SN: 19001-UP

1шт.

|1

415-22-10020

FRONT AXLE ASS'Y,(WITH SPEEDOMETER)(OEM PARTS)

SN: 19001-UP

1шт.

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3121.

-1шт.

|1

415-22-11022

DIFFERENTIAL ASS'Y,(WITH SPEEDOMETER)

SN: 19001-UP

1шт.

1

415-22-13112

HOUSING

SN: 19061-UP

1шт.

|1

0

HOUSING

SN: 19001-19060

1шт.

2

07043-50211

PLUG

SN: 19001-UP

2шт.

3

07040-11209

PLUG

SN: 19001-UP

2шт.

4

07002-01223

O-RING

SN: 19001-UP

2шт.

5

04020-01228

PIN,DOWEL

SN: 19001-UP

4шт.

6

415-22-11132

CAGE

SN: 19001-UP

1шт.

7

415-22-11862

GEAR,WORM

SN: 19001-UP

1шт.

8

415-22-11830

BEARING

SN: 19001-UP

1шт.

|9

415-22-11203

PINION ASS'Y

SN: 19001-UP

1шт.

9

0

GEAR,PINION

SN: 19001-UP

1шт.

10

0

GEAR

SN: 19001-UP

1шт.

11

415-22-11512

CARRIER

SN: 19001-UP

1шт.

12

415-22-11430

GEAR

SN: 19001-UP

2шт.

13

415-22-11530

WASHER

SN: 19001-UP

1шт.

14

415-22-11420

PINION

SN: 19001-UP

4шт.

15

415-22-11410

SHAFT

SN: 19001-UP

4шт.

16

415-22-11440

BOLT

SN: 19001-UP

4шт.

17

01010-31235

BOLT

SN: 19001-UP

8шт.

18

415-22-11850

BEARING

SN: 19001-UP

2шт.

19

415-22-11560

SHIM¤ 0.07MM

SN: 19001-UP

2шт.

|19

415-22-11570

SHIM¤ 0.2MM

SN: 19001-UP

2шт.

|19

415-22-11580

SHIM¤ 0.3MM

SN: 19001-UP

2шт.

|19

415-22-11590

SHIM¤ 0.8MM

SN: 19001-UP

2шт.

20

415-22-11811

BEARING

SN: 19001-UP

1шт.

21

07012-00060

SEAL,OIL

SN: 19001-UP

1шт.

22

415-22-11231

COUPLING

SN: 19001-UP

1шт.

23

415-22-11760

SEAL

SN: 19001-UP

1шт.

24

415-22-11241

HOLDER

SN: 19001-UP

1шт.

|24

0

HOLDER

SN: (19001-19128)

1шт.

25

07000-03028

O-RING

SN: 19001-UP

1шт.

26

01010-61285

BOLT

SN: 19001-UP

1шт.

27

07000-02115

O-RING

SN: 19001-UP

1шт.

28

415-22-11360

SHIM¤ 0.05MM

SN: 19001-UP

2шт.

|28

415-22-11370

SHIM¤ 0.10MM

SN: 19001-UP

6шт.

|28

415-22-11380

SHIM¤ 0.40MM

SN: 19001-UP

4шт.

29

01010-31235

BOLT

SN: 19001-UP

8шт.

30

01010-31250

BOLT

SN: 19001-UP

2шт.

31

415-22-11872

GEAR

SN: 19001-UP

1шт.

32

415-22-11880

SLEEVE

SN: 19001-UP

1шт.

33

07002-02434

O-RING

SN: 19001-UP

1шт.

34

415-22-11161

CARRIER

SN: 19001-UP

2шт.

35

415-33-11432

RING

SN: 19001-UP

2шт.

36

01010-30825

BOLT

SN: 19001-UP

16шт.

37

01643-50823

WASHER

SN: 19001-UP

16шт.

38

415-22-13120

COVER

SN: 19001-UP

1шт.

39

01010-31025

BOLT

SN: 19001-UP

10шт.

40

01643-31032

WASHER

SN: 19001-UP

10шт.

41

415-22-12421

SHAFT

SN: 19001-UP

2шт.
