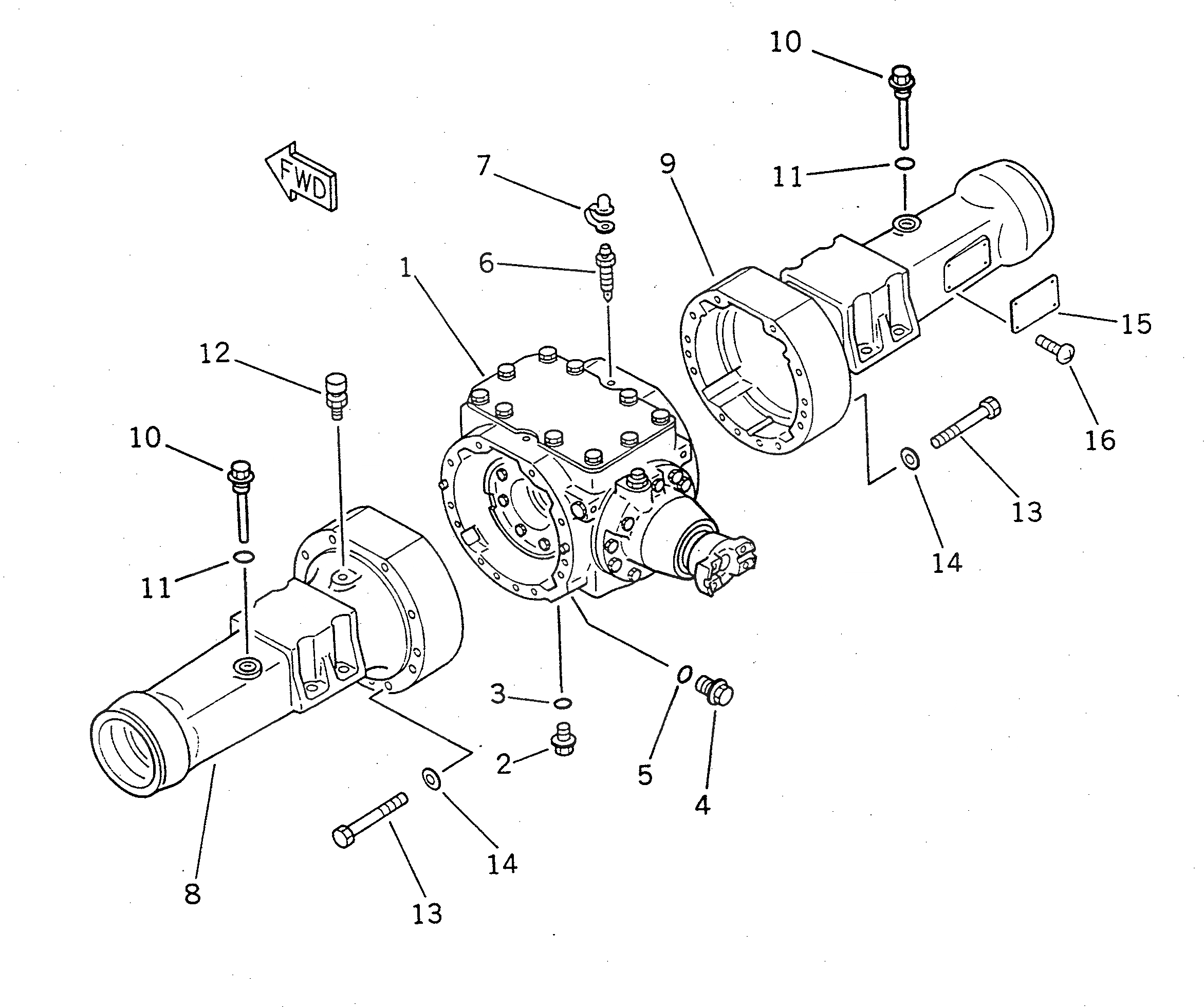

Запчасти Komatsu WR8-1 КОРПУС ПЕРЕДНЕГО МОСТА ВЕДУЩ. ВАЛ¤ ДИФФЕРЕНЦ. И КОЛЕСА

|1

415-22-10002

FRONT AXLE ASS'Y,(WITH SPEEDOMETER)

SN: 19001-UP

1шт.

|1

415-22-10020

FRONT AXLE ASS'Y,(WITH SPEEDOMETER)(OEM PARTS)

SN: 19001-UP

1шт.

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3121.

-1шт.

1

415-22-11022

DIFFERENTIAL ASS'Y,(WITH SPEEDOMETER)

SN: 19001-UP

1шт.

2

07044-12412

PLUG

SN: 19001-UP

1шт.

3

07002-02434

O-RING

SN: 19001-UP

1шт.

4

419-22-13140

PLUG

SN: 19001-UP

2шт.

5

07002-03034

O-RING

SN: 19001-UP

2шт.

6

419-33-11460

BLEEDER

SN: 19001-UP

2шт.

7

566-32-11620

CAP

SN: 19001-UP

2шт.

8

415-22-13222

HOUSING,L.H.

SN: 19001-UP

1шт.

9

415-22-13212

HOUSING,R.H.

SN: 19001-UP

1шт.

10

415-22-13140

PLUG

SN: 19001-UP

2шт.

11

07002-02434

O-RING

SN: 19001-UP

2шт.

12

07030-01030

BREATHER

SN: 19001-UP

1шт.

13

01010-31290

BOLT

SN: 19001-UP

24шт.

14

01643-31232

WASHER

SN: 19001-UP

24шт.

15

22X-22-13171

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 19001-UP

1шт.

|15

815-02-10110

PLATE¤ NAME,(LIMITED SUPPLY) (OEM PARTS)

SN: 19001-UP

1шт.

16

04418-03060

SCREW

SN: 19001-UP

4шт.
