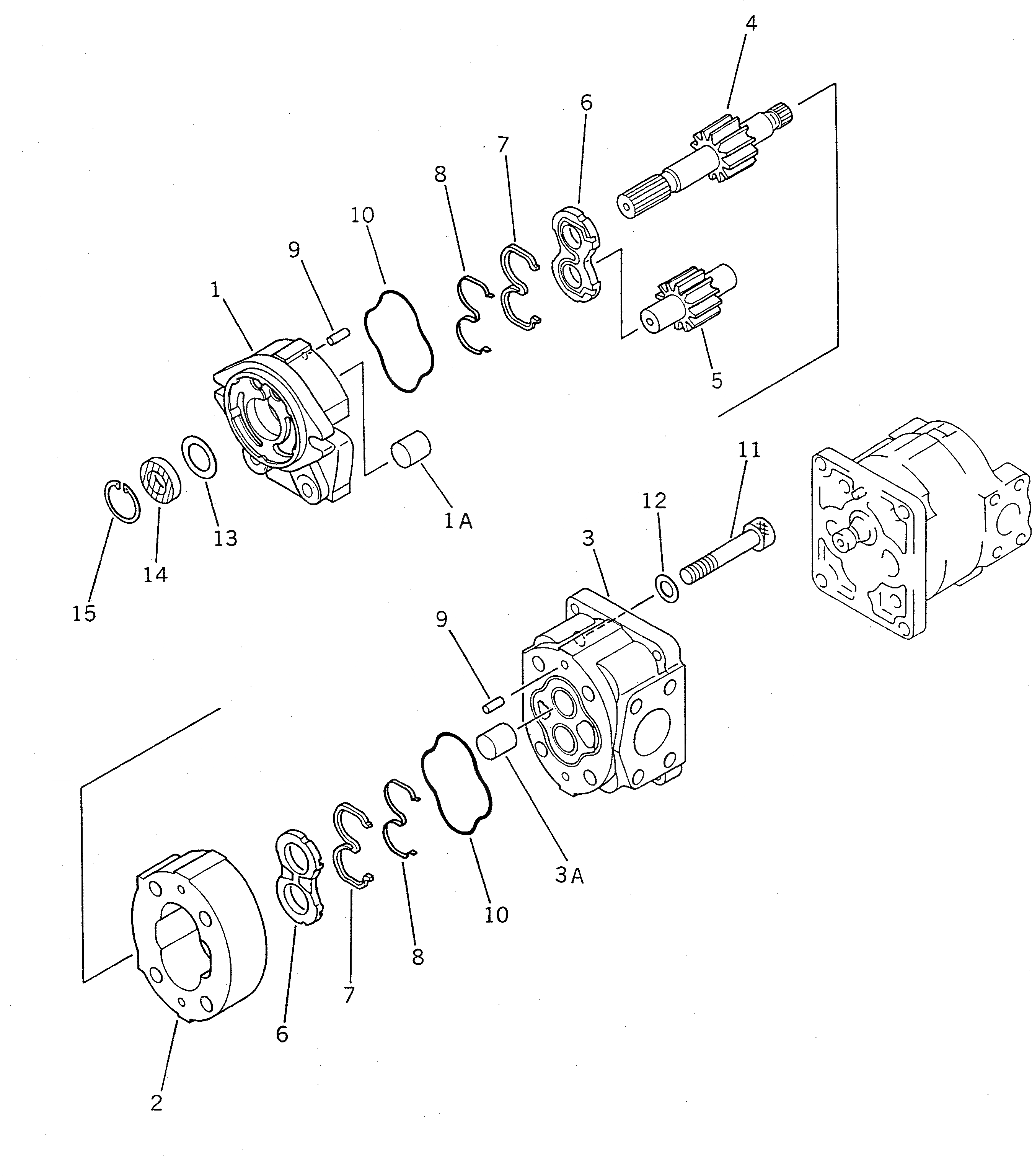

Запчасти Komatsu WR8-1 ГИДР. НАСОС. (/) ТРАНСМИССИЯ

|1

705-51-11020

PUMP ASS'Y

SN: 19001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 AND 2502.

-1шт.

|1

705-11-28230

PUMP ASS'Y,(SAL25)

SN: 19001-UP

1шт.

1

0

BRACKET ASS'Y

SN: 19001-UP

1шт.

1A

0

BUSHING,PLANE

SN: 19001-UP

2шт.

2

0

CASE,GEAR

SN: 19001-UP

1шт.

3

0

CARRIER ASS'Y

SN: 19001-UP

1шт.

3A

0

BUSHING,PLANE

SN: 19001-UP

2шт.

4

0

GEAR,DRIVE

SN: 19001-UP

1шт.

5

0

GEAR,DRIVEN

SN: 19001-UP

1шт.

6

0

PLATE,SIDE

SN: 19001-UP

2шт.

7

0

SEAL,RING

SN: 19001-UP

2шт.

8

0

RING,BACK-UP

SN: 19001-UP

2шт.

9

0

PIN,DOWEL

SN: 19001-UP

4шт.

10

0

O-RING

SN: 19001-UP

2шт.

11

0

BOLT

SN: 19001-UP

4шт.

12

0

WASHER

SN: 19001-UP

4шт.

13

705-17-01870

PLATE

SN: 19001-UP

1шт.

14

704-17-01810

SEAL,OIL

SN: 19001-UP

1шт.

15

04065-03515

RING,SNAP

SN: 19001-UP

1шт.
