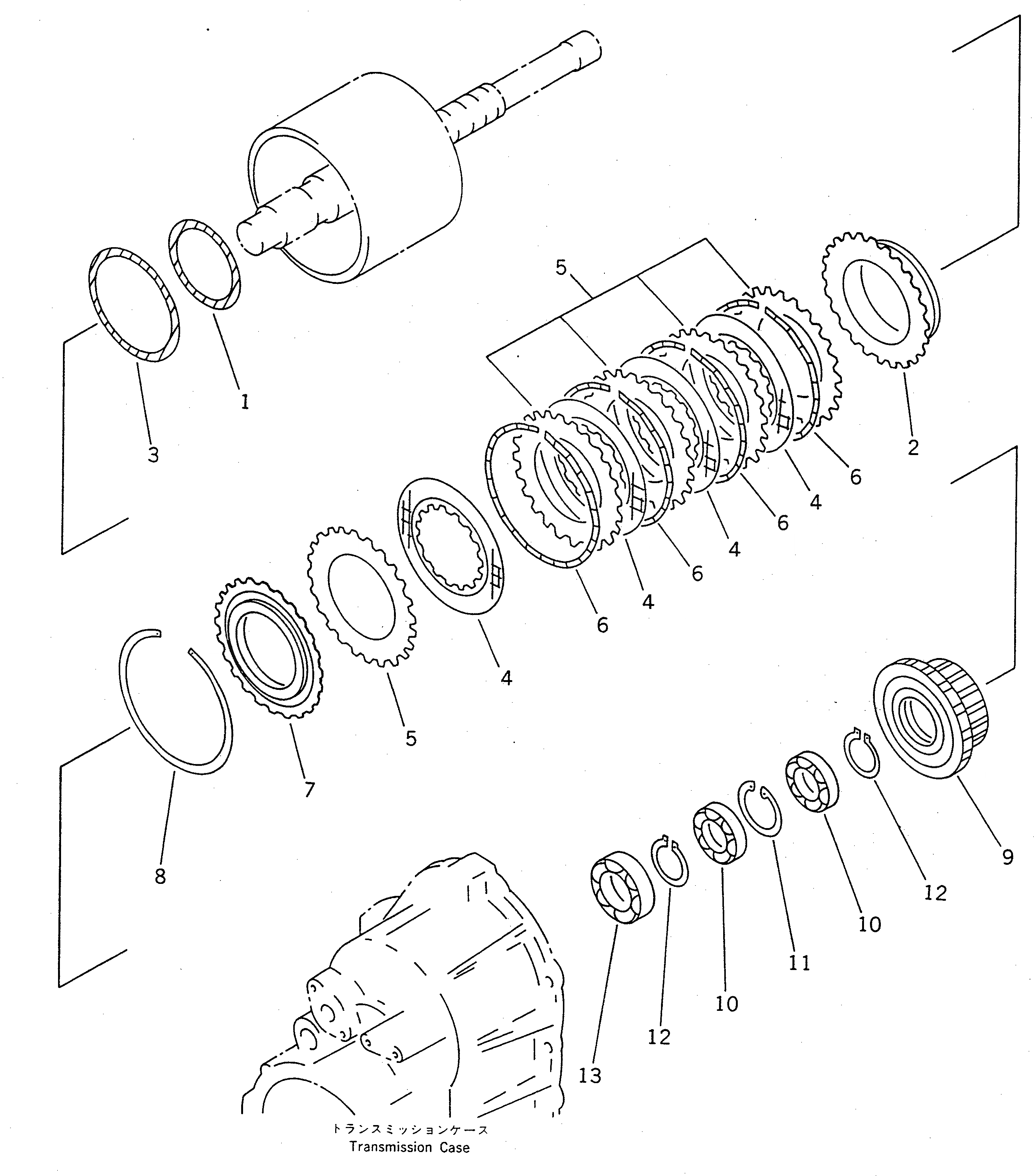

Запчасти Komatsu WR8-1 ТРАНСМИССИЯ (РЕВЕРС МУФТА) (/8) ТРАНСМИССИЯ

|1

415-15-11010

TORQFLOW ASS'Y

SN: 19001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2111 TO 2142.

-1шт.

|1

415-15-12160

CLUTCH ASS'Y,FORWARD AND REVERSE

SN: 19001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2131 AND 2132.

-1шт.

1

415-15-12370

RING,SEAL

SN: 19001-UP

1шт.

2

415-15-12312

PISTON

SN: 19001-UP

1шт.

3

415-15-12360

RING,RING

SN: 19001-UP

1шт.

4

419-15-12910

DISC

SN: 19001-UP

4шт.

5

419-15-12310

PLATE

SN: 19001-UP

5шт.

6

419-15-12133

SPRING,WAVE

SN: 19001-UP

4шт.

7

419-15-12281

PLATE,END

SN: 19001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 19001-UP

1шт.

9

415-15-12460

GEAR,REVERSE

SN: 19001-UP

1шт.

10

06030-06010

BEARING

SN: 19001-UP

2шт.

11

04065-08025

RING,SNAP

SN: 19001-UP

1шт.

12

04064-05020

RING,SNAP

SN: 19001-UP

2шт.

13

06030-06208

BEARING

SN: 19001-UP

1шт.
