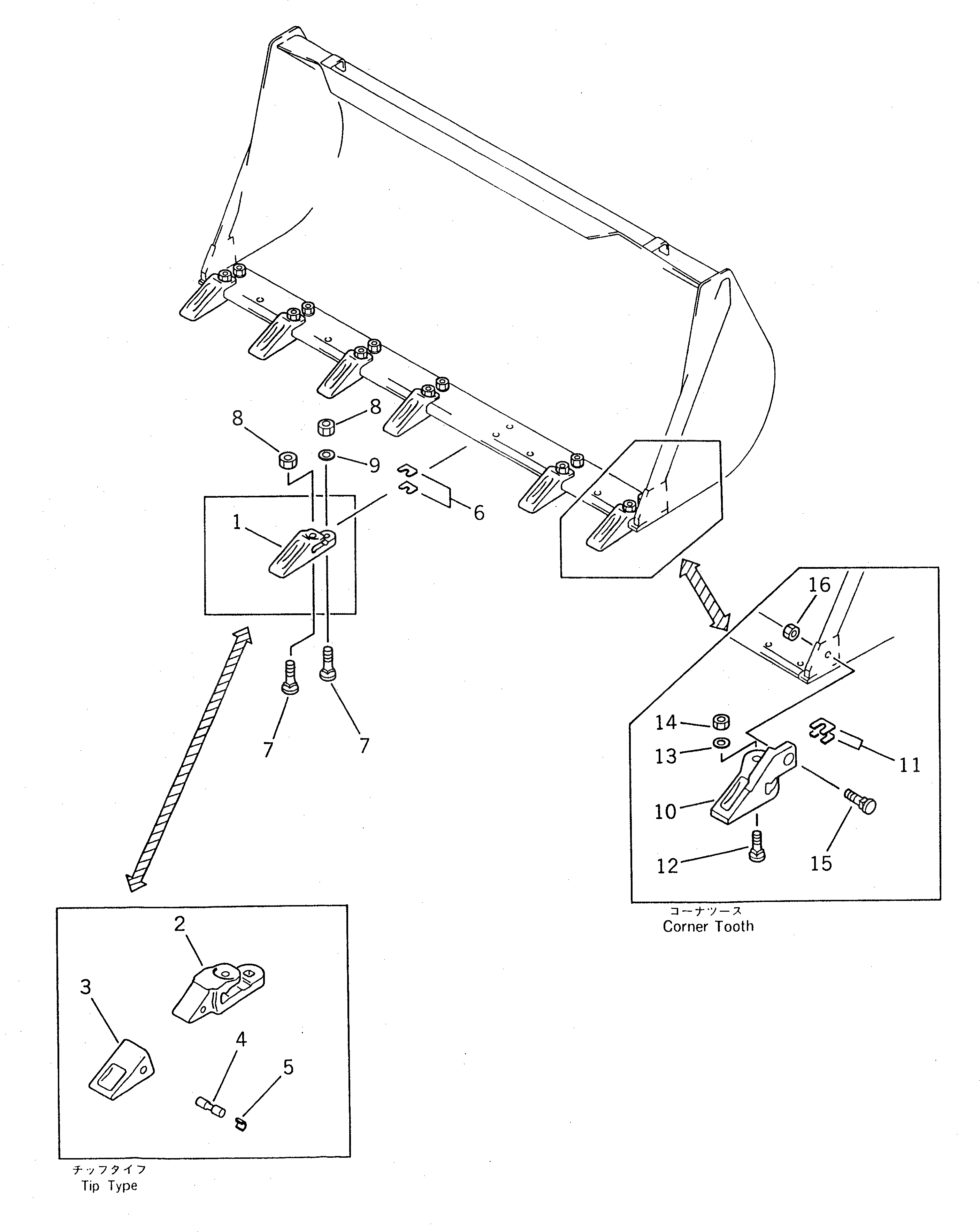

Запчасти Komatsu WR8-1 TOOTH РАБОЧЕЕ ОБОРУДОВАНИЕ

1

415-70-13110

TOOTH

SN: 19001-UP

7шт.

2

415-847-1120

ADAPTER,(TIP TYPE)

SN: 19001-UP

7шт.

3

415-847-1110

TOOTH,(TIP TYPE)

SN: 19001-UP

7шт.

4

201-70-24150

PIN,(TIP TYPE)

SN: 19001-UP

7шт.

5

201-70-24160

SPRING,(TIP TYPE)

SN: 19001-UP

7шт.

6

415-70-13120

SPACER

SN: 19001-UP

14шт.

7

09208-11965

BOLT

SN: 19001-UP

14шт.

8

09218-11916

NUT

SN: 19001-UP

14шт.

9

01643-32060

WASHER

SN: 19001-UP

7шт.

10

415-70-13130

TOOTH,CORNER¤ L.H.

SN: 19001-UP

1шт.

|10

415-70-13140

TOOTH,CORNER¤ R.H.

SN: 19001-UP

1шт.

11

415-70-13120

SPACER,(FOR CORNER TOOTH)

SN: 19001-UP

4шт.

12

09208-11965

BOLT,(FOR CORNER TOOTH)

SN: 19001-UP

2шт.

13

01643-32060

WASHER,(FOR CORNER TOOTH)

SN: 19001-UP

2шт.

14

09218-11916

NUT,(FOR CORNER TOOTH)

SN: 19001-UP

2шт.

15

417-70-13210

BOLT,(FOR CORNER TOOTH)

SN: 19001-UP

2шт.

16

09218-11916

NUT,(FOR CORNER TOOTH)

SN: 19001-UP

2шт.
