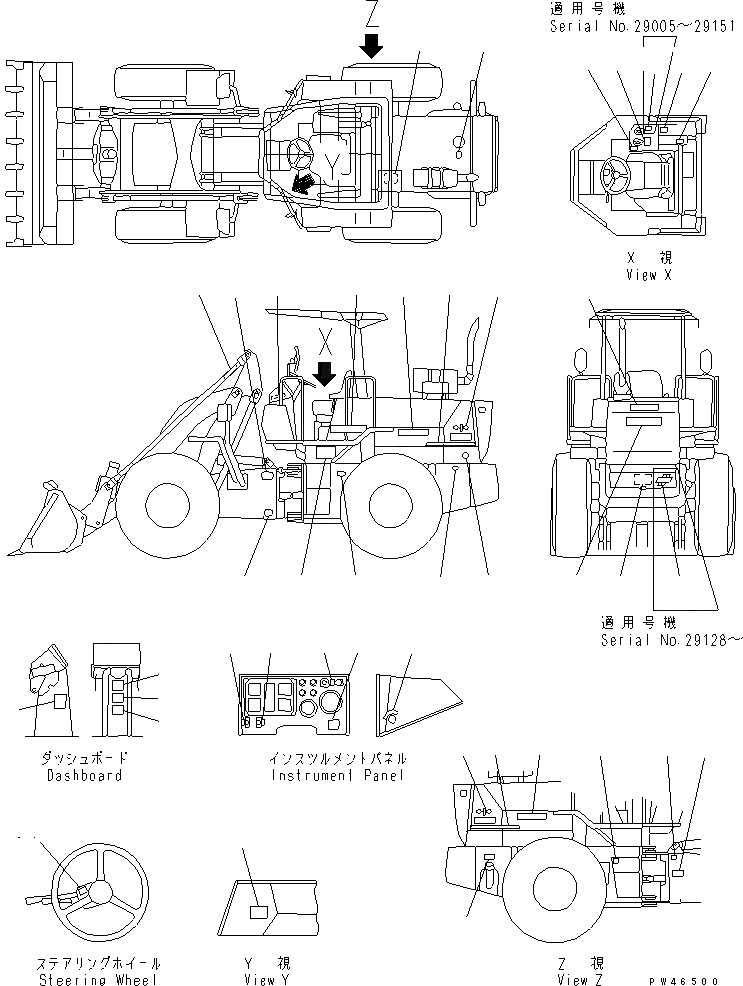

Запчасти Komatsu WR11SS-1 МАРКИРОВКА МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09637-00161

PLATE, INSTRUCTION,AIR CLEANER

SN: 29005-UP

1шт.

2

09668-00100

PLATE, SAFETY,RADIATOR CAP

SN: 29005-UP

1шт.

3

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 29005-UP

1шт.

4

41G-93-11130

PLATE, OPERATING,WORK EQUIPMENT

SN: 29152-UP

1шт.

4

417-93-11121

PLATE, OPERATING,LOADER CONTROL

SN: 29005-29151

1шт.

5

41H-93-11150

PLATE, OPERATING,REACH CONTROL

SN: 29005-29151

1шт.

6

419-93-11190

PLATE, CAUTION,BRAKE OIL

SN: 29005-UP

1шт.

7

362-54-17230

PLATE, CAUTION,HOSE CHANGE

SN: 29005-UP

1шт.

8

41H-93-11240

PLATE, MARK

SN: 29150-UP

4шт.

8

41H-93-11190

PLATE, MARK

SN: 29005-29149

4шт.

9

423-93-11240

PLATE, CAUTION,KEEP OUT

SN: 29005-UP

1шт.

10

417-93-11313

PLATE, INSTRUCTION,FUSE BOX

SN: 29005-UP

1шт.

11

417-93-11210

PLATE, MARK,KOMATSU

SN: 29005-UP

2шт.

12

41H-Z97-1130

PLATE, MARK

SN: 29005-UP

2шт.

13

41H-93-11230

PLATE, STRIPE

SN: 29150-UP

1шт.

13

41H-93-11180

PLATE, STRIPE

SN: 29005-29149

1шт.

14

41H-Z97-1120

PLATE, MARK,WR11

SN: 29005-UP

1шт.

15

362-54-17160

PLATE, CAUTION,FRAME LOCK

SN: 29005-UP

1шт.

16

41H-93-11111

CHART, OIL

SN: 29005-UP

1шт.

16

41H-93-11610

CHART, OIL (OEM PART)

SN: 29005-UP

1шт.

17

419-93-11210

PLATE, CAUTION,OIL INSPECTION

SN: 29005-UP

1шт.

18

362-54-17180

PLATE, CAUTION,FAN

SN: 29005-UP

1шт.

19

417-93-11210

PLATE, MARK,KOMATSU

SN: 29005-UP

1шт.

20

417-93-11150

PLATE, CAUTION,BATTERY

SN: 29005-UP

1шт.

21

362-54-27320

PLATE, MARK

SN: 29150-UP

1шт.

21

415-93-11160

PLATE, MARK

SN: 29128-29149

1шт.

22

41H-93-11142

PLATE, DATA

SN: 30018-UP

1шт.

22

41H-93-11141

PLATE, DATA

SN: 29150-30017

1шт.

22

41H-93-11140

PLATE, DATA

SN: 29005-29149

1шт.

22

41H-93-11620

PLATE, DATA (OEM PART)

SN: 29005-UP

1шт.

23

421-93-11181

PLATE, SAFETY

SN: 29005-UP

1шт.

24

419-93-11220

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 29005-UP

1шт.

25

362-54-17150

PLATE, CAUTION,STARTING AND OPERATING

SN: 29005-UP

1шт.

26

416-93-11280

PLATE, OPERATING,PARKING LAMP SWITCH

SN: 29005-UP

1шт.

27

416-93-11260

PLATE, OPERATING,WORKING LAMP SWITCH

SN: 29005-UP

1шт.

28

416-93-11240

PLATE, OPERATING,LIGHT SWITCH

SN: 29005-UP

1шт.

29

424-93-11360

PLATE, OPERATING,WORK LAMP

SN: 29005-UP

1шт.

30

09683-01050

PLATE, OPERATING,STARTING SWITCH

SN: 29005-UP

1шт.

31

417-93-11131

PLATE, OPERATING,TRANSMISSION CONTROL

SN: 29005-UP

1шт.

32

417-93-11140

PLATE, OPERATING,MONITOR PANEL

SN: 29005-UP

1шт.

33

09101-00100

PLATE, INSTRUCTION,FUEL

SN: 29005-UP

1шт.

34

41H-93-11121

PLATE, MARK,WR11

SN: 29005-UP

1шт.

35

41H-93-11230

PLATE, STRIPE

SN: 29150-UP

1шт.

35

41H-93-11180

PLATE, STRIPE

SN: 29005-29149

1шт.

36

41H-Z97-1130

PLATE, MARK

SN: 29005-UP

1шт.

37

09653-00100

PLATE, SAFETY,HYDRAULIC

SN: 29005-UP

1шт.

38

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

SN: 29005-UP

1шт.

38

04418-13060

SCREW

SN: 29005-UP

4шт.

39

423-93-11240

PLATE, CAUTION,KEEP OUT

SN: 29005-UP

1шт.

40

41H-93-11260

PLATE

SN: 30415-UP

1шт.
