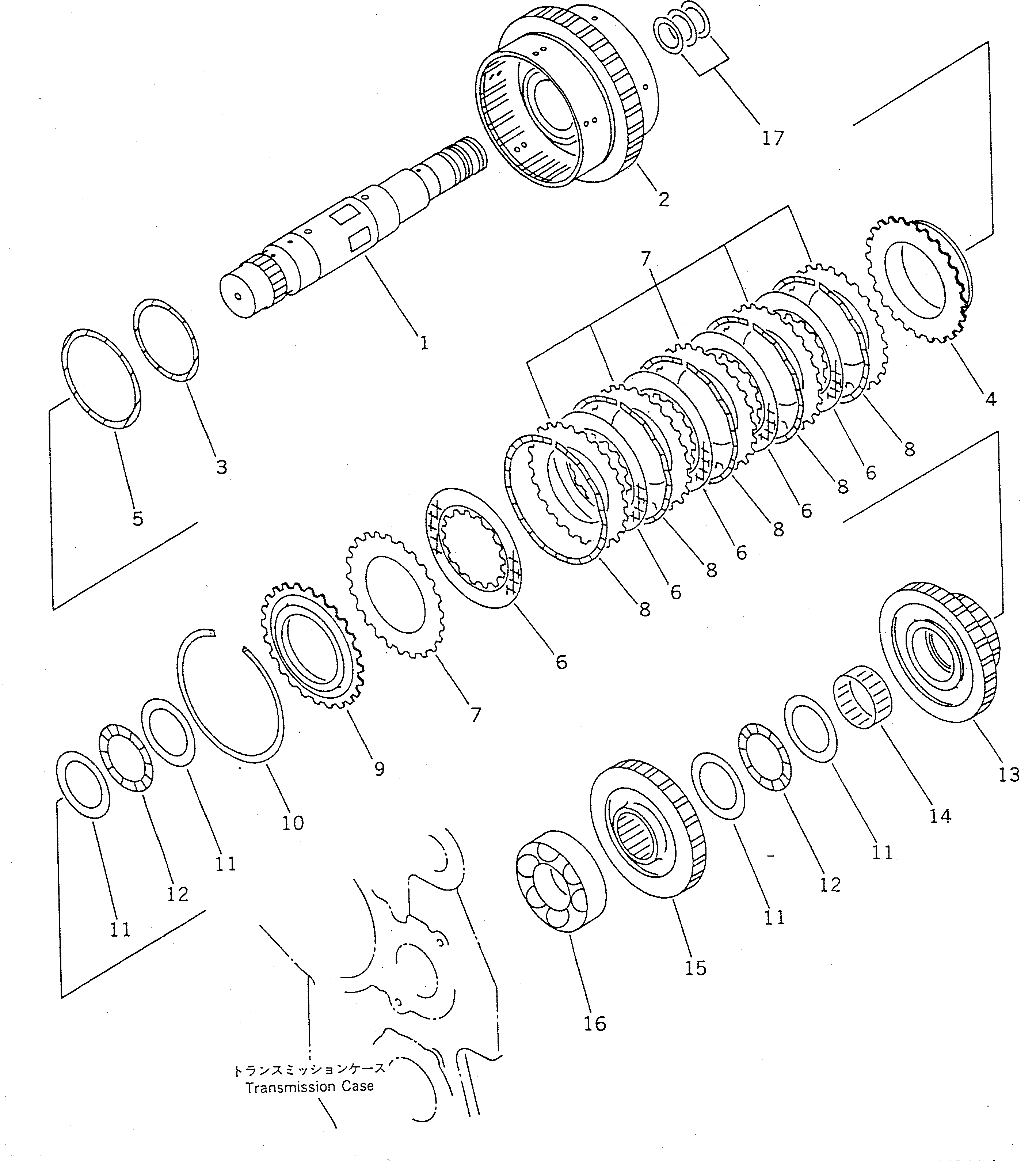

Запчасти Komatsu WR11-1 ТРАНСМИССИЯ (2 МУФТА) (/8) ТРАНСМИССИЯ

|$0

416-15-11082

TRANSMISSION ASS'Y

SN: 30001-UP

1шт.

|$1

416-15-11080

TRANSMISSION ASS'Y

SN: 29128-29999

1шт.

|$2

416-15-11002

TRANSMISSION ASS'Y

SN: 29005-29127

1шт.

|$3

416-15-13200

CLUTCH ASS'Y,2ND AND 3RD

SN: 29128-UP

1шт.

|$4

416-15-13130

CLUTCH ASS'Y,2ND AND 3RD

SN: 29005-29127

1шт.

|$5

416-15-13112

SHAFT ASS'Y

SN: 29005-UP

1шт.

1

0

SHAFT,2ND AND 3RD

SN: 29005-UP

1шт.

2

0

HOUSING,2ND AND 3RD

SN: 29005-UP

1шт.

3

419-15-12210

RING,SEAL (K1)

SN: 29005-UP

1шт.

4

419-15-13191

PISTON,2ND

SN: 29005-UP

1шт.

5

419-15-12580

RING,SEAL (K1)

SN: 29005-UP

1шт.

6

419-15-12290

DISC

SN: 29005-UP

5шт.

7

419-15-12310

PLATE,SEPARATE

SN: 29005-UP

6шт.

8

56D-15-12710

SPRING,WAVE

SN: 30428-UP

5шт.

8

0

SPRING,WAVE

SN: 29128-30427

5шт.

8

419-15-12132

SPRING,WAVE

SN: 29005-29127

5шт.

9

419-15-12280

PLATE,END

SN: 29005-UP

1шт.

10

419-15-12140

RING,SNAP

SN: 29005-UP

1шт.

11

419-15-12680

WASHER,THRUST

SN: 29005-UP

4шт.

12

419-15-12670

BEARING,THRUST

SN: 29005-UP

2шт.

13

417-15-13222

GEAR, 39 TEETH,2ND

SN: 29128-UP

1шт.

13

417-15-13221

GEAR,2ND

SN: 29005-29127

1шт.

14

419-15-13150

BEARING,NEEDLE

SN: 29005-UP

1шт.

15

416-15-13240

GEAR

SN: 29128-UP

1шт.

15

417-15-13242

GEAR, 27 TEETH

SN: 29005-29127

1шт.

16

06030-06312

BEARING

SN: 29005-UP

1шт.

17

419-15-12121

RING,SEAL (K1)

SN: 29005-UP

3шт.
