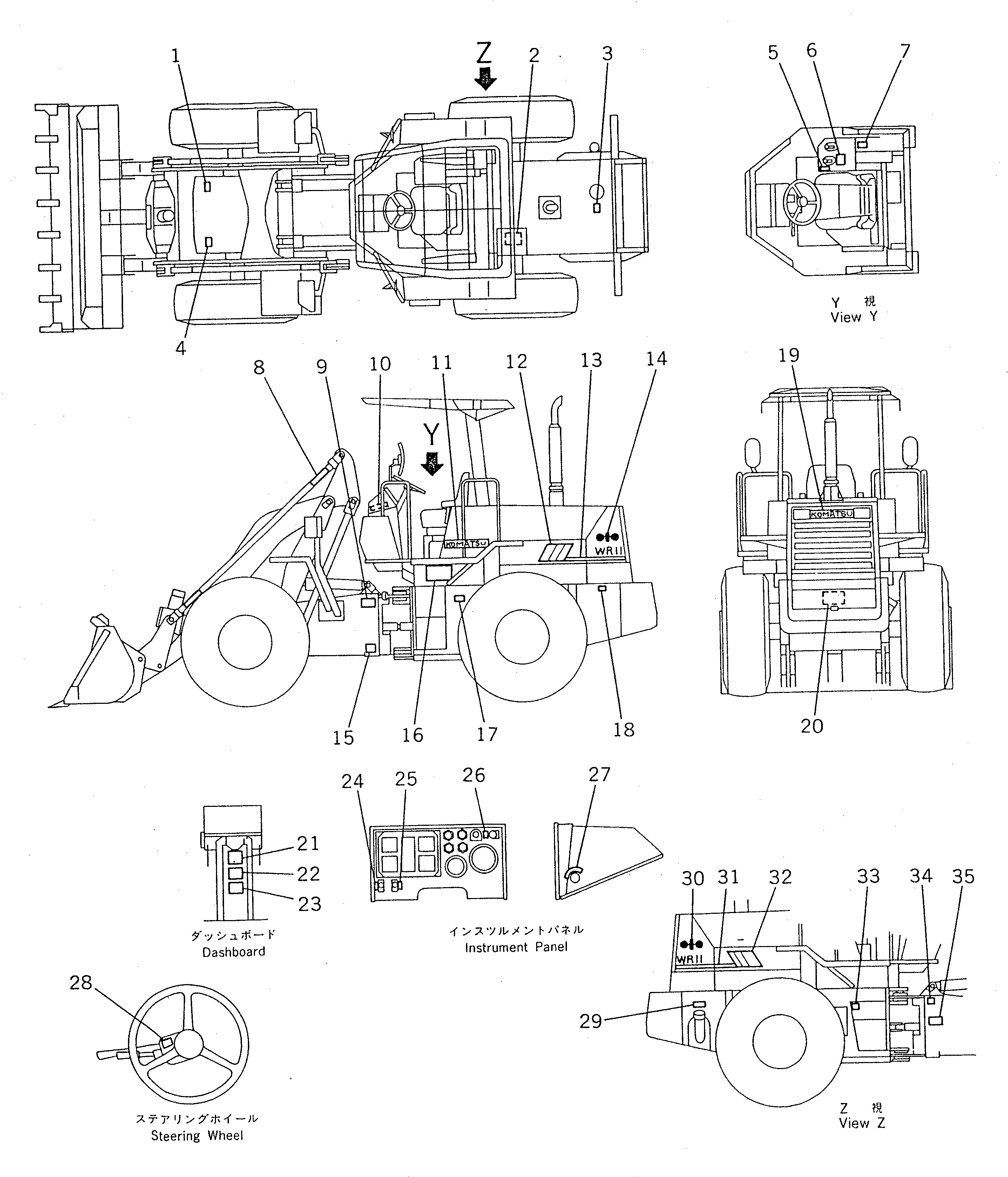

Запчасти Komatsu WR11-1 МАРКИРОВКА (АНГЛ.) (КРОМЕ ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 29005-UP

2шт.

2

09637-00161

PLATE, INSTRUCTION,AIR CLEANER

SN: 29005-UP

1шт.

3

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 29005-UP

1шт.

4

419-93-11680

PLATE, OPERATING,LIFTING EYE

SN: 29005-UP

2шт.

5

09685-00004

PLATE, OPERATING,LOCK LEVER

SN: 29005-UP

1шт.

6

41G-93-11130

PLATE, OPERATING,WORK EQUIPMENT

SN: 29005-UP

1шт.

7

419-93-11370

PLATE, CAUTION,BRAKE OIL

SN: 29005-UP

1шт.

8

41H-93-11190

PLATE, MARK

SN: 29005-UP

4шт.

9

416-93-11360

PLATE, CAUTION,KEEP OUT

SN: 29005-UP

1шт.

10

416-93-11313

PLATE,FUSE BOX

SN: 29005-UP

1шт.

11

417-93-11210

PLATE, MARK,KOMATSU

SN: 29005-UP

2шт.

12

41H-93-11160

PLATE, STRIPE,L.H.

SN: 29005-UP

1шт.

13

41H-93-11180

PLATE, STRIPE

SN: 29005-UP

1шт.

14

41H-93-11121

PLATE, MARK,WR11

SN: 29005-UP

1шт.

15

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 29005-UP

1шт.

16

41H-93-11510

CHART, OIL

SN: 29005-UP

1шт.

17

419-93-11340

PLATE, CAUTION,OIL INSPECTION

SN: 29005-UP

1шт.

18

362-54-27390

PLATE, CAUTION,FAN

SN: 29005-UP

1шт.

19

09690-50400

PLATE, MARK,KOMATSU

SN: 29005-UP

1шт.

20

416-93-11440

PLATE, CAUTION,BATTERY

SN: 29005-UP

1шт.

21

419-93-11320

PLATE, SAFETY

SN: 29005-UP

1шт.

22

419-93-11330

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 29005-UP

1шт.

23

362-98-12150

PLATE, CAUTION,STARTING AND OPERATING

SN: 29005-UP

1шт.

24

416-93-11280

PLATE, OPERATING,PARKING LAMP SWITCH

SN: 29005-UP

1шт.

25

416-93-11260

PLATE, OPERATING,WORKING LAMP SWITCH

SN: 29005-UP

1шт.

26

416-93-11240

PLATE, OPERATING,LIGHT SWITCH

SN: 29005-UP

1шт.

27

09683-30050

PLATE, OPERATING,STARTING SWITCH

SN: 29005-UP

1шт.

28

417-93-11131

PLATE, OPERATING,TRANSMISSION CONTROL

SN: 29005-UP

1шт.

29

09101-03000

PLATE, CAUTION,FUEL

SN: 29005-UP

1шт.

30

41H-93-11121

PLATE, MARK,WR11

SN: 29005-UP

1шт.

31

41H-93-11180

PLATE, STRIPE

SN: 29005-UP

1шт.

32

41H-93-11170

PLATE, STRIPE,R.H.

SN: 29005-UP

1шт.

33

09653-03000

PLATE, SAFETY,HYDRAULIC

SN: 29005-UP

1шт.

34

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

SN: 29005-UP

1шт.

34

04418-13060

SCREW

SN: 29005-UP

4шт.

35

416-93-11360

PLATE, CAUTION,KEEP OUT

SN: 29005-UP

1шт.
