Запчасти Komatsu WR11-1 КОМПЛЕКТ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

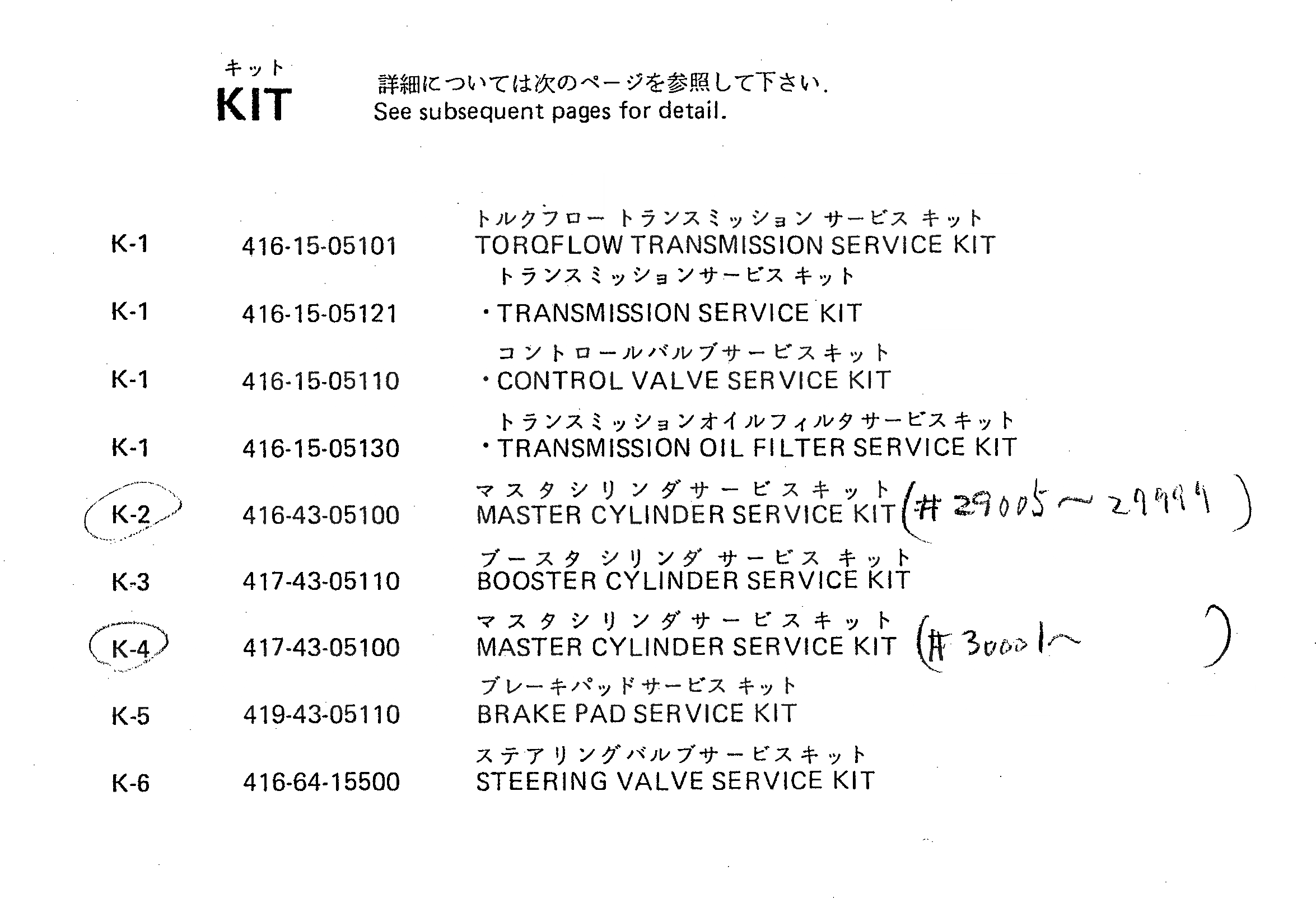

Схема запчастей Komatsu WR11-1 - КОМПЛЕКТ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

416-15-05101

SERVICE KIT,TRANSMISSION

SN: 29005-UP

1шт.

|1

416-15-05121

SERVICE KIT,TRANSMISSION

SN: 29005-UP

1шт.

|1

07018-31004

RING,SEAL¤ TORQUE CONVERTER SHAFT

SN: 29005-UP

1шт.

|1

424-13-11110

O-RING,TRANSMISSION CASE

SN: 29005-UP

1шт.

|1

07002-02434

O-RING,OIL DRAIN PLUG

SN: 29005-UP

1шт.

|1

07000-05200

O-RING,COVER

SN: 29005-UP

1шт.

|1

07002-02434

O-RING,SPEEDOMETER SLEEVE

SN: 29005-UP

1шт.

|1

07000-02075

O-RING,COVER

SN: 29005-UP

1шт.

|1

07000-02065

O-RING,FILTER

SN: 29005-UP

1шт.

|1

419-15-12210

RING,SEAL¤ FORWARD HOUSING

SN: 29005-UP

1шт.

|1

419-15-12190

RING,SEAL¤ FORWARD PISTON

SN: 29005-UP

1шт.

|1

419-15-12121

RING,SEAL¤ FORWARD AND REVERSE SHAF

SN: 29005-UP

4шт.

|1

419-15-12210

RING,SEAL¤ REVERSE HOUSING

SN: 29005-UP

1шт.

|1

419-15-12190

RING,SEAL¤ REVERSE PISTON

SN: 29005-UP

1шт.

|1

419-15-12210

RING,SEAL¤ 1ST HOUSING

SN: 29005-UP

1шт.

|1

419-15-12580

RING,SEAL¤ 1ST PISTON

SN: 29005-UP

1шт.

|1

419-15-12121

RING,SEAL¤ 1ST SHAFT

SN: 29005-UP

2шт.

|1

419-15-12210

RING,SEAL¤ 2ND HOUSING

SN: 29005-UP

1шт.

|1

419-15-12580

RING,SEAL¤ 2ND PISTON

SN: 29005-UP

1шт.

|1

419-15-12121

RING,SEAL¤ 2ND AND 3RD SHAFT

SN: 29005-UP

3шт.

|1

419-15-12210

RING,SEAL¤ 3RD HOUSING

SN: 29005-UP

1шт.

|1

419-15-12580

RING,SEAL¤ 3RD PISTON

SN: 29005-UP

1шт.

|1

417-15-13690

SEAL,OIL¤ OUTPUT SHAFT

SN: 29005-UP

2шт.

|1

07000-02105

O-RING,OUTPUT RETAINER

SN: 29005-UP

1шт.

|1

417-15-13790

O-RING,FRONT COUPLING

SN: 29005-UP

1шт.

|1

07000-02085

O-RING,FLANGE

SN: 29005-UP

1шт.

|1

07000-03028

O-RING,PIPING

SN: 29005-UP

3шт.

|1

07002-03334

O-RING,PIPING

SN: 29005-UP

2шт.

|1

07000-02085

O-RING,PUMP

SN: 29005-UP

1шт.

|1

419-15-18130

LIQUID GASKET,LIQUID

SN: 29005-UP

1шт.

|1

417-15-13810

SEAL,DUST¤ OUTPUT SHAFT

SN: 29005-UP

2шт.

|1

07002-02434

O-RING

SN: 29005-UP

1шт.

|1

416-15-05110

SERVICE KIT

SN: 29005-UP

1шт.

|1

07002-01023

O-RING,PLUG

SN: 29005-UP

4шт.

|1

417-15-15621

SEAL,OIL¤ SPOOL

SN: 29005-UP

2шт.

|1

415-15-15162

GASKET,COVER

SN: 29005-UP

1шт.

|1

415-15-15180

GASKET,COVER

SN: 29005-UP

1шт.

|1

07002-02034

O-RING,NEUTRAL SWITCH

SN: 29005-UP

1шт.

|1

421-06-16510

O-RING,SOLENOID VALVE

SN: 29005-UP

1шт.

|1

421-06-16520

O-RING,SOLENOID VALVE

SN: 29005-UP

1шт.

|1

415-15-15151

GASKET,VALVE

SN: 29005-UP

1шт.

|1

07002-02034

O-RING,BACK SWITCH

SN: 29005-UP

1шт.

|1

07002-03634

O-RING,PLUG

SN: 29005-UP

1шт.

|1

415-15-15320

GASKET,VALVE

SN: 29005-UP

1шт.

|1

07002-03034

O-RING,PLUG

SN: 29005-UP

1шт.

|1

415-15-15220

GASKET,VALVE

SN: 29005-UP

1шт.

|1

416-15-05130

SERVICE KIT

SN: 29005-UP

1шт.

|1

07002-01223

O-RING,OIL DRAIN PLUG

SN: 29005-UP

1шт.

|1

424-16-11130

O-RING,HEAD COVER

SN: 29005-UP

1шт.

|1

419-15-14860

O-RING,CENTER BOLT

SN: 29005-UP

1шт.

|1

419-15-14870

GASKET

SN: 29005-UP

1шт.

2

416-43-05100

SERVICE KIT,MASTER CYLINDER

SN: 29005-29999

1шт.

|2

416-43-17110

PISTON,SCONDERY

SN: 29005-29999

1шт.

|2

419-44-12510

PISTON,PRIMERY

SN: 29005-29999

1шт.

|2

419-44-12560

RING,SNAP

SN: 29005-29999

1шт.

|2

419-44-12520

PACKING

SN: 29005-29999

1шт.

|2

416-43-17120

COVER

SN: 29005-29999

1шт.

3

417-43-05110

SERVICE KIT,BOOSTER CYLINDER

SN: 30001-UP

1шт.

|3

417-43-17250

O-RING

SN: 30001-UP

1шт.

|3

417-43-17270

SEAL

SN: 30001-UP

1шт.

|3

417-43-17280

PLATE

SN: 30001-UP

1шт.

|3

417-43-17290

RING,SNAP

SN: 30001-UP

1шт.

|3

417-43-17320

O-RING

SN: 30001-UP

2шт.

|3

417-43-17330

RING,SNAP

SN: 30001-UP

1шт.

|3

417-43-17340

COVER,DUST

SN: 30001-UP

1шт.

4

417-43-05100

SERVICE KIT,MASTER CYLINDER

SN: 30001-UP

1шт.

|4

419-44-12510

PISTON

SN: 30001-UP

1шт.

|4

419-44-12520

PACKING

SN: 30001-UP

1шт.

|4

417-43-17120

PISTON

SN: 30001-UP

1шт.

|4

419-44-12560

RING,SNAP

SN: 30001-UP

1шт.

|4

417-43-17130

O-RING

SN: 30001-UP

1шт.

5

419-43-05110

BRAKE PAD ASS'Y

SN: 29005-UP

1шт.

|5

0

PAD

SN: 29005-UP

1шт.

|5

0

PAD

SN: 29005-UP

1шт.

|5

0

NUT

SN: 29005-UP

2шт.

|5

0

WASHER

SN: 29005-UP

2шт.

|5

0

PLATE,RETRACTION

SN: 29005-UP

1шт.

|5

0

WASHER

SN: 29005-UP

1шт.

6

416-64-15500

SERVICE KIT,STEERING VALVE

SN: 29005-UP

1шт.

|6

416-64-15520

O-RING

SN: 29005-UP

3шт.

|6

416-64-15450

O-RING

SN: 29005-UP

1шт.

|6

416-64-15430

O-RING

SN: 29005-UP

1шт.

|6

416-64-15570

O-RING

SN: 29005-UP

1шт.

|6

416-64-15590

RING,BACK-UP

SN: 29005-UP

1шт.

|6

416-64-15560

O-RING

SN: 29005-UP

1шт.

|6

416-64-15550

SEAL,DUST

SN: 29005-UP

1шт.

|6

417-64-15210

SEAL

SN: 29005-UP

1шт.

|6

417-64-15220

RING,BACK-UP

SN: 29005-UP

1шт.

|6

417-64-15230

O-RING

SN: 29005-UP

1шт.

Выбрано товаров: 89
