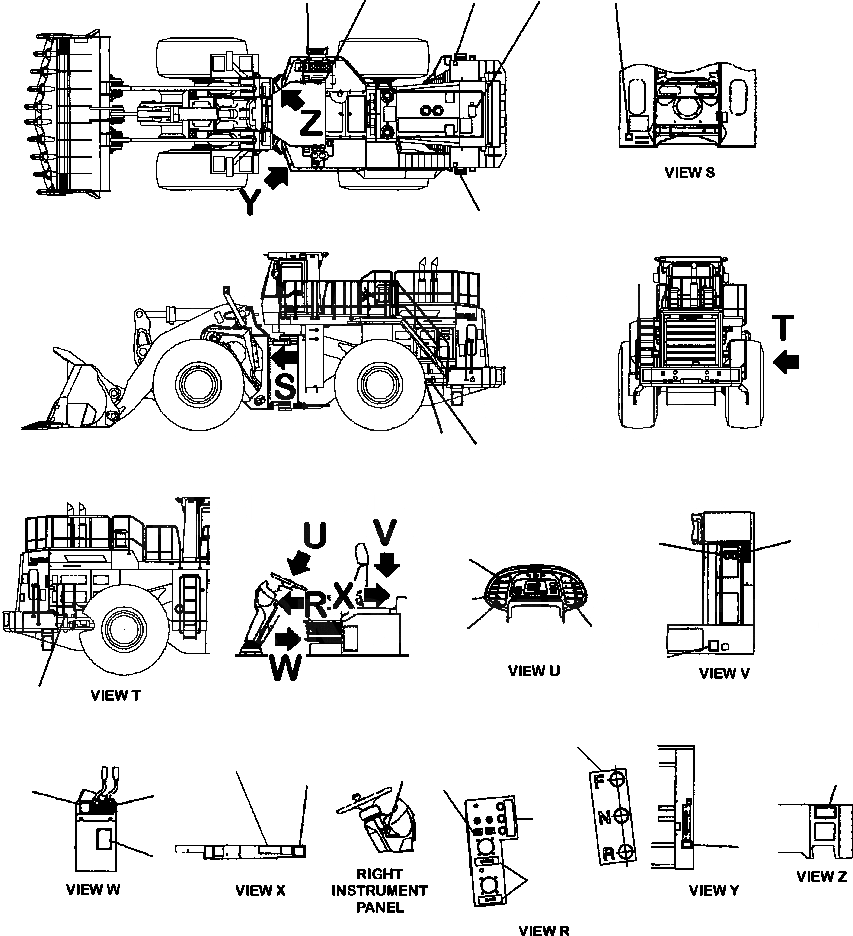

Запчасти Komatsu WA900-3LC U-A ПОЛ ТАБЛИЧКИS МАРКИРОВКА

|$0

427-93-A1143

PLATE KIT

SN: A50001--UP

1шт.

1

NSS

PLATE, SAFETY, BEFORE OPERATING

SN: A50001--UP

1шт.

2

NSS

PLATE, SAFETY, INSPECTION

SN: A50001--UP

1шт.

3

NSS

PLATE, SAFETY, WORK EQUIPMENT LEVER LOCK

SN: A50001--UP

1шт.

4

NSS

-1шт.

4

NSS

PLATE, NAME, FUSE

SN: A50001--UP

1шт.

5

NSS

PLATE, NAME, FUSE

SN: A50001--UP

1шт.

6

NSS

PLATE, NAME, RELAY

SN: A50001--UP

1шт.

7

NSS

PLATE, OPERATING, WORK EQUIPMENT LEVER

SN: A50001--UP

1шт.

8

NSS

PLATE, OPERATING, STARTING SWITCH

SN: A50001--UP

1шт.

9

NSS

PLATE, OPERATING

SN: A50001--UP

1шт.

|$11

421-93-21311

PLATE KIT

SN: A50001--UP

1шт.

10

NSS

PLATE, CAUTION, KEEP OUT

SN: A50001--UP

2шт.

11

NSS

PLATE, CAUTION, SAFETY BAR

SN: A50001--UP

1шт.

12

NSS

PLATE, SAFETY, RADIATOR CAP

SN: A50001--UP

1шт.

13

NSS

PLATE, SAFETY, HYDRAULIC TANK CAP

SN: A50001--UP

1шт.

14

NSS

PLATE, CAUTION, BATTERY CABLE

SN: A50001--UP

2шт.

15

NSS

PLATE, INSTRUCTION, FUEL

SN: A50001--UP

1шт.

16

NSS

PLATE, RADIATOR DRAIN

SN: A50001--UP

1шт.

17

NSS

PLATE, ENGINE OIL DRAIN

SN: A50001--UP

1шт.

|$20

7823-62-9063

PLATE KIT, MONITOR PANEL

SN: A50001--UP

1шт.

18

NSS

PLATE, NAME, MANUAL

SN: A50001--UP

1шт.

19

NSS

PLATE, NAME, LOW IDLE SELECT

SN: A50001--UP

1шт.

20

NSS

PLATE, NAME, GROUND DRIVEN STEERING

SN: A50001--UP

1шт.

21

NSS

PLATE, NAME, AUTO GREASE

SN: A50001--UP

1шт.

22

427-93-A1150

PLATE, ECM SWITCHES

SN: A50001--UP

1шт.

23

427-93-A1120

PLATE, DIAGNOSTIC CONNECT

SN: A50001--UP

1шт.

24

427-93-A2140

PLATE, ECM LAMP

SN: A50001--UP

1шт.

25

428-S33-A160

PLATE, JOYSTICK PRECAUTION

SN: A50001--UP

1шт.

26

209-00-71940

PLATE STEP LIGHT

SN: A50001--UP

1шт.

27

426-S33-2550

PLATE, F/N/R

SN: A50001--UP

1шт.
