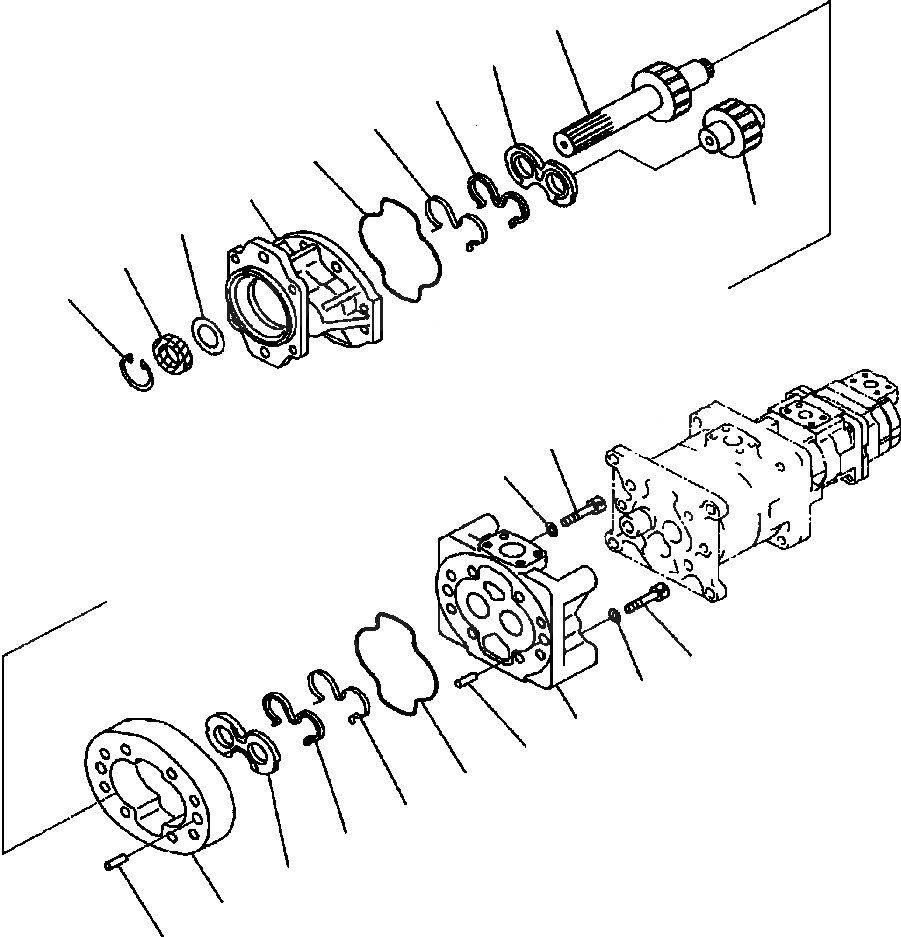

Запчасти Komatsu WA900-3LC H-A ГИДР. НАСОС. НАСОС ASSEMBLY ГИДРАВЛИКА

|$0

705-58-45010

PUMP ASSEMBLY (SAR4-112+3-100+1-32+1-14)

SN: A50001--UP

1шт.

2

-1шт.

|$2

705-32-41210

PUMP ASSEMBLY (SAR112)

SN: A50001--UP

1шт.

1

705-17-04021

BRACKET

SN: A50001--UP

1шт.

|$4

705-17-04352

BUSHING, PLANE

SN: A50001--UP

2шт.

2

705-18-41010

CASE, GEAR

SN: A50001--UP

1шт.

3

705-19-04240

CARRIER

SN: A50001--UP

1шт.

|$7

705-17-04352

BUSHING, PLANE

SN: A50001--UP

2шт.

4

04020-01842

PIN, DOWEL

SN: A50001--UP

4шт.

5

705-17-04381

O-RING

SN: A50001--UP

2шт.

6

705-29-41430

GEAR, DRIVE

SN: A50001--UP

1шт.

7

705-18-41510

GEAR, DRIVEN

SN: A50001--UP

1шт.

8

705-17-04611

PLATE, SIDE

SN: A50001--UP

2шт.

9

705-17-04440

RING, BACK-UP

SN: A50001--UP

2шт.

10

705-17-04470

RING, SEAL

SN: A50001--UP

2шт.

11

705-17-04640

BOLT

SN: A50001--UP

4шт.

12

705-17-04720

BOLT

SN: A50001--UP

4шт.

13

705-17-04980

WASHER

SN: A50001--UP

8шт.

14

705-17-04870

PLATE

SN: A50001--UP

1шт.

15

704-17-05810

SEAL, OIL

SN: A50001--UP

1шт.

16

04065-06220

RING, SNAP

SN: A50001--UP

1шт.
