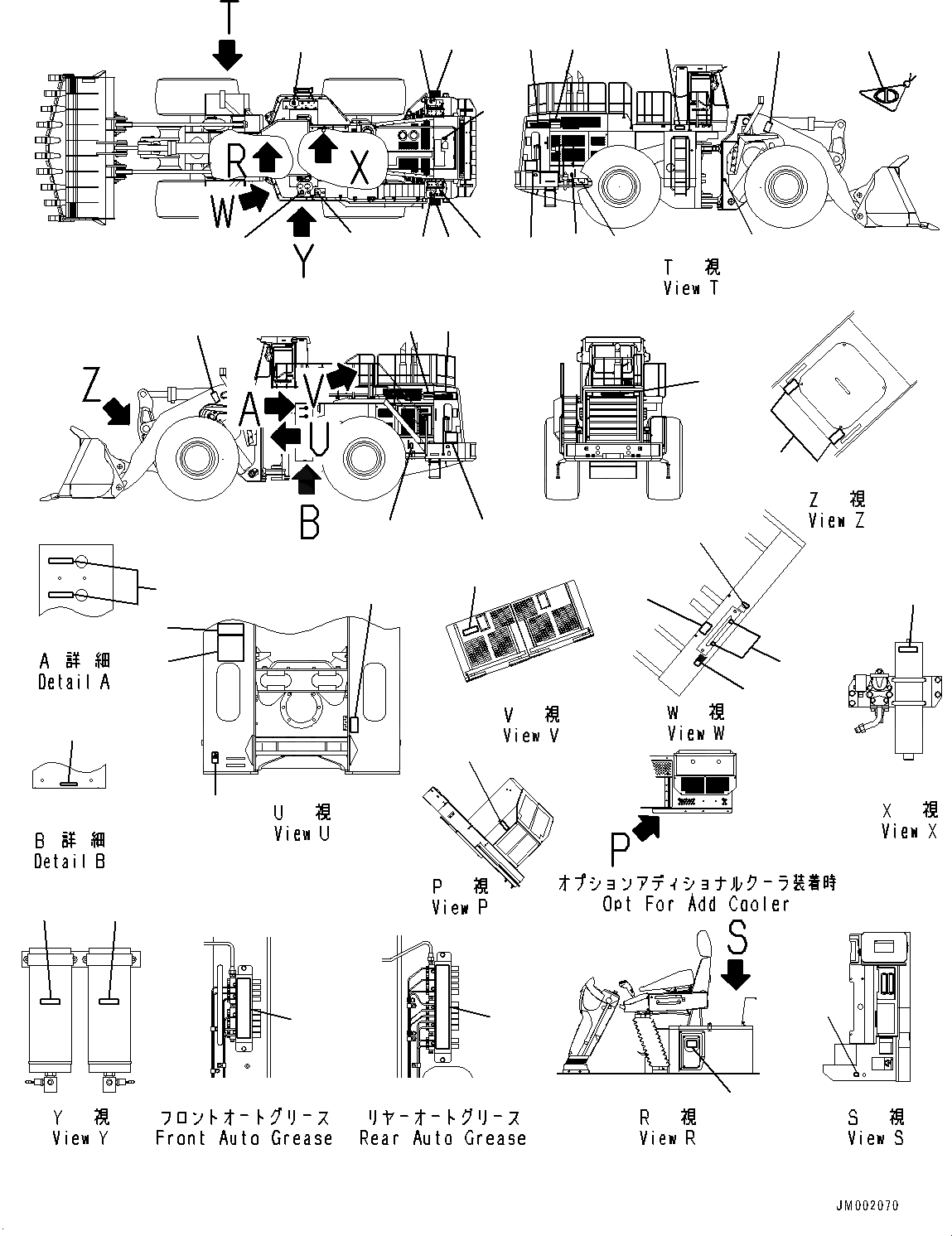

Запчасти Komatsu WA900-3E0 МАРКИРОВКА (№78-) МАРКИРОВКА, АНГЛ.

1

42C-93-11252

Plate, Transmission Oil Level, Oil Level

SN: 60078-UP

1шт.

2

428-93-11380

Plate, Fuel Cut Off

SN: 60078-UP

1шт.

3

427-93-22410

Oil Chart, English

SN: 60078-UP

1шт.

4

427-93-21570

Plate, Name, WA900

SN: 60078-UP

1шт.

5

427-93-21850

Plate, Line

SN: 60078-UP

2шт.

6

09659-A057B

Plate, Warning, Explosion Hazard

SN: 60078-UP

5шт.

7

426-93-11550

Plate, Caution

SN: 60078-UP

1шт.

8

427-93-21720

Plate, Auto-greasing

SN: 60078-UP

1шт.

9

09690-C0710

Plate, Komatsu Logo

SN: 60078-UP

1шт.

10

09601-00001

Plate, Name (Limited Supply)

SN: 60078-UP

1шт.

10

09601-99990

Plate, Name (Limited Supply)

SN: 60078-UP

1шт.

10

04418-13060

Screw

SN: 60078-UP

4шт.

11

427-93-21230

Plate, Air Cleaner Instruction

SN: 60078-UP

1шт.

12

09960-01601

Mark, Lift Point and Tie Down Point Marks

SN: 60078-UP

4шт.

13

09806-C1683

Plate, Danger, Keep Away from Machine

SN: 60078-UP

2шт.

14

09807-C1683

Plate, Danger, Keep Out under Work Equipment

SN: 60078-UP

2шт.

15

09811-03000

Plate, Warning, Brake Oil

SN: 60078-UP

1шт.

16

427-93-21560

Plate, WA900

SN: 60078-UP

1шт.

17

427-93-21281

Plate, Warning

SN: 60078-UP

2шт.

18

427-93-21270

Plate, Relay

SN: 60078-UP

1шт.

19

09669-0000A

Plate, Symbol, Coolant Filler

SN: 60078-UP

1шт.

20

09664-30000

Plate, Danger, Battery

SN: 60078-UP

4шт.

21

209-00-71940

Plate, Stairway Lamp, Step Light

SN: 60078-UP

1шт.

22

09963-A1640

Tag, Danger, Do Not Operate

SN: 60078-UP

1шт.

23

426-93-21570

Plate Assembly, Ladder

SN: 60078-UP

1шт.

24

427-93-21420

Plate, Emergency Ladder, Brake Oil Level

SN: 60078-UP

1шт.

25

427-93-21440

Plate, Brake Oil Level, Circuit

SN: 60078-UP

1шт.

26

427-S05-6790

Plate, Add. Cooler Grease

SN: 60104-UP

1шт.

27

427-S05-6810

Plate, Add. Cooler Grease

SN: 60104-UP

1шт.
