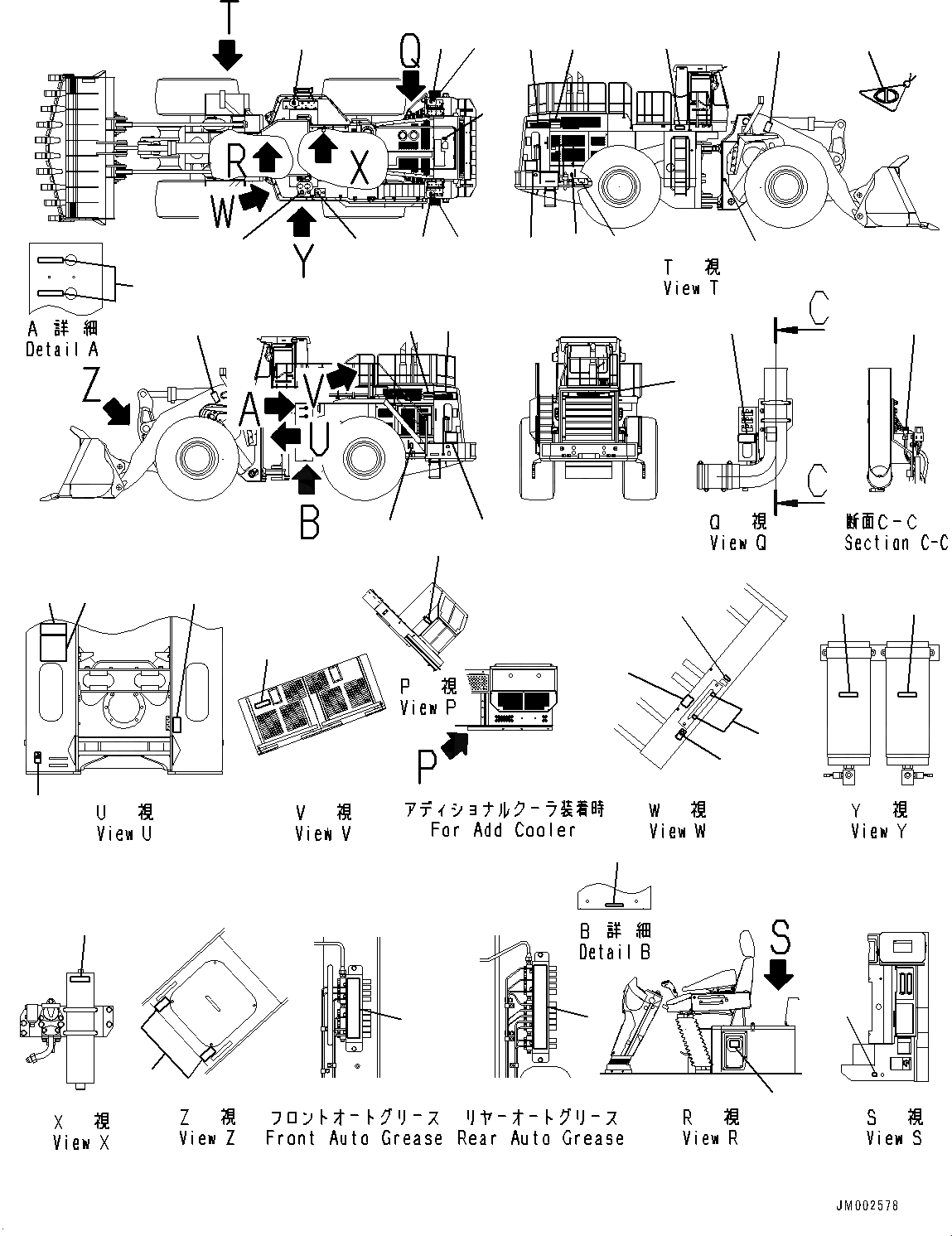

Запчасти Komatsu WA800-3E0 ТАБЛИЧКИ (№7-) ТАБЛИЧКИ, АНГЛ., ДЛЯ EXTRA BAD ТОПЛИВН. И ПЛОХ. ТОПЛИВО СПЕЦ-ЯIFICATION, ВОДН.+DUST, ДОПОЛН. ФИЛЬТР.

1

42C-93-11252

Plate, Transmission Oil Level

SN: 70030-UP

1шт.

2

428-93-11380

Plate, Fuel Cut Off

SN: 70030-UP

1шт.

3

427-93-22410

Oil Chart, English

SN: 70030-UP

1шт.

4

427-93-21890

Plate, Name

SN: 70030-UP

1шт.

5

427-93-21850

Plate, Line

SN: 70030-UP

2шт.

6

09659-A057B

Plate, Warning, Explosion Hazard

SN: 70030-UP

5шт.

7

426-93-11550

Plate, Caution

SN: 70030-UP

1шт.

8

427-93-21720

Plate, Auto-greasing

SN: 70030-UP

1шт.

9

09690-C0710

Plate, Komatsu Logo

SN: 70030-UP

1шт.

10

09601-10001

Plate, Name (Limited Supply)

SN: 70030-UP

1шт.

|$10

04418-13060

Screw

SN: 70030-UP

4шт.

11

427-93-21230

Plate, Air Cleaner Instruction, Air Cleaner

SN: 70030-UP

1шт.

12

09960-01601

Mark, Lift Point and Tie Down Point Marks

SN: 70030-UP

4шт.

13

09806-C1683

Plate, Danger, Keep Away from Machine

SN: 70030-UP

2шт.

14

09807-C1683

Plate, Danger, Keep Out under Work Equipment

SN: 70030-UP

2шт.

15

09811-03000

Plate, Warning, Brake Oil

SN: 70030-UP

1шт.

16

427-93-21880

Plate, Name

SN: 70030-UP

1шт.

17

427-93-21281

Plate, Warning

SN: 70030-UP

2шт.

18

427-93-21270

Plate, Relay

SN: 70030-UP

1шт.

19

09669-0000A

Plate, Symbol, Coolant Filler

SN: 70030-UP

1шт.

20

209-00-71940

Plate, Stairway Lamp, Step Light Switch

SN: 70030-UP

1шт.

21

09963-A1640

Tag, Danger, Do Not Operate

SN: 70030-UP

1шт.

22

426-93-21570

Plate Assembly

SN: 70030-UP

1шт.

23

427-93-21420

Plate, Emergency Ladder

SN: 70030-UP

1шт.

24

427-93-21440

Plate, Brake Oil Level

SN: 70030-UP

1шт.

25

6245-81-9410

Plate, Fuel Priming Pump Switch

SN: 70030-UP

1шт.

26

427-06-23410

Plate

SN: 70030-UP

1шт.

27

427-S05-6790

Plate, Add. Cooler Grease

SN: 70041-UP

1шт.

28

427-S05-6810

Plate, Add. Cooler Grease

SN: 70041-UP

1шт.
