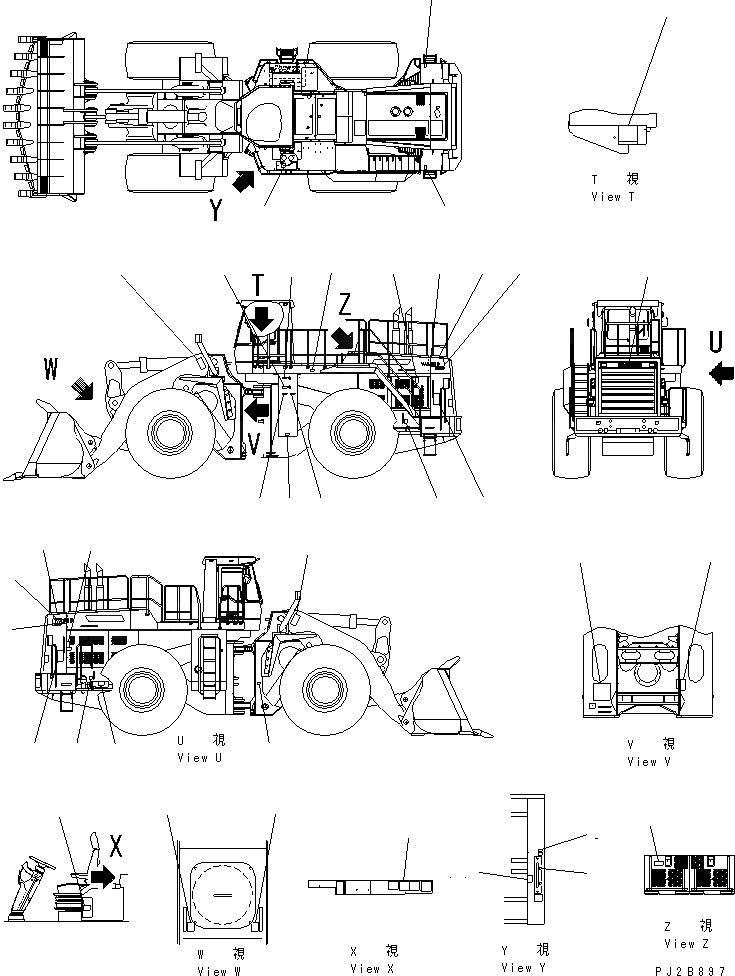

Запчасти Komatsu WA800-3 МАРКИРОВКА (АНГЛ.) (ДЛЯ N.AMERICA И AUSTRARIA W/O США) (ELEC. GOVENOR СПЕЦ-Я.)(№7-) МАРКИРОВКА

1

09667-A0880

PLATE, SAFETY,FAN

SN: 50007-UP

2шт.

2

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 50007-UP

1шт.

3

427-93-11410

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 50007-UP

1шт.

4

428-93-11380

PLATE, CAUTION,FUEL CUT

SN: 50007-UP

1шт.

5

427-93-21211

CHART, OIL

SN: 50042-UP

1шт.

5

427-93-21210

CHART, OIL

SN: 50007-50041

1шт.

6

427-93-11240

PLATE, MARK,WA800

SN: 50007-UP

2шт.

7

417-93-21220

PLATE, MARK,AVANCE

SN: 50007-UP

2шт.

8

09659-53000

PLATE, SAFETY,ACCUMULATOR

SN: 50007-UP

5шт.

9

426-93-11550

PLATE, CAUTION,INSTALL THE BUCKET

SN: 50007-UP

1шт.

10

427-93-11281

PLATE, OPERATING,REMOTE GREASE, FRONT

SN: 50007-UP

1шт.

11

427-93-11291

PLATE, OPERATING,REMOTE GREASE, REAR

SN: 50007-UP

1шт.

12

09690-C0710

PLATE, MARK,KOMATSU

SN: 50007-UP

1шт.

13

09601-00000

PLATE, NAME,(LIMITED SUPPLY)

SN: 50010-UP

1шт.

13

09601-00010

PLATE, NAME,(LIMITED SUPPLY)

SN: 50007-50009

1шт.

13

04418-13060

SCREW

SN: 50007-UP

4шт.

14

427-93-21230

PLATE, CAUTION,AIR CLEANER

SN: 50007-UP

1шт.

15

09960-01001

PLATE, MARK

SN: 50007-UP

4шт.

16

09812-03000

PLATE, SAFETY,KEEP A SAFE DISTANCE

SN: 50007-UP

2шт.

17

09807-C1680

PLATE, SAFETY,KEEP OUT

SN: 50007-UP

2шт.

18

09811-03000

PLATE, CAUTION,BRAKE OIL

SN: 50007-UP

1шт.

19

427-93-21710

PLATE, MARK

SN: 50019-UP

2шт.

19

427-93-21130

PLATE, MARK,FUSE

SN: 50007-50018

2шт.

20

427-93-21281

PLATE, WARNING,BATTERY BOX

SN: 50007-UP

2шт.

21

427-93-21241

PLATE, INSTRUCTION,BRAKE OIL LEVEL

SN: 50007-UP

1шт.

22

427-93-21251

PLATE, INSTRUCTION,BRAKE OIL LEVEL

SN: 50007-UP

1шт.

23

427-93-21260

PLATE,BRAKE OIL DRAIN

SN: 50007-UP

1шт.

24

427-93-21270

PLATE, NAME

SN: 50007-UP

1шт.

25

516-93-6A481

PLATE, SAFETY,EMERGENCY STOP

SN: 50007-UP

1шт.
