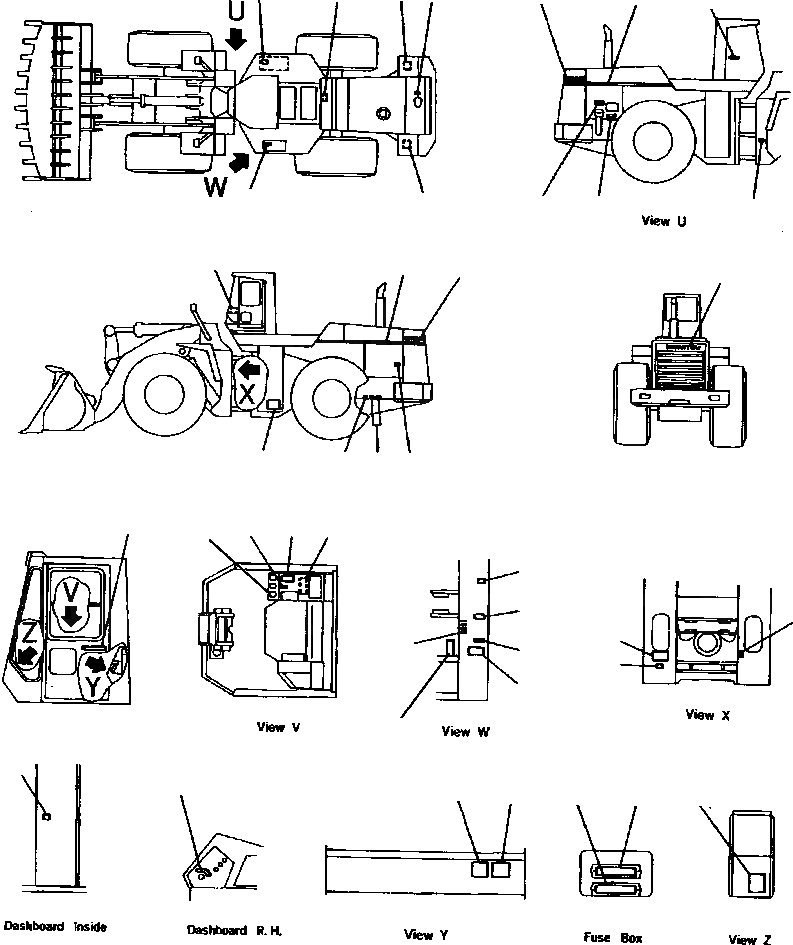

Запчасти Komatsu WA800-2L FIG NO. 98B МАРКИРОВКА МАРКИРОВКАS

1

09653-03000

PLATE, SAFETY, HYDRAULIC TANK

1шт.

2

09637-30161

PLATE, INSTRUCTION, AIR CLEANER

1шт.

3

427-93-11520

PLATE, CAUTION, BATTERY

1шт.

4

09668-03000

PLATE, SAFETY, RADIATOR CAP

1шт.

5

421-93-11690

PLATE, CAUTION, BRAKE OIL

1шт.

6

427-93-11520

PLATE, CAUTION, BATTERY

1шт.

7

427-93-11240

PLATE, MARK, WA800

1шт.

8

427-93-11250

PLATE, STRIPE

1шт.

9

09690-C0224

PLATE, MARK, KOMATSU

1шт.

10

09101-03000

PLATE, CAUTION, FUEL

1шт.

11

428-93-11380

PLATE, CAUTION, FUEL CUT

1шт.

12

20Y-00-A2112

PLATE, SERIAL, (LIMITED SUPPLY)

1шт.

|$12

04418-13060

SCREW

4шт.

13

425-93-11260

PLATE, OPERATING, MONITOR PANEL

1шт.

14

427-93-11250

PLATE, STRIPE

1шт.

15

427-93-11240

PLATE, MARK, WA800

1шт.

16

09152-03000

PLATE, SAFETY, AIR TANK, DRAIN

1шт.

17

421-93-11380

PLATE, CAUTION, ENGINE OIL DRAIN

1шт.

18

421-93-11970

PLATE, CAUTION, RADIATOR WATER DRAIN

2шт.

19

362-54-27390

PLATE, CAUTION, FAN

1шт.

20

09690-C0710

PLATE, MARK, KOMATSU

1шт.

21

09690-C0224

PLATE, MARK, KOMATSU

1шт.

22

09685-00003

PLATE, OPERATING, LEVER LOCK

1шт.

23

421-93-11132

PLATE, OPERATING, BUCKET CONTROL LEVER

1шт.

24

421-93-12240

PLATE, OPERATING, RELAY

1шт.

25

427-93-11291

PLATE, OPERATING, REMOTE GREASE, REAR

1шт.

26

426-93-11550

PLATE, CAUTION, INSTALL THE BUCKET

1шт.

27

427-93-11410

PLATE, CAUTION, TRANSMISSION OIL LEVEL

1шт.

28

427-93-11391

PLATE, CAUTION, TRANSMISSION OIL LEVEL

1шт.

29

423-93-11420

PLATE, CAUTION, KEEP OUT

1шт.

30

427-93-11475

CHART, OIL

1шт.

31

362-98-12160

PLATE, CAUTION, FRAME LOCK

1шт.

32

427-93-11281

PLATE, OPERATING, REMOTE GREASE, FRONT

1шт.

33

427-93-11510

PLATE, OPERATING, HEATER RELAY

1шт.

34

09683-30070

PLATE, OPERATING, STARTING SWITCH

1шт.

35

421-93-11940

PLATE, SAFETY - STARTING AND AFTER OPERATING

1шт.

36

362-98-12150

PLATE, CAUTION, INSPECTION

1шт.

37

427-93-11490

PLATE, OPERATING, BREAKER

1шт.

38

427-93-11480

PLATE, OPERATING, BREAKER

1шт.

39

419-93-11980

PLATE, CAUTION - TRANSMISSION OIL TEMPERATURE

1шт.

40

427-Z17-A110

DECAL, MECHANICAL ENGINE STOP

2шт.
