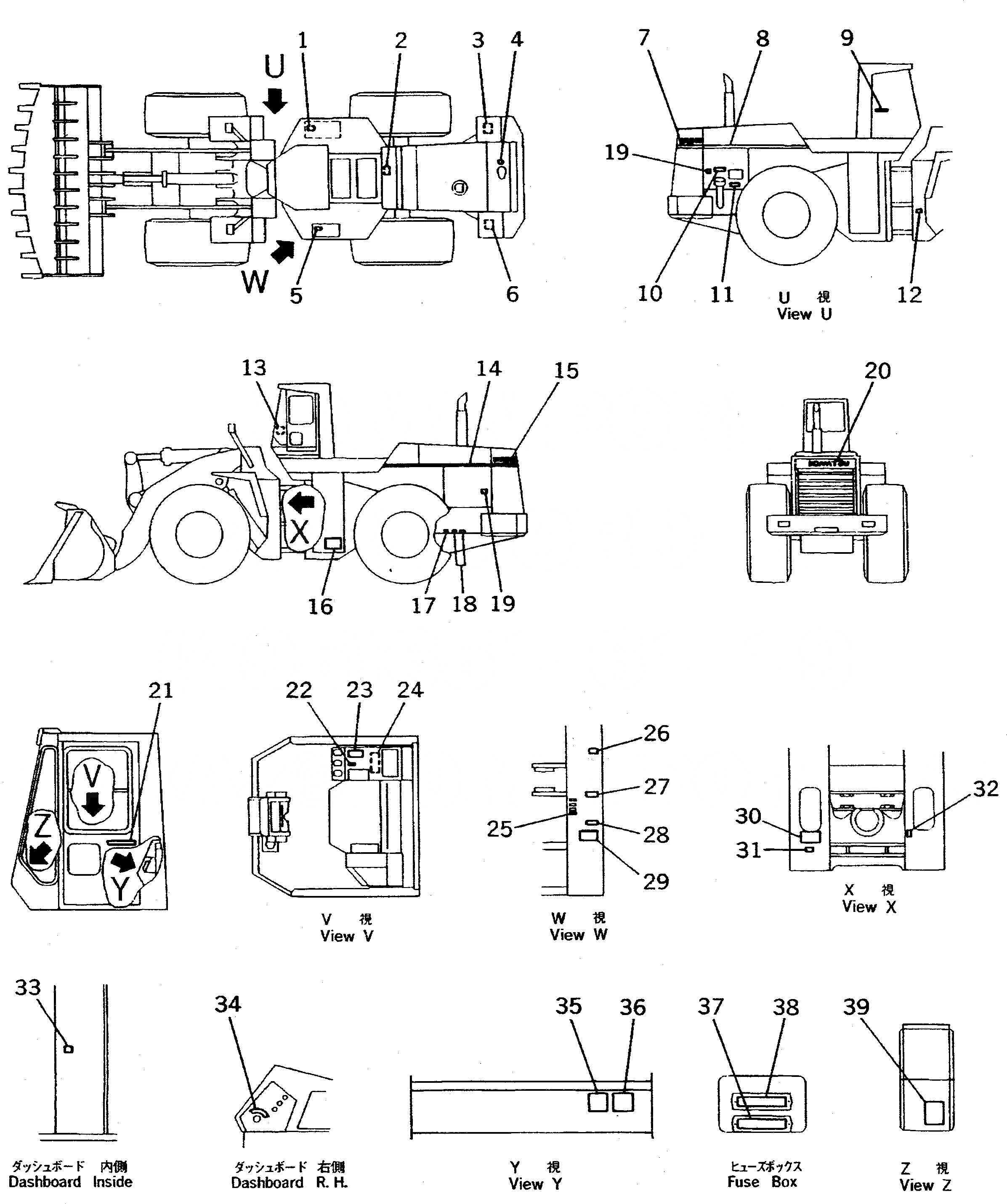

Запчасти Komatsu WA800-2 МАРКИРОВКА (ИСПАНИЯ)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-01000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

2

09637-70161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10001-UP

1шт.

3

427-V00-1470

PLATE, CAUTION,BATTERY

SN: 10501-UP

1шт.

4

09668-01000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

5

424-V00-1140

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

6

427-V00-1470

PLATE, CAUTION,BATTERY

SN: 10501-UP

1шт.

7

427-93-11240

PLATE, MARK,WA800

SN: 10621-UP

1шт.

8

427-93-11250

PLATE,STRIPE

SN: 10001-UP

1шт.

9

09690-C0224

PLATE, MARK,KOMATSU

SN: 10621-UP

1шт.

10

09101-01000

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

11

428-V00-1170

PLATE, CAUTION,FUEL CUT

SN: 10501-UP

1шт.

12

09601-10835

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

12

04418-13060

SCREW

SN: 10001-UP

4шт.

13

425-V00-1130

PLATE, OPERATING,MONITOR PANEL

SN: 10501-UP

1шт.

14

427-93-11250

PLATE,STRIPE

SN: 10001-UP

1шт.

15

427-93-11240

PLATE, MARK,WA800

SN: 10621-UP

1шт.

16

09152-01000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 10001-UP

1шт.

17

421-V00-1180

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-UP

1шт.

18

421-V00-1190

PLATE, CAUTION,RADIATOR WATER DRAIN

SN: 10501-UP

2шт.

19

419-V00-1140

PLATE, CAUTION,FAN

SN: 10501-UP

2шт.

20

09690-C0710

PLATE, MARK,KOMATSU

SN: 10621-UP

1шт.

21

09690-C0224

PLATE, MARK,KOMATSU

SN: 10621-UP

1шт.

22

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 10001-UP

1шт.

23

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 10001-UP

1шт.

24

421-V00-1220

PLATE, OPERATING,RELAY

SN: 10501-UP

1шт.

25

428-V00-1450

PLATE, OPERATING,REMOTE GREASE, REAR

SN: 10501-UP

1шт.

26

426-V00-1150

PLATE, CAUTION,INSTALL THE BUCKET

SN: 10001-UP

1шт.

27

428-V00-1120

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10501-UP

1шт.

28

428-V00-1130

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10501-UP

1шт.

29

419-V00-1230

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

30

427-V00-1460

CHART, OIL

SN: 10501-UP

1шт.

31

419-V00-1130

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

32

428-V00-1180

PLATE, OPERATING,REMOTE GREASE, FRONT

SN: 10501-UP

1шт.

33

427-V00-1530

PLATE, OPERATING,HEATER RELAY

SN: 10501-UP

1шт.

34

09683-11070

PLATE, OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

35

419-V00-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

36

419-V00-1120

PLATE, CAUTION,INSPECTION

SN: 10001-UP

1шт.

37

427-V00-1480

PLATE, OPERATING,BREAKER

SN: 10501-UP

1шт.

38

427-V00-1490

PLATE, OPERATING,BREAKER

SN: 10501-UP

1шт.

39

419-V00-1260

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.
