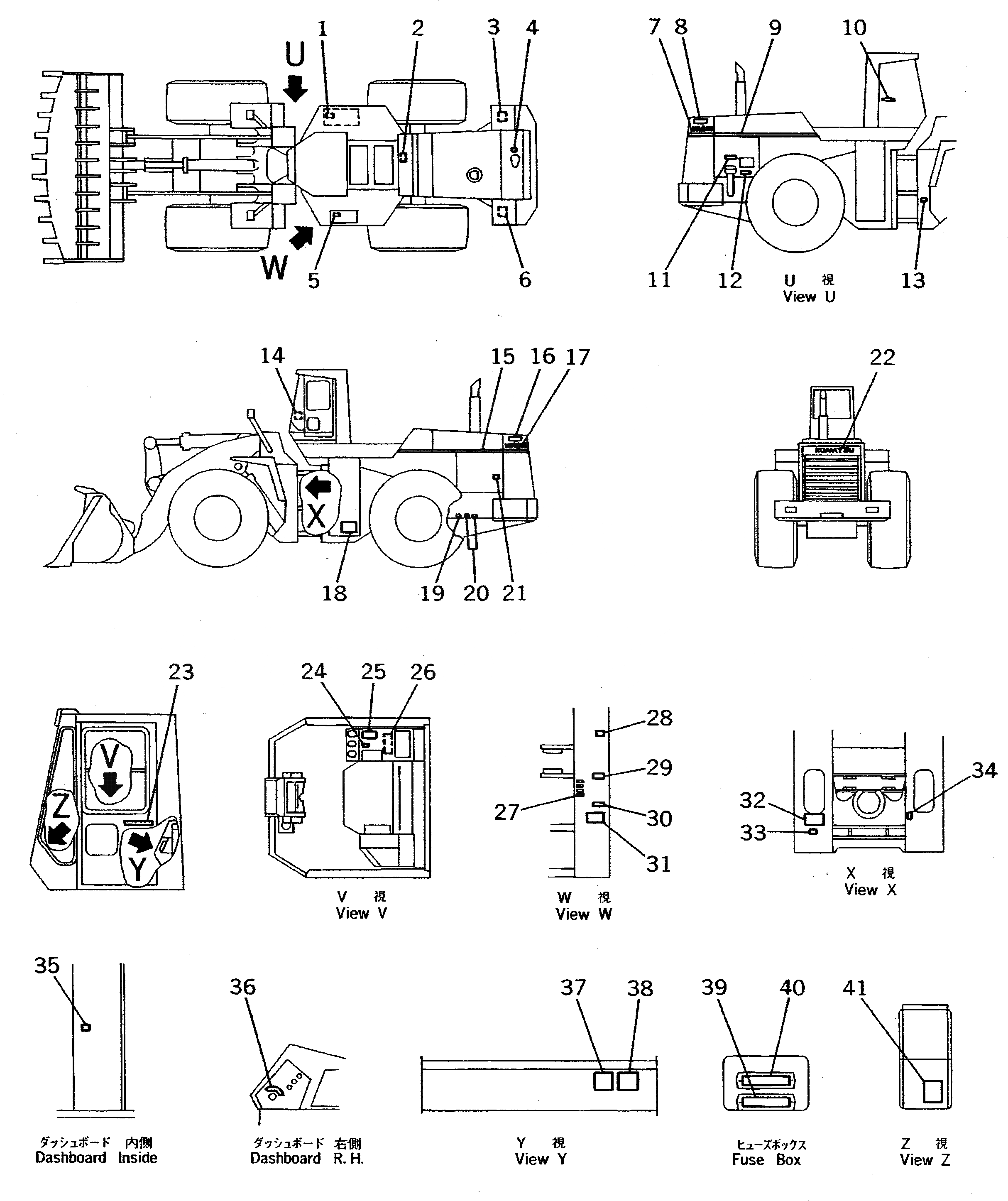

Запчасти Komatsu WA800-2 МАРКИРОВКА (ИНДОНЕЗИЯ)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-00500

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-@

1шт.

2

09637-05161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10001-@

1шт.

3

427-V02-1470

PLATE, CAUTION,BATTERY

SN: 10501-@

1шт.

4

09668-00500

PLATE, SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

5

426-V02-1240

PLATE, CAUTION,BRAKE OIL

SN: 10001-@

1шт.

6

427-V02-1470

PLATE, CAUTION,BATTERY

SN: 10501-@

1шт.

7

427-93-11150

PLATE, MARK,WA800

SN: 10001-10620

1шт.

8

09694-50355

PLATE, MARK,SYMBOL

SN: 10001-10620

1шт.

9

427-93-11250

PLATE,STRIPE

SN: 10001-@

1шт.

10

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-10620

1шт.

11

09101-00500

PLATE, CAUTION,FUEL

SN: 10001-@

1шт.

12

427-V02-1550

PLATE,FUEL CUT

SN: 10501-@

1шт.

13

09601-05835

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-@

1шт.

13

04418-13060

SCREW

SN: 10001-@

4шт.

14

427-V02-1540

PLATE, OPERATING,MONITOR PANEL

SN: 10501-@

1шт.

15

427-93-11250

PLATE,STRIPE

SN: 10001-@

1шт.

16

09694-50355

PLATE, MARK,SYMBOL

SN: 10001-10620

1шт.

17

427-93-11150

PLATE, MARK,WA800

SN: 10001-10620

1шт.

18

09152-00500

PLATE, SAFETY,AIR TANK, DRAIN

SN: 10501-@

1шт.

19

426-V02-1220

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-@

1шт.

20

426-V02-1230

PLATE, CAUTION,RADIATOR WATER DRAIN

SN: 10501-@

2шт.

21

419-V02-1140

PLATE, CAUTION,FAN

SN: 10001-@

1шт.

22

09690-50710

PLATE, MARK,KOMATSU

SN: 10001-10620

1шт.

23

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-10620

1шт.

24

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 10001-@

1шт.

25

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 10001-@

1шт.

26

427-V02-1450

PLATE, OPERATING,RELAY

SN: 10501-@

1шт.

27

427-V02-1310

PLATE, OPERATING,REMOTE GREASE, REAR

SN: 10001-@

1шт.

28

426-V02-1150

PLATE, CAUTION,INSTALL THE BUCKET

SN: 10001-@

1шт.

29

427-V02-1520

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10501-@

1шт.

30

427-V02-1510

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10501-@

1шт.

31

419-V02-1161

PLATE, CAUTION,KEEP OUT

SN: 10001-@

2шт.

32

427-V02-1461

CHART, OIL

SN: .-@

1шт.

32

427-V02-1460

CHART, OIL

SN: 10501-.

1шт.

33

419-V02-1130

PLATE, CAUTION,FRAME LOCK

SN: 10001-@

1шт.

34

427-V02-1291

PLATE, OPERATING,REMOTE GREASE, FRONT

SN: 10501-@

1шт.

35

427-V02-1530

PLATE, OPERATING,HEATER RELAY

SN: 10501-@

1шт.

36

09683-05070

PLATE, OPERATING,STARTING SWITCH

SN: 10001-@

1шт.

37

419-V02-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

38

419-V02-1120

PLATE, CAUTION,INSPECTION

SN: 10001-@

1шт.

39

427-V02-1480

PLATE, OPERATING,BREAKER

SN: 10501-@

1шт.

40

427-V02-1490

PLATE, OPERATING,BREAKER

SN: 10501-@

1шт.

41

419-V02-1190

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-@

1шт.
