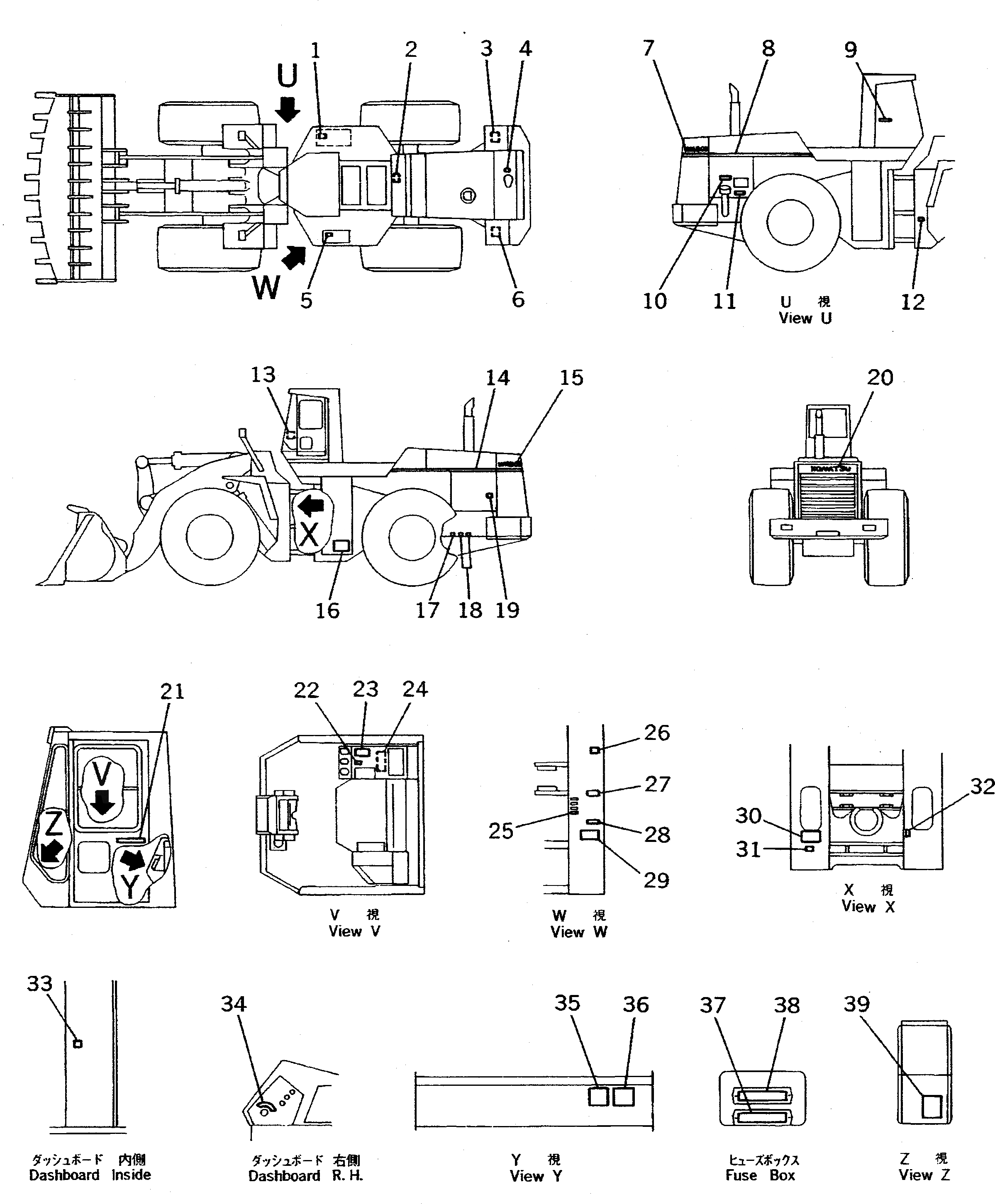

Запчасти Komatsu WA800-2 МАРКИРОВКА (АНГЛ.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

2

09637-30161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10001-UP

1шт.

3

427-93-11520

PLATE, CAUTION,BATTERY

SN: 10501-UP

1шт.

4

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

5

421-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

6

427-93-11520

PLATE, CAUTION,BATTERY

SN: 10501-UP

1шт.

7

427-93-11240

PLATE, MARK,WA800

SN: 10621-UP

1шт.

8

427-93-11250

PLATE,STRIPE

SN: 10001-UP

1шт.

9

09690-C0224

PLATE, MARK,KOMATSU

SN: 10621-UP

1шт.

10

09101-03000

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

11

428-93-11380

PLATE, CAUTION,FUEL CUT

SN: 10501-UP

1шт.

12

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

12

04418-13060

SCREW

SN: 10001-UP

4шт.

13

425-93-11260

PLATE, OPERATING,MONITOR PANEL

SN: 10501-UP

1шт.

14

427-93-11250

PLATE,STRIPE

SN: 10001-UP

1шт.

15

427-93-11240

PLATE, MARK,WA800

SN: 10621-UP

1шт.

16

09152-03000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 10501-UP

1шт.

17

421-93-11380

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-UP

1шт.

18

421-93-11970

PLATE, CAUTION,RADIATOR WATER DRAIN

SN: 10501-UP

2шт.

19

362-54-27390

PLATE, CAUTION,FAN

SN: 10001-UP

1шт.

20

09690-C0710

PLATE, MARK,KOMATSU

SN: 10621-UP

1шт.

21

09690-C0224

PLATE, MARK,KOMATSU

SN: 10621-UP

1шт.

22

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 10001-UP

1шт.

23

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 10001-UP

1шт.

24

421-93-12240

PLATE, OPERATING,RELAY

SN: 10501-UP

1шт.

25

427-93-11291

PLATE, OPERATING,REMOTE GREASE, REAR

SN: 10501-UP

1шт.

26

426-93-11550

PLATE, CAUTION,INSTALL THE BUCKET

SN: 10001-UP

1шт.

27

427-93-11410

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-UP

1шт.

28

427-93-11391

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10501-UP

1шт.

29

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

1шт.

30

427-93-11474

CHART, OIL

SN: .-UP

1шт.

30

427-93-11473

CHART, OIL

SN: 10540-.

1шт.

31

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

32

427-93-11281

PLATE, OPERATING,REMOTE GREASE, FRONT

SN: 10001-UP

1шт.

33

427-93-11510

PLATE, OPERATING,HEATER RELAY

SN: 10501-UP

1шт.

34

09683-30070

PLATE, OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

35

421-93-11940

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

36

362-98-12150

PLATE, CAUTION,INSPECTION

SN: 10001-UP

1шт.

37

427-93-11490

PLATE, OPERATING,BREAKER

SN: 10501-UP

1шт.

38

427-93-11480

PLATE, OPERATING,BREAKER

SN: 10501-UP

1шт.

39

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.
