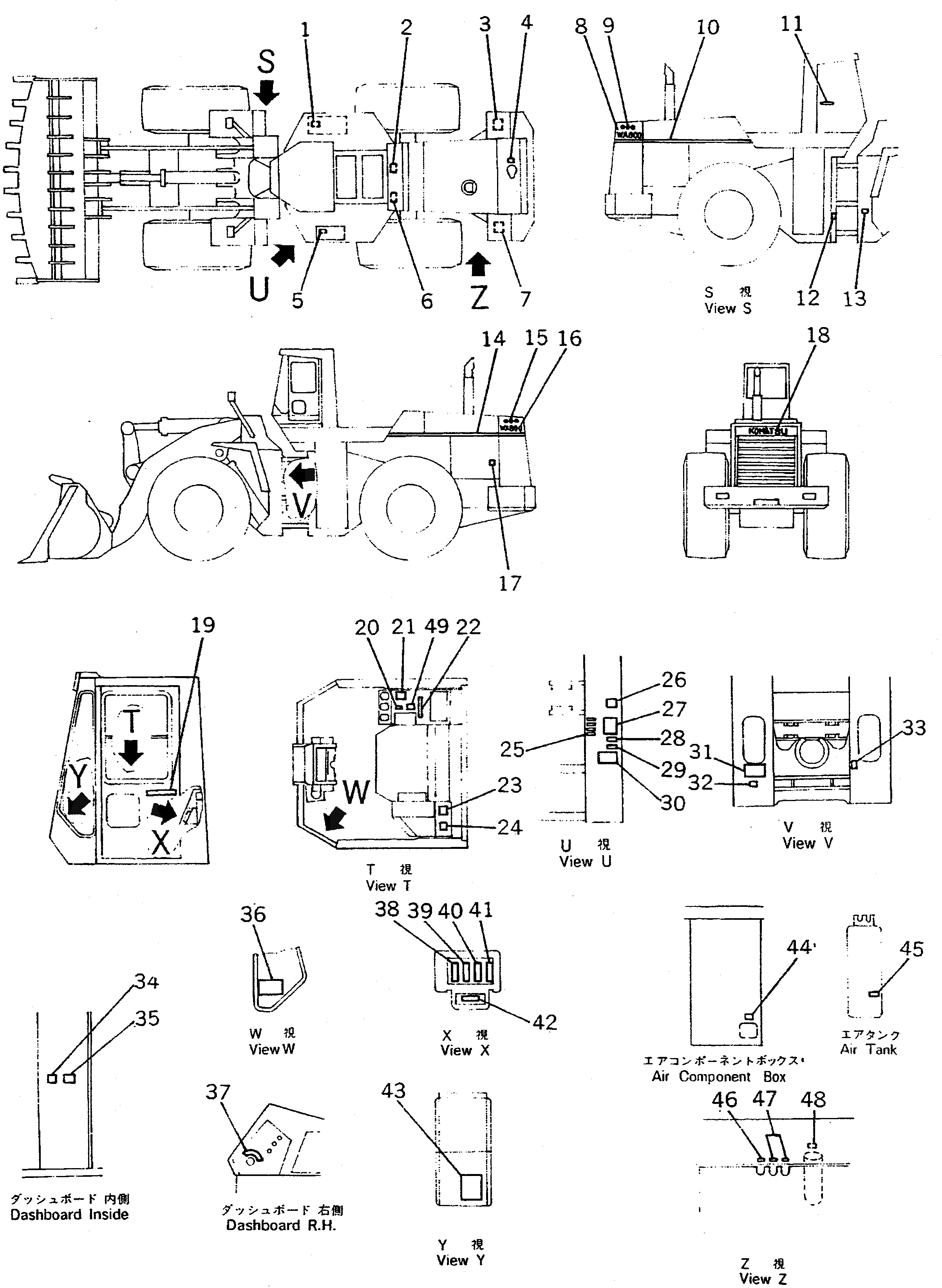

Запчасти Komatsu WA800-1 МАРКИРОВКА (ЯПОН.)(№-9) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 10001-@

1шт.

2

427-93-11380

PLATE¤ INSTRUCTION,AIR CLEANER

SN: 10001-@

1шт.

3

427-93-11140

PLATE¤ CAUTION,BATTERY

SN: 10001-@

1шт.

4

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

5

424-93-11280

PLATE¤ CAUTION,BRAKE OIL

SN: 10001-@

1шт.

6

423-93-11180

PLATE¤ OPERATING,AIR DRYER

SN: 10001-@

1шт.

7

427-93-11140

PLATE¤ CAUTION,BATTERY

SN: 10001-@

1шт.

8

427-93-11150

PLATE¤ MARK,WA800

SN: 10001-@

1шт.

9

09694-50355

PLATE¤ MARK,SYMBOL

SN: 10001-@

1шт.

10

427-93-11250

PLATE,STRIPE

SN: 10001-@

1шт.

11

09690-50280

PLATE¤ MARK,KOMATSU

SN: 10001-@

1шт.

12

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-@

1шт.

13

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-@

1шт.

|13

04418-13060

SCREW

SN: 10001-@

4шт.

14

427-93-11250

PLATE,STRIPE

SN: 10001-@

1шт.

15

09694-50355

PLATE¤ MARK,SYMBOL

SN: 10001-@

1шт.

16

427-93-11150

PLATE¤ MARK,WA800

SN: 10001-@

1шт.

17

362-54-17180

PLATE¤ CAUTION,FAN

SN: 10001-@

2шт.

18

09690-50710

PLATE¤ MARK,KOMATSU

SN: 10001-@

1шт.

19

09690-50280

PLATE¤ MARK,KOMATSU

SN: 10001-@

1шт.

20

09685-00003

PLATE¤ OPERATING,LEVER LOCK

SN: 10001-@

1шт.

21

421-93-11132

PLATE¤ OPERATING,BUCKET CONTROL LEVER

SN: 10001-@

1шт.

22

423-93-11250

PLATE¤ OPERATING,RELAY

SN: 10001-@

1шт.

23

421-93-11181

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

24

424-93-11320

PLATE¤ CAUTION,INSPECTION

SN: 10001-@

1шт.

25

427-93-11180

PLATE¤ OPERATING,REMOTE GREASE¤ REAR

SN: 10001-@

1шт.

26

427-93-11190

PLATE¤ CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-10059

1шт.

27

427-93-11160

PLATE¤ DATA

SN: 10001-@

1шт.

28

362-54-17230

PLATE¤ CAUTION,HOSE CHANGE

SN: 10001-@

1шт.

29

426-93-11320

PLATE¤ CAUTION,INSTALL THE BUCKET

SN: 10001-@

1шт.

30

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-@

1шт.

31

427-93-11260

CHART¤ OIL

SN: 10001-@

1шт.

32

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-@

1шт.

33

427-93-11170

PLATE¤ OPERATING,REMOTE GREASE¤ FRONT

SN: 10001-@

1шт.

34

427-93-11210

PLATE¤ OPERATING,ENGINE STOP MOTOR RELAY

SN: 10001-@

1шт.

35

427-93-11220

PLATE¤ OPERATING,WORK LAMP RELAY

SN: 10001-@

1шт.

36

426-93-11170

PLATE¤ OPERATING,MONITOR PANEL

SN: 10001-@

1шт.

37

09683-30070

PLATE¤ OPERATING,STARTING SWITCH

SN: 10001-@

1шт.

38

421-93-11460

PLATE¤ OPERATING,BREAKER

SN: 10001-@

1шт.

39

426-93-11160

PLATE¤ OPERATING,BREAKER

SN: 10001-@

1шт.

40

426-93-11150

PLATE¤ OPERATING,BREAKER

SN: 10001-@

1шт.

41

421-93-11490

PLATE¤ OPERATING,BREAKER

SN: 10001-@

1шт.

42

427-93-11230

PLATE¤ OPERATING,BREAKER

SN: 10001-@

1шт.

43

419-93-11890

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-@

1шт.

|43

0

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: (10001-10003)

1шт.

44

09152-00100

PLATE¤ SAFETY,AIR TANK¤ DRAIN

SN: 10001-@

1шт.

45

424-93-11120

PLATE¤ CAUTION,AIR TANK¤ PRESSURE

SN: 10001-@

4шт.

46

421-93-11350

PLATE¤ INSTRUCTION,ENGINE OIL DRAIN

SN: 10001-@

1шт.

47

421-93-11810

PLATE¤ INSTRUCTION,RADIATOR WATER DRAIN

SN: 10001-@

2шт.

48

09101-00100

PLATE¤ INSTRUCTION,FUEL

SN: 10001-@

1шт.

49

426-93-11730

PLATE¤ OPERATING,ENGINE OIL PRESSURE RELAY

SN: 10001-@

1шт.
