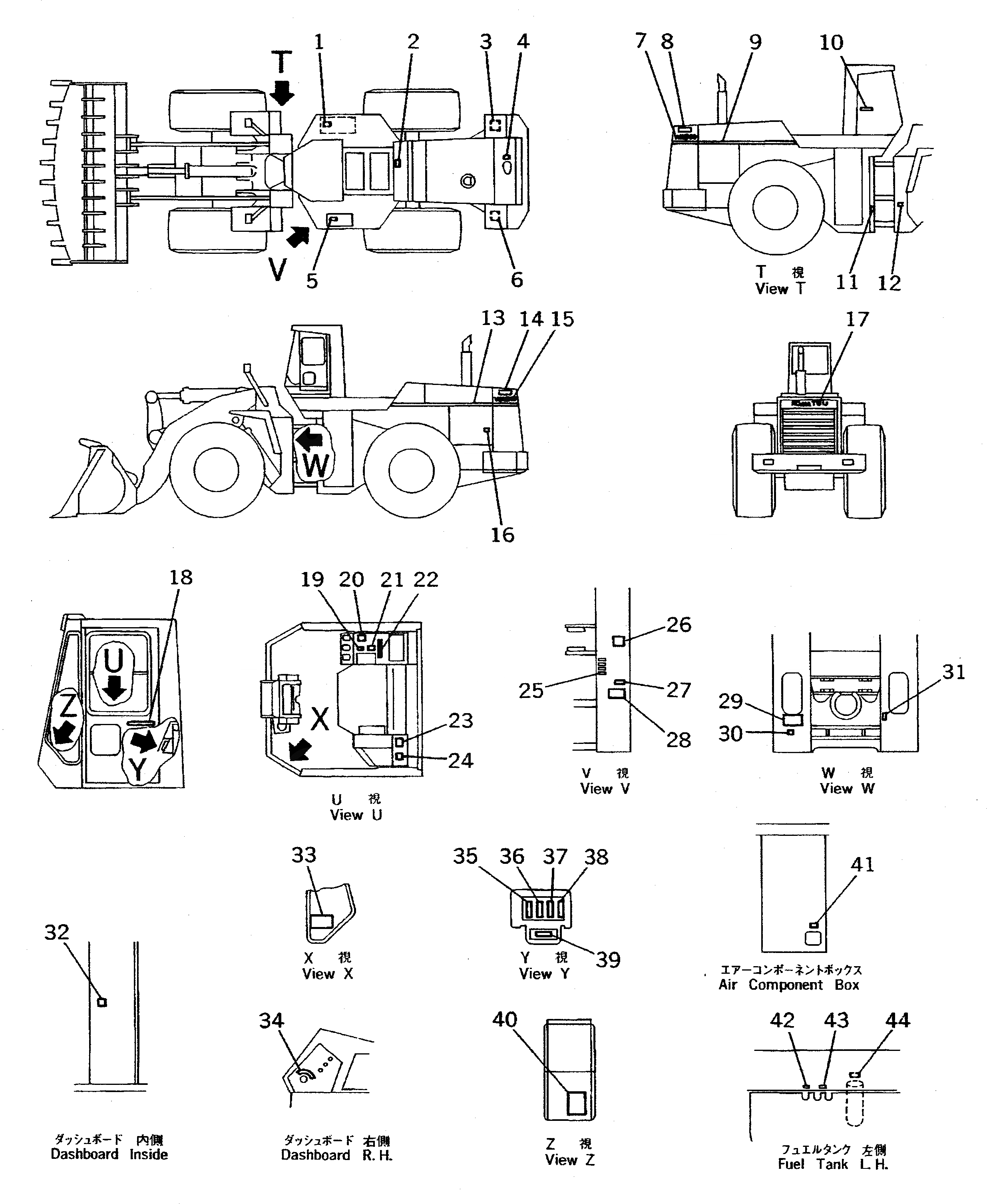

Запчасти Komatsu WA800-1 МАРКИРОВКА (АНГЛ.)(№-99) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-03000

PLATE, SAFETY,HYDRAULIC TANK

SN: 10001-@

1шт.

2

09637-30161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10001-@

1шт.

3

427-93-11270

PLATE, CAUTION,BATTERY

SN: 10001-10499

1шт.

4

09668-03000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

5

421-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-@

1шт.

6

427-93-11270

PLATE, CAUTION,BATTERY

SN: 10001-10499

1шт.

7

427-93-11150

PLATE, MARK,WA800

SN: 10001-@

1шт.

8

09694-50355

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

9

427-93-11250

PLATE,STRIPE

SN: 10001-@

1шт.

10

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

11

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: 10001-@

1шт.

12

09601-00835

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-@

1шт.

12

04418-13060

SCREW

SN: 10001-@

4шт.

13

427-93-11250

PLATE,STRIPE

SN: 10001-@

1шт.

14

09694-50355

PLATE, MARK,SYMBOL

SN: 10001-@

1шт.

15

427-93-11150

PLATE, MARK,WA800

SN: 10001-@

1шт.

16

362-54-27390

PLATE, CAUTION,FAN

SN: 10001-@

1шт.

17

09690-50710

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

18

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

19

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 10001-@

1шт.

20

421-93-11132

PLATE, OPERATING,BUCKET CONTROL LEVER

SN: 10001-@

1шт.

21

426-93-11740

PLATE, OPERATING,ENGINE OIL PRESSURE RELAY

SN: 10001-@

1шт.

22

425-93-11330

PLATE, OPERATING,RELAY

SN: 10001-@

1шт.

23

421-93-11940

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

24

362-98-12150

PLATE, CAUTION,INSPECTION

SN: 10001-@

1шт.

25

427-93-11290

PLATE, OPERATING,REMOTE GREASE, REAR

SN: 10001-10499

1шт.

26

427-93-11410

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 10001-@

1шт.

27

426-93-11550

PLATE, CAUTION,INSTALL THE BUCKET

SN: 10001-@

1шт.

28

423-93-11420

PLATE, CAUTION,KEEP OUT

SN: 10001-@

1шт.

29

427-93-11360

CHART, OIL

SN: 10001-10499

1шт.

30

362-98-12160

PLATE, CAUTION,FRAME LOCK

SN: 10001-@

1шт.

31

427-93-11281

PLATE, OPERATING,REMOTE GREASE, FRONT

SN: 10001-@

1шт.

32

427-93-11320

PLATE, OPERATING,ENGINE STOP MOTOR RELAY

SN: 10001-10499

1шт.

33

426-93-11540

PLATE, OPERATING,MONITOR PANEL

SN: 10001-10499

1шт.

34

09683-30070

PLATE, OPERATING,STARTING SWITCH

SN: 10001-@

1шт.

35

421-93-11640

PLATE, OPERATING,BREAKER

SN: 10001-@

1шт.

36

426-93-11530

PLATE, OPERATING,BREAKER

SN: 10001-@

1шт.

37

426-93-11520

PLATE, OPERATING,BREAKER

SN: 10001-@

1шт.

38

421-93-11670

PLATE, OPERATING,BREAKER

SN: 10001-@

1шт.

39

427-93-11340

PLATE, OPERATING,BREAKER

SN: 10001-@

1шт.

40

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-@

1шт.

40

0

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: (10001-.)

1шт.

41

09152-03000

PLATE, SAFETY,AIR TANK, DRAIN

SN: 10001-@

1шт.

42

421-93-11380

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-@

1шт.

43

421-93-11970

PLATE, CAUTION,RADIATOR WATER DRAIN

SN: 10001-10499

1шт.

44

09101-03000

PLATE, CAUTION,FUEL

SN: 10001-@

1шт.
