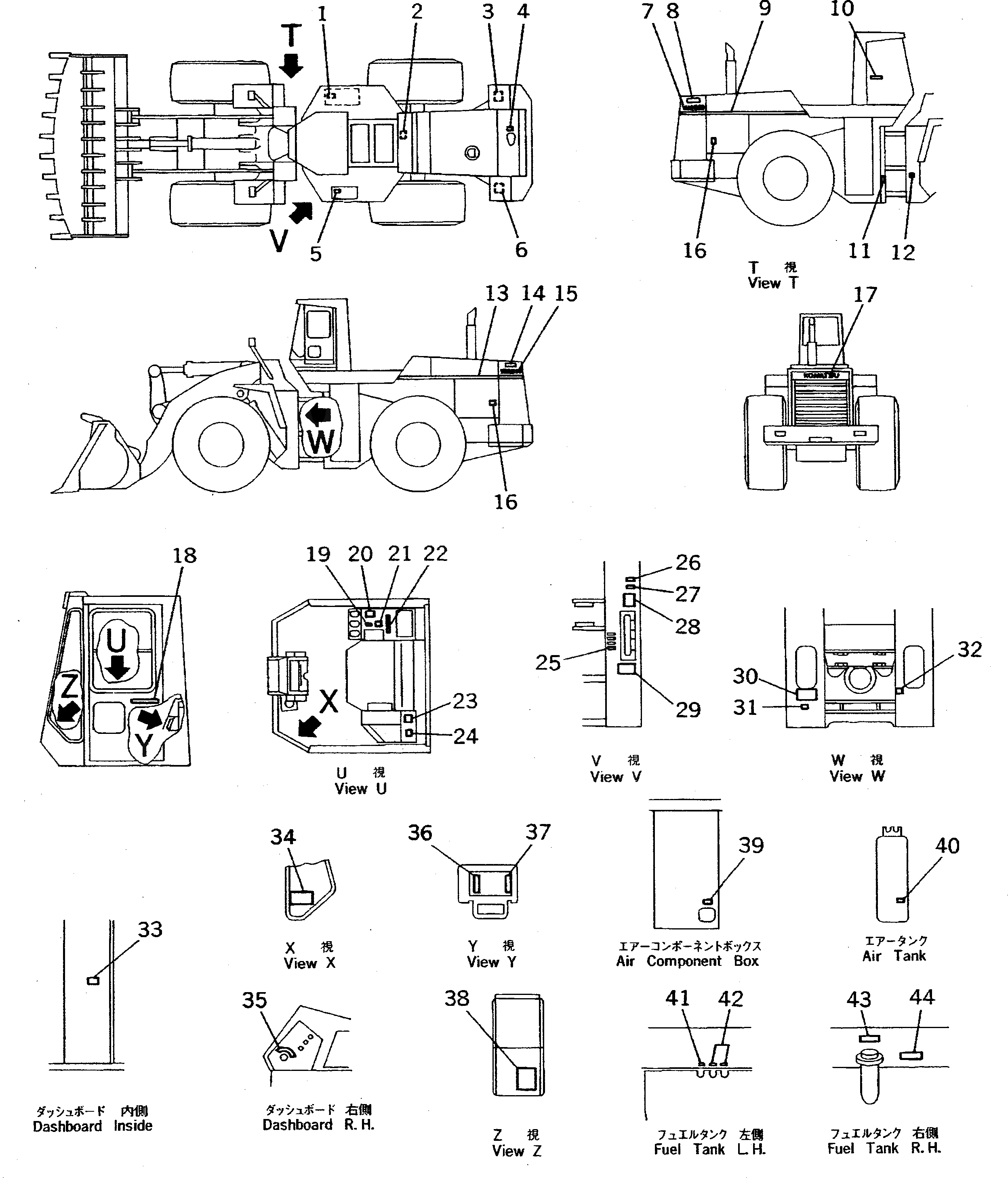

Запчасти Komatsu WA800-1-A МАРКИРОВКА (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK

SN: 10001-UP

1шт.

2

427-93-11380

PLATE¤ INSTRUCTION,AIR CLEANER

SN: 10001-UP

1шт.

3

427-93-11141

PLATE¤ CAUTION,BATTERY

SN: 10501-UP

1шт.

4

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

5

424-93-11280

PLATE¤ CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

6

427-93-11141

PLATE¤ CAUTION,BATTERY

SN: 10501-UP

1шт.

7

427-93-11240

PLATE¤ MARK,WA800

SN: 10633-UP

1шт.

8

428-93-11390

PLATE¤ MARK,AVANCE

SN: 10633-UP

1шт.

9

427-93-11250

PLATE,STRIPE

SN: 10001-UP

1шт.

10

09690-C0224

PLATE¤ MARK,KOMATSU

SN: 10633-UP

1шт.

11

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

1шт.

12

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|12

04418-13060

SCREW

SN: 10001-UP

4шт.

13

427-93-11250

PLATE,STRIPE

SN: 10001-UP

1шт.

14

428-93-11390

PLATE¤ MARK,AVANCE

SN: 10633-UP

1шт.

15

427-93-11240

PLATE¤ MARK,WA800

SN: 10633-UP

1шт.

16

362-54-17180

PLATE¤ CAUTION,FAN

SN: 10001-UP

2шт.

17

09690-C0710

PLATE¤ MARK,KOMATSU

SN: 10633-UP

1шт.

18

09690-C0224

PLATE¤ MARK,KOMATSU

SN: 10633-UP

1шт.

19

09685-00003

PLATE¤ OPERATING,LEVER LOCK

SN: 10001-UP

1шт.

20

421-93-11132

PLATE¤ OPERATING,BUCKET CONTROL LEVER

SN: 10001-UP

1шт.

21

427-93-11450

PLATE¤ OPERATING,HEATER RELAY

SN: 10501-UP

1шт.

22

421-93-12230

PLATE¤ OPERATING,RELAY

SN: 10501-UP

1шт.

23

421-93-11181

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

24

424-93-11320

PLATE¤ CAUTION,INSPECTION

SN: 10001-UP

1шт.

25

427-93-11181

PLATE¤ OPERATING,REMOTE GREASE¤ REAR

SN: 10504-UP

1шт.

26

426-93-11320

PLATE¤ CAUTION,INSTALL THE BUCKET

SN: 10001-UP

1шт.

27

362-54-17230

PLATE¤ CAUTION,HOSE CHANGE

SN: 10001-UP

1шт.

28

427-93-11430

PLATE¤ DATA

SN: 10501-UP

1шт.

29

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

1шт.

30

427-93-11463

CHART¤ OIL

SN: 10612-UP

1шт.

31

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

32

427-93-11171

PLATE¤ OPERATING,REMOTE GREASE¤ FRONT

SN: 10547-UP

1шт.

33

427-93-11220

PLATE¤ OPERATING,WORK LAMP RELAY

SN: 10001-UP

1шт.

34

425-93-11171

PLATE¤ OPERATING,MONITOR PANEL

SN: 10501-UP

1шт.

35

09683-30070

PLATE¤ OPERATING,STARTING SWITCH

SN: 10001-UP

1шт.

36

427-93-11420

PLATE¤ OPERATING,BREAKER

SN: 10501-UP

1шт.

37

427-93-11440

PLATE¤ OPERATING,BREAKER

SN: 10501-UP

1шт.

38

419-93-11890

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

39

09152-00100

PLATE¤ SAFETY,AIR TANK¤ DRAIN

SN: 10001-UP

1шт.

40

424-93-11120

PLATE¤ CAUTION,AIR TANK¤ PRESSURE

SN: 10001-UP

4шт.

41

421-93-11350

PLATE¤ INSTRUCTION,ENGINE OIL DRAIN

SN: 10001-UP

1шт.

42

421-93-11810

PLATE¤ INSTRUCTION,RADIATOR WATER DRAIN

SN: 10001-UP

2шт.

43

09101-00100

PLATE¤ INSTRUCTION,FUEL

SN: 10001-UP

1шт.

44

428-93-11370

PLATE,FUEL CUT

SN: 10563-UP

1шт.
