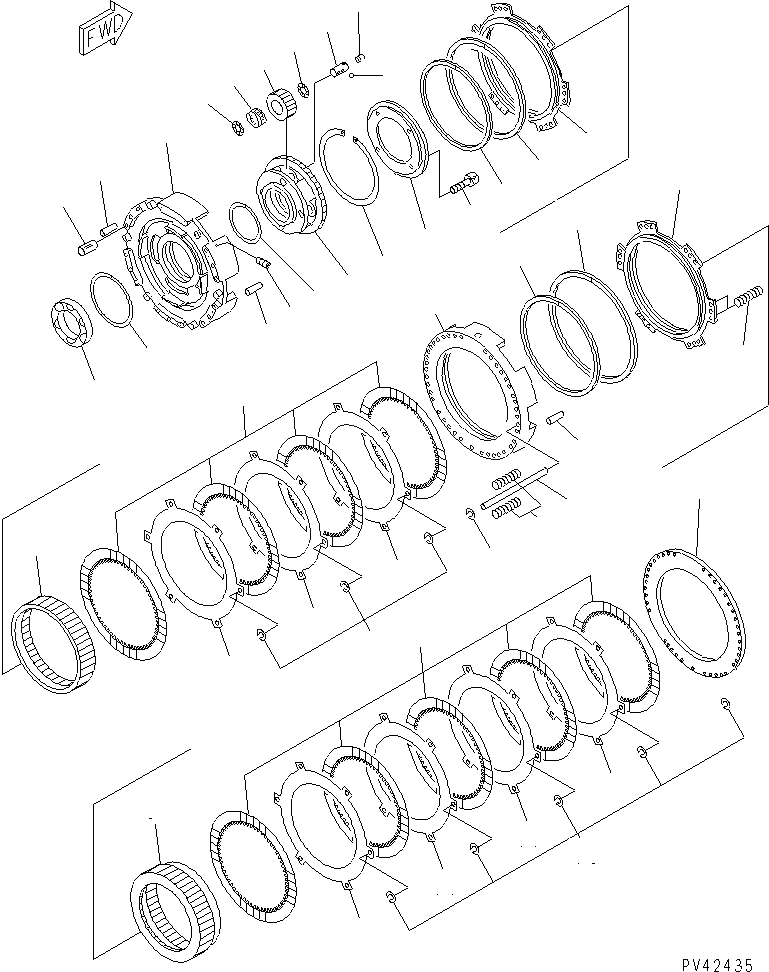

Запчасти Komatsu WA800-1-13 ТРАНСМИССИЯ (1 И 2 МУФТА) ТРАНСМИССИЯ

|$$1

SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO.

-1шт.

|1

427-15-01001

TORQFLOW ASS'Y

SN: (1045)-(1100)

1шт.

|1

0

TORQFLOW ASS'Y

SN: 10001-(1044)

1шт.

|$$4

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524.

-1шт.

|$$5

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

427-15-00013

TRANSMISSION ASS'Y

SN: (1144)-UP

1шт.

|1

0

TRANSMISSION ASS'Y

SN: (1101)-(1143)

1шт.

|1

427-15-00011

TRANSMISSION ASS'Y

SN: 10001-(1100)

1шт.

|$$9

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524.

-1шт.

1

427-15-12330

CARRIER

SN: 10001-UP

1шт.

2

427-15-12430

GEAR

SN: 10001-UP

4шт.

3

427-15-19260

BEARING

SN: 10575-UP

4шт.

|3

0

BEARING

SN: 10001-10574

4шт.

4

09233-13820

WASHER,THRUST

SN: (1166)-UP

8шт.

|4

0

WASHER,THRUST

SN: 10001-(1165)

8шт.

|5

427-15-00140

SHAFT ASS'Y

SN: 10001-UP

4шт.

5

0

SHAFT

SN: 10001-UP

1шт.

6

568-15-11380

PLUG

SN: 10001-UP

1шт.

7

04260-00635

BALL

SN: 10001-UP

4шт.

8

427-15-12610

GEAR,RING

SN: 10001-UP

1шт.

9

427-15-19530

RING,SNAP

SN: 10001-UP

1шт.

10

427-15-12380

COVER

SN: 10001-UP

1шт.

11

01252-31035

BOLT

SN: 10001-UP

4шт.

12

195-15-49240

RING,SEAL

SN: 10001-UP

1шт.

13

427-15-11130

HOUSING

SN: 10001-UP

1шт.

14

234-71-11310

PIN,DOWEL

SN: 10001-UP

4шт.

15

568-15-11370

PIN,(D=20¤ L=237.5)

SN: 10001-UP

6шт.

16

198-15-22710

DISC

SN: 10001-UP

9шт.

17

198-15-22720

PLATE

SN: 10001-UP

7шт.

18

195-15-12850

SPRING,(L=91)

SN: 10001-UP

24шт.

19

195-15-12880

SPRING

SN: 10001-UP

54шт.

20

198-15-22740

PISTON,1ST

SN: 10001-UP

1шт.

21

154-15-22811

RING,SEAL (K3)

SN: 10001-UP

1шт.

22

198-15-29210

RING,SEAL (K3)

SN: 10001-UP

1шт.

23

427-15-11140

HOUSING,1ST

SN: 10001-UP

1шт.

24

04020-01842

PIN,DOWEL

SN: 10001-UP

2шт.

25

427-15-12620

GEAR,RING

SN: 10001-UP

1шт.

26

427-15-12760

PISTON,2ND

SN: 10001-UP

1шт.

27

195-15-29210

RING,SEAL (K3)

SN: 10001-UP

1шт.

28

427-15-19210

RING,SEAL (K3)

SN: 10001-UP

1шт.

|29

427-15-11500

HOUSING COMPLETE

SN: (1227)-UP

1шт.

|29

0

HOUSING ASS'Y

SN: 10001-(1226)

1шт.

29

0

HOUSING,2ND

SN: (1227)-UP

1шт.

|29

0

HOUSING,2ND

SN: 10001-(1226)

1шт.

30

234-15-12790

SCREW

SN: 10001-(1226)

2шт.

31

06000-06930

BEARING

SN: 10001-UP

1шт.

32

07018-12605

RING,SEAL

SN: 10001-UP

1шт.

33

562-15-11380

SLEEVE

SN: (1227)-UP

17шт.

|33

09231-01830

SLEEVE

SN: 10001-(1226)

17шт.
