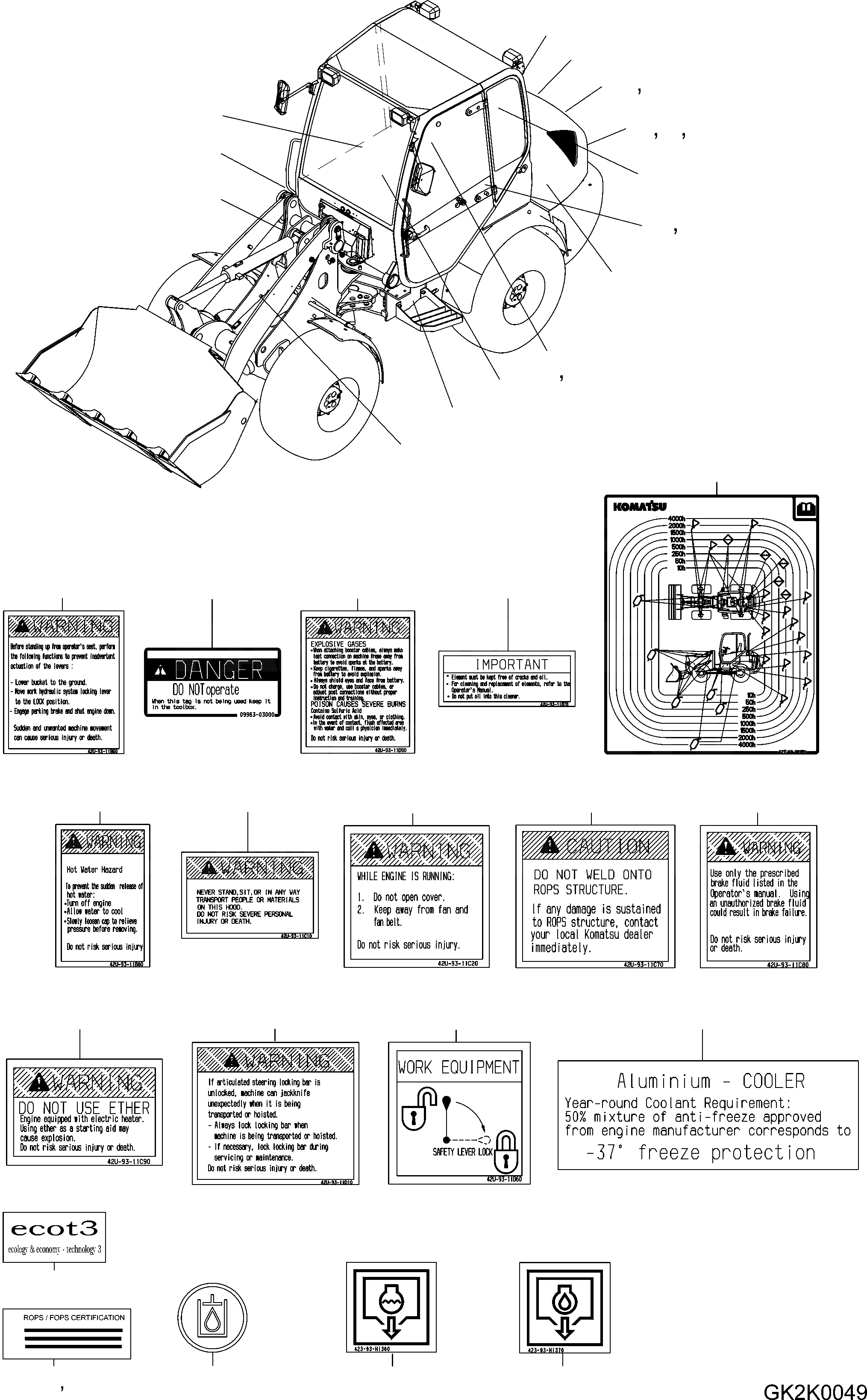

Запчасти Komatsu WA80-6 ТАБЛИЧКИ (США) (/) U МАРКИРОВКА

1

42U-93-11B60

DECAL, STAND UP SEAT

SN: H60051-UP

1шт.

2

09963-03000

TAG

SN: H60051-UP

1шт.

3

42U-93-11D50

DECAL, BATTERY

SN: H60051-UP

1шт.

4

42U-93-11B70

DECAL, AIR FILTER

SN: H60051-UP

1шт.

5

42U-93-11B80

DECAL, HOT WATER HAZAR

SN: H60051-UP

1шт.

6

42U-93-11C10

DECAL, ENGINE HOOD

SN: H60051-UP

1шт.

7

42U-93-11C20

DECAL, ENGINE HOOD

SN: H60051-UP

1шт.

8

42U-93-11C70

DECAL, NO WELD ON ROPS

SN: H60051-UP

1шт.

9

42U-93-11C80

DECAL, BRAKE FLUID

SN: H60051-UP

1шт.

10

42U-93-11C90

DECAL, ENGINE START

SN: H60051-UP

1шт.

11

42U-93-11D10

DECAL, LOCKING BAR

SN: H60051-UP

1шт.

12

42U-93-11D60

DECAL, HYDRAULIC LEVER LOCK

SN: H60051-UP

1шт.

13

42U-93-11D80

DECAL, COOLENT

SN: H60051-UP

1шт.

14

42T-93-31050

OIL CHART

SN: H60051-UP

1шт.

15

20Y-00-41530

PLATE, ECOT3

SN: H60051-UP

1шт.

16

09620-A2000

PLATE NAME, ROPS/FOPS

SN: H60051-UP

1шт.

|$17

09620-A3000

PLATE NAME, ROPS/FOPS

SN: H60051-UP

1шт.

17

04418-03080

PIN

SN: H60051-UP

4шт.

18

20E-00-K1270

PLATE, OIL

SN: H60051-UP

1шт.

19

09669-0000E

PLATE, DIESEL

SN: H60051-UP

1шт.

20

423-93-H1360

DECAL, WATER DRAIN

SN: H60051-UP

1шт.

21

423-93-H1370

DECAL, OIL DRAIN

SN: H60051-UP

1шт.
