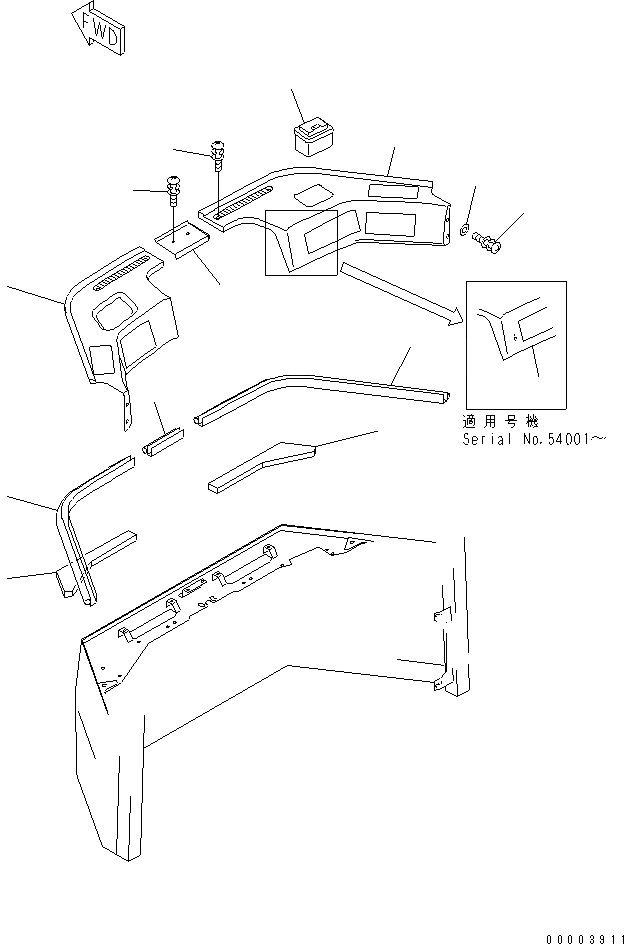

Запчасти Komatsu WA700-3 ЧАСТИ КАБИНЫ(ДЛЯ ЯПОН.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

428-56-21100

CAB ASS'Y

SN: 54001-UP

1шт.

|1

425-56-21910

CAB ASS'Y

SN: 51001-54000

1шт.

|1

426-56-21024

CAB ASS'Y

SN: 50036-51000

1шт.

|1

426-56-21023

CAB ASS'Y

SN: 50001-50035

1шт.

|1

428-56-21050

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 51001-UP

1шт.

|1

426-56-21081

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 50036-51000

1шт.

|1

426-56-21080

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 50001-50035

1шт.

|1

425-U94-2410

CAB ASS'Y,(WITH LOAD METER)

SN: 51001-UP

1шт.

|1

428-U94-2171

CAB ASS'Y,(WITH LOAD METER)

SN: 50036-51000

1шт.

|1

428-U94-2170

CAB ASS'Y,(WITH LOAD METER)

SN: 50001-50035

1шт.

|1

426-56-21581

CAB ASS'Y,(WITH CURTAIN)

SN: 50036-UP

1шт.

|1

426-56-21580

CAB ASS'Y,(WITH CURTAIN)

SN: 50001-50035

1шт.

|1

428-56-21600

CAB ASS'Y

SN: 51001-UP

1шт.

|$$14

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-20A0.

-1шт.

1

421-56-21561

COVER,L.H.

SN: 50001-UP

1шт.

2

425-56-21260

COVER,R.H.

SN: 54001-UP

1шт.

|2

421-56-21571

COVER,R.H.

SN: 50001-54000

1шт.

3

426-56-21391

BRACKET

SN: 50001-UP

1шт.

4

417-54-21380

SEAL

SN: 50001-UP

2шт.

5

426-56-21321

SEAL

SN: 50001-UP

1шт.

6

426-56-21680

SHEET,L.H.

SN: 50001-UP

1шт.

7

426-56-21690

SHEET,R.H.

SN: 50001-UP

1шт.

8

421-09-21410

SCREW

SN: 50001-UP

6шт.

9

421-09-21430

SCREW

SN: 50001-UP

4шт.

10

01642-40810

WASHER

SN: 50001-UP

10шт.

11

421-09-21410

SCREW

SN: 50001-UP

2шт.

12

20G-54-13420

ASHTRAY

SN: 50001-UP

1шт.
