Запчасти Komatsu WA700-3 КАБИНА (ПРАВ. ДВЕРЬ В СБОРЕ¤ /) (ДВЕРЬ РАМА¤ ОКНА И РЕГУЛЯТОР) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

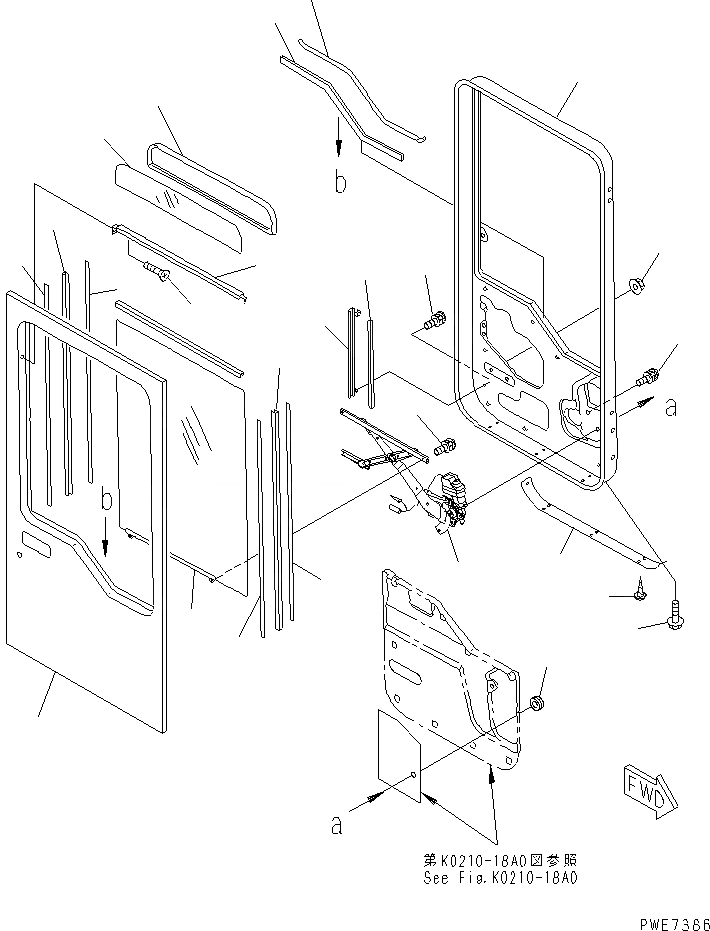

Схема запчастей Komatsu WA700-3 - КАБИНА (ПРАВ. ДВЕРЬ В СБОРЕ¤ /) (ДВЕРЬ РАМА¤ ОКНА И РЕГУЛЯТОР) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
1
2
3
4
4
5
6
7
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21

Артикул

Название

Примечание

Количество

|1

428-56-21100

CAB ASS'Y

SN: 54001-UP

1шт.

|1

425-56-21910

CAB ASS'Y

SN: 51001-54000

1шт.

|1

426-56-21024

CAB ASS'Y

SN: 50036-51000

1шт.

|1

426-56-21023

CAB ASS'Y

SN: 50001-50035

1шт.

|1

427-56-21010

CAB ASS'Y,(TBG SPEC.)

SN: 51001-UP

1шт.

|1

426-56-21053

CAB ASS'Y,(TBG SPEC.)

SN: 50036-51000

1шт.

|1

426-56-21052

CAB ASS'Y,(TBG SPEC.)

SN: 50008-50035

1шт.

|1

426-56-21051

CAB ASS'Y,(TBG SPEC.)

SN: 50001-50007

1шт.

|1

427-56-21020

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 51001-UP

1шт.

|1

426-56-21402

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50036-51000

1шт.

|1

426-56-21401

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50011-50035

1шт.

|1

426-56-21400

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50001-50010

1шт.

|1

425-56-21951

CAB ASS'Y,(EXCEPT JAPAN)

SN: 51001-UP

1шт.

|1

426-56-21032

CAB ASS'Y,(EXCEPT JAPAN)

SN: 50036-51000

1шт.

|1

426-56-21031

CAB ASS'Y,(EXCEPT JAPAN)

SN: 50001-50035

1шт.

|1

425-56-21961

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|1

426-56-21301

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|1

426-56-21300

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|1

428-56-21050

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 51001-UP

1шт.

|1

426-56-21081

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 50036-51000

1шт.

|1

426-56-21080

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 50001-50035

1шт.

|1

425-U94-2410

CAB ASS'Y,(WITH LOAD METER)

SN: 51001-UP

1шт.

|1

428-U94-2171

CAB ASS'Y,(WITH LOAD METER)

SN: 50036-51000

1шт.

|1

428-U94-2170

CAB ASS'Y,(WITH LOAD METER)

SN: 50001-50035

1шт.

|1

427-56-21030

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 51001-UP

1шт.

|1

428-U94-2121

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 50036-51000

1шт.

|1

428-U94-2120

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 50001-50035

1шт.

|1

428-56-21030

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|1

428-U94-2181

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|1

428-U94-2180

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|1

426-56-21581

CAB ASS'Y,(WITH CURTAIN)

SN: 50036-UP

1шт.

|1

426-56-21580

CAB ASS'Y,(WITH CURTAIN)

SN: 50001-50035

1шт.

|1

427-56-21050

CAB ASS'Y,(WITH CURAIN) (TBG SPEC.)

SN: 51001-UP

1шт.

|1

428-56-21181

CAB ASS'Y,(WITH CURAIN) (TBG SPEC.)

SN: 50036-51000

1шт.

|1

428-56-21180

CAB ASS'Y,(WITH CURAIN) (TBG SPEC.)

SN: 50001-50035

1шт.

|1

428-56-21020

CAB ASS'Y,(WIHT CURTAIN) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|1

428-56-21171

CAB ASS'Y,(WIHT CURTAIN) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|1

428-56-21170

CAB ASS'Y,(WIHT CURTAIN) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|1

428-U94-2311

CAB ASS'Y,(W/LOAD METER¤RADIO) (TBG)

SN: 50036-UP

1шт.

|1

428-U94-2310

CAB ASS'Y,(W/LOAD METER¤RADIO) (TBG)

SN: 50001-50035

1шт.

|1

428-56-21500

CAB ASS'Y

SN: 51001-UP

1шт.

|1

428-56-21600

CAB ASS'Y

SN: 51001-UP

1шт.

|$$43

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-20A1.

-1шт.

|1

426-56-21200

DOOR ASS'Y,R.H.

SN: 50001-UP

1шт.

|$$45

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-16A0 TO K0210-18A0.

-1шт.

1

0

DOOR,R.H.

SN: 50001-UP

1шт.

2

421-926-2410

GLASS ASS'Y,R.H.

SN: 50001-UP

1шт.

|2

421-926-2430

GLASS

SN: 50001-UP

1шт.

|2

423-56-21460

HOLDER

SN: 50001-UP

1шт.

|2

423-56-21470

SHEET

SN: 50001-UP

1шт.

3

426-56-21520

REGULATOR,R.H.

SN: 50001-UP

1шт.

|3

0

MOTOR ASS'Y

SN: 50001-UP

1шт.

4

01023-60612

SCREW

SN: 50001-UP

6шт.

5

01584-00605

NUT

SN: 50001-UP

2шт.

6

09415-02512

CAP

SN: 50001-UP

1шт.

7

423-56-21510

SEAL

SN: 50001-UP

1шт.

8

423-56-21560

RAIL,R.H.

SN: 50001-UP

1шт.

9

423-56-21610

SEAL

SN: 50001-UP

1шт.

10

423-56-21360

CUSHION

SN: 50001-UP

2шт.

11

423-56-21370

CUSHION

SN: 50001-UP

2шт.

12

01023-60612

SCREW

SN: 50001-UP

2шт.

13

421-926-2440

GLASS,UPPER

SN: 50001-UP

1шт.

14

423-56-21540

STRIP,WEATHER

SN: 50001-UP

1шт.

15

423-56-21410

BAR

SN: 50001-UP

1шт.

16

01224-40406

SCREW

SN: 50001-UP

2шт.

17

423-56-21520

SEAL,OUTER

SN: 50001-UP

1шт.

18

423-56-21530

SEAL,INNER

SN: 50001-UP

1шт.

19

423-56-21420

COVER

SN: 50001-UP

1шт.

20

01370-00508

SCREW

SN: 50001-UP

7шт.

21

01435-00610

BOLT

SN: 50001-UP

1шт.

Выбрано товаров: 70
