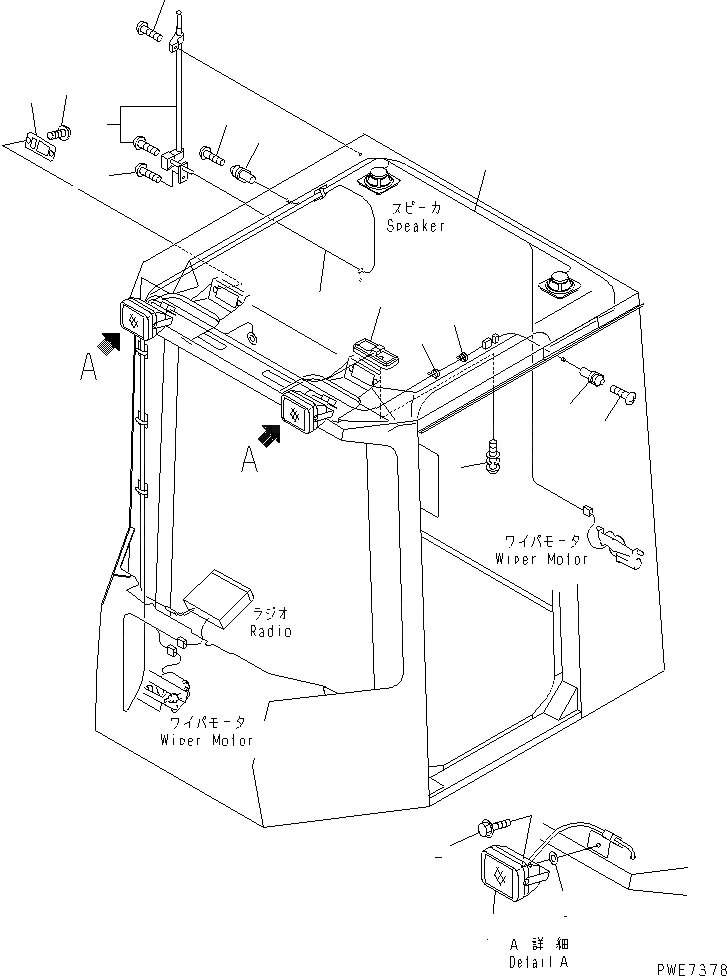

Запчасти Komatsu WA700-3 КАБИНА (ЭЛЕКТРИКА) (С АНТЕННА И ГРОМКОГОВОРИТ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

428-56-21100

CAB ASS'Y

SN: 54001-UP

1шт.

|1

425-56-21910

CAB ASS'Y

SN: 51001-54000

1шт.

|1

426-56-21024

CAB ASS'Y

SN: 50036-51000

1шт.

|1

426-56-21023

CAB ASS'Y

SN: 50001-50035

1шт.

|1

427-56-21020

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 51001-UP

1шт.

|1

426-56-21402

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50036-51000

1шт.

|1

426-56-21401

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50011-50035

1шт.

|1

426-56-21400

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50001-50010

1шт.

|1

425-56-21961

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|1

426-56-21301

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|1

426-56-21300

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|1

428-56-21050

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 51001-UP

1шт.

|1

426-56-21081

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 50036-51000

1шт.

|1

426-56-21080

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 50001-50035

1шт.

|1

425-U94-2410

CAB ASS'Y,(WITH LOAD METER)

SN: 51001-UP

1шт.

|1

428-U94-2171

CAB ASS'Y,(WITH LOAD METER)

SN: 50036-51000

1шт.

|1

428-U94-2170

CAB ASS'Y,(WITH LOAD METER)

SN: 50001-50035

1шт.

|1

426-56-21581

CAB ASS'Y,(WITH CURTAIN)

SN: 50036-UP

1шт.

|1

426-56-21580

CAB ASS'Y,(WITH CURTAIN)

SN: 50001-50035

1шт.

|1

428-56-21500

CAB ASS'Y

SN: 51001-UP

1шт.

|1

428-56-21600

CAB ASS'Y

SN: 51001-UP

1шт.

|$$22

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-20A1.

-1шт.

1

426-56-23360

LAMP ASS'Y,WORKING

SN: 50001-UP

2шт.

|1

421-06-23320

LENS

SN: 50001-UP

1шт.

|1

421-06-23330

BULB¤ 70W

SN: 50001-UP

1шт.

2

01435-01020

BOLT

SN: 50001-UP

2шт.

3

01643-31032

WASHER

SN: 50001-UP

2шт.

4

08034-20536

BAND

SN: 50001-UP

2шт.

5

421-56-21420

PANEL,SWITCH

SN: 50001-UP

2шт.

6

01224-70516

SCREW

SN: 50001-UP

4шт.

7

421-06-26210

LAMP ASS'Y,ROOM

SN: 50001-UP

1шт.

|7

421-06-26250

LENS

SN: 50001-UP

2шт.

|7

421-06-26260

BULB¤ 10W

SN: 50001-UP

2шт.

8

01023-70512

SCREW

SN: 50001-UP

2шт.

9

421-56-21730

SWITCH,DOOR

SN: 50001-UP

2шт.

10

01220-70512

SCREW

SN: 50001-UP

2шт.

11

426-56-21314

WIRING HARNESS

SN: 50001-UP

1шт.

12

421-56-21670

ANTENNA

SN: 50001-UP

1шт.

13

01220-70412

SCREW

SN: 50001-UP

2шт.

14

566-07-12150

CABLE,ANTENNA

SN: 50001-UP

1шт.
