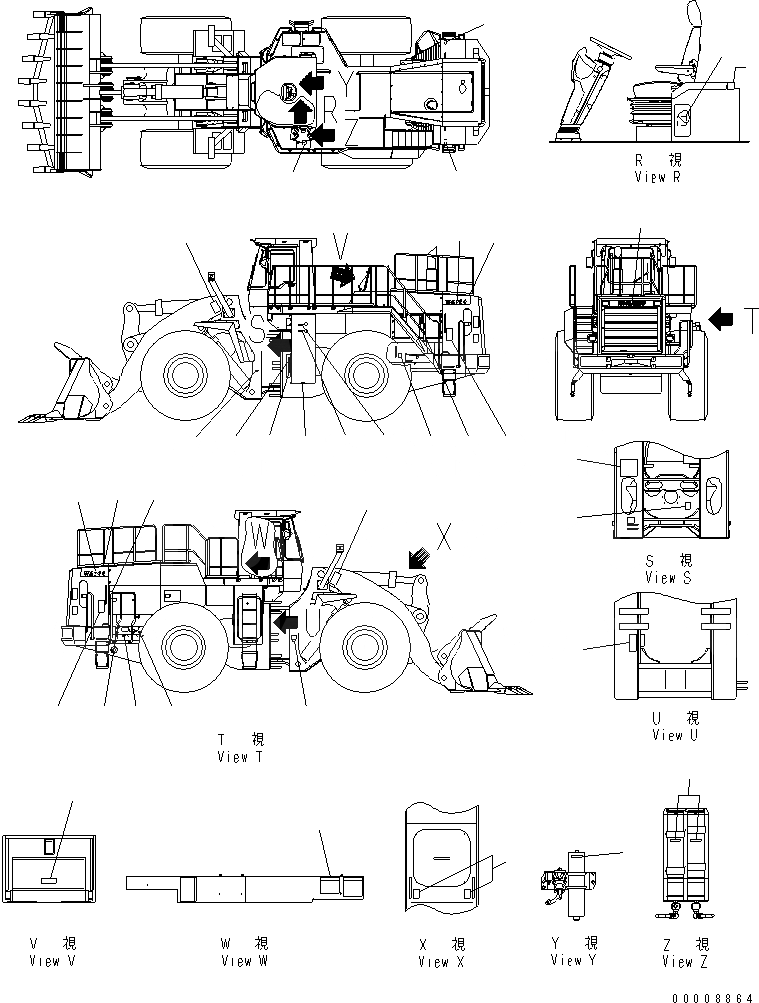

Запчасти Komatsu WA700-3 МАРКИРОВКА (АНГЛ.) (ДЛЯ СЕВ. АМЕРИКИ И АВСТРАЛИЯ¤ EXCEPT U.S.A.)(№-) МАРКИРОВКА

1

09667-03001

PLATE, SAFETY,FAN

SN: 50001-UP

2шт.

2

419-93-11980

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 50001-UP

1шт.

3

421-93-11380

PLATE, CAUTION

SN: 50001-UP

1шт.

4

421-93-11970

PLATE, CAUTION

SN: 50001-UP

1шт.

5

428-93-11380

PLATE, CAUTION,FUEL CUT

SN: 50001-UP

1шт.

6

428-93-21250

CHART, OIL

SN: 51001-UP

1шт.

7

428-93-11410

PLATE, MARK,WA700

SN: 50001-UP

2шт.

8

09659-53000

PLATE, SAFETY,ACCUMULATOR

SN: 50001-UP

5шт.

9

426-93-11550

PLATE, CAUTION,INSTALL THE BUCKET

SN: 50001-UP

1шт.

10

427-93-11281

PLATE, OPERATING,REMOTE GREASE, FRONT

SN: 50001-UP

1шт.

11

427-93-11291

PLATE, OPERATING,REMOTE GREASE, REAR

SN: 50001-UP

1шт.

12

09690-C0560

PLATE, MARK,KOMATSU

SN: 50001-UP

1шт.

13

09601-00000

PLATE, NAME,(LIMITED SUPPLY)

SN: 50001-UP

1шт.

13

04418-13060

SCREW

SN: 50001-UP

4шт.

14

427-93-21230

PLATE, CAUTION,AIR CLEANER

SN: 50001-UP

1шт.

15

427-93-11391

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 51001-UP

1шт.

16

427-93-11410

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 50001-UP

1шт.

17

09960-01001

PLATE, MARK

SN: 50001-UP

4шт.

18

09812-03000

PLATE, SAFETY,KEEP A SAFE DISTANCE

SN: 50001-UP

2шт.

19

09807-C1680

PLATE, SAFETY,KEEP OUT

SN: 50001-UP

2шт.

20

09811-03000

PLATE, CAUTION,BRAKE OIL

SN: 50001-UP

1шт.

21

428-93-21610

PLATE

SN: 50001-UP

2шт.

22

427-93-21281

PLATE, WARNING,BATTERY BOX

SN: 50001-UP

2шт.

23

427-93-21241

PLATE, INSTRUCTION,BRAKE OIL LEVEL

SN: 50001-UP

1шт.

24

427-93-21251

PLATE, INSTRUCTION,BRAKE OIL LEVEL

SN: 50001-UP

1шт.

25

427-93-21260

PLATE,BRAKE OIL DRAIN

SN: 50001-UP

1шт.

26

427-93-21270

PLATE, NAME

SN: 50001-UP

1шт.
