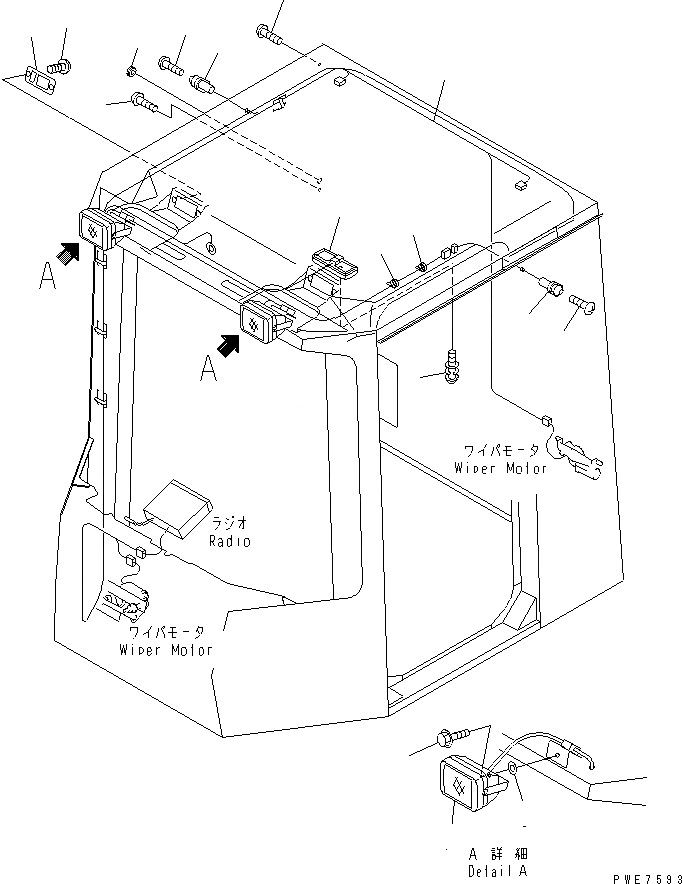

Запчасти Komatsu WA700-3 КАБИНА (ЭЛЕКТРИКА) (КРОМЕ ЯПОН.)(№-7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$13

425-56-21951

CAB ASS'Y,(EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$14

426-56-21032

CAB ASS'Y,(EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$15

426-56-21031

CAB ASS'Y,(EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$16

427-56-21010

CAB ASS'Y,(TBG SPEC.)

SN: 51001-UP

1шт.

|$17

426-56-21053

CAB ASS'Y,(TBG SPEC.)

SN: 50036-51000

1шт.

|$18

426-56-21052

CAB ASS'Y,(TBG SPEC.)

SN: 50008-50035

1шт.

|$19

426-56-21051

CAB ASS'Y,(TBG SPEC.)

SN: 50001-50007

1шт.

|$20

427-56-21030

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 51001-UP

1шт.

|$21

428-U94-2121

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 50036-51000

1шт.

|$22

428-U94-2120

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 50001-50035

1шт.

|$23

428-56-21030

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$24

428-U94-2181

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$25

428-U94-2180

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$26

427-56-21050

CAB ASS'Y,(WITH CURTAIN) (TBG SPEC.)

SN: 51001-UP

1шт.

|$27

428-56-21181

CAB ASS'Y,(WITH CURTAIN) (TBG SPEC.)

SN: 50036-51000

1шт.

|$28

428-56-21180

CAB ASS'Y,(WITH CURTAIN) (TBG SPEC.)

SN: 50001-50035

1шт.

|$29

428-56-21020

CAB ASS'Y,(WITH CURTAIN) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$30

428-56-21171

CAB ASS'Y,(WITH CURTAIN) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$31

428-56-21170

CAB ASS'Y,(WITH CURTAIN) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$32

428-U94-2311

CAB ASS'Y,(W/LOAD METER,RADIO) (TBG)

SN: 50036-UP

1шт.

|$33

428-U94-2310

CAB ASS'Y,(W/LOAD METER,RADIO) (TBG)

SN: 50001-50035

1шт.

|$$22

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A1 TO K0210-20A1.

-1шт.

1

426-56-23360

LAMP ASS'Y

SN: 50001-UP

2шт.

1

421-06-23320

LENS

SN: 50001-UP

1шт.

1

421-06-23330

BULB, 70W

SN: 50001-UP

1шт.

2

01435-01020

BOLT

SN: 50001-UP

2шт.

3

01643-31032

WASHER

SN: 50001-UP

2шт.

4

08034-20536

BAND

SN: 50001-UP

2шт.

5

421-56-21420

PANEL,SWITCH

SN: 50001-UP

2шт.

6

01224-70516

SCREW

SN: 50001-UP

4шт.

7

421-06-26210

LAMP ASS'Y,ROOM

SN: 50001-UP

1шт.

7

421-06-26250

LENS

SN: 50001-UP

2шт.

7

421-06-26260

BULB, 10W

SN: 50001-UP

2шт.

8

01023-70512

SCREW

SN: 50001-UP

2шт.

9

421-56-21730

SWITCH,DOOR

SN: 50001-UP

2шт.

10

01220-70512

SCREW

SN: 50001-UP

2шт.

11

426-56-21314

WIRING HARNESS

SN: 50001-UP

1шт.

12

09415-00706

CAP

SN: 50001-UP

1шт.

13

01220-70412

SCREW

SN: 50001-UP

2шт.
