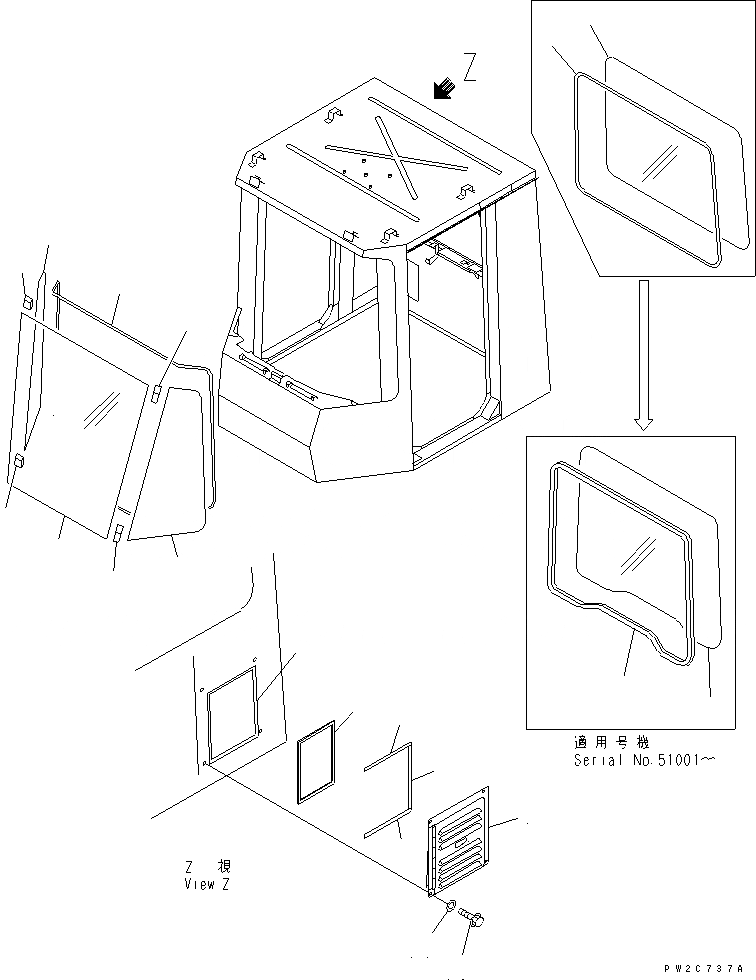

Запчасти Komatsu WA700-3 КАБИНА (ОКНА) (КРОМЕ ЯПОН.)(№-7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$9

425-56-21951

CAB ASS'Y,(EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$10

426-56-21032

CAB ASS'Y,(EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$11

426-56-21031

CAB ASS'Y,(EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$12

425-56-21961

CAB ASS'Y,(EXCEPT JAPAN) (AM/FM)

SN: 51001-UP

1шт.

|$13

426-56-21301

CAB ASS'Y,(EXCEPT JAPAN) (AM/FM)

SN: 50036-51000

1шт.

|$14

426-56-21300

CAB ASS'Y,(EXCEPT JAPAN) (AM/FM)

SN: 50001-50035

1шт.

|$15

428-56-21020

CAB ASS'Y,WITH CURTAIN (EXCEPT JPAN)

SN: 51001-UP

1шт.

|$16

428-56-21171

CAB ASS'Y,WITH CURTAIN (EXCEPT JPAN)

SN: 50036-51000

1шт.

|$17

428-56-21170

CAB ASS'Y,WITH CURTAIN (EXCEPT JPAN)

SN: 50001-50035

1шт.

|$18

428-56-21030

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$19

428-U94-2181

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$20

428-U94-2180

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$21

428-56-21500

CAB ASS'Y,(EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$$14

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A2 TO K0210-20A1.

-1шт.

1

428-56-21120

GLASS,CENTER

SN: 50001-UP

1шт.

2

428-56-21130

GLASS,SIDE

SN: 50001-UP

2шт.

3

426-56-21141

STRIP

SN: 50001-UP

1шт.

4

23S-55-51840

RUBBER

SN: 50001-UP

4шт.

5

425-56-21720

GLASS,REAR

SN: 51001-UP

1шт.

5

426-56-21162

GLASS,REAR

SN: 50001-51000

1шт.

6

425-56-21730

STRIP,WEATHER

SN: 51001-UP

1шт.

6

426-56-21171

STRIP,WEATHER

SN: 50001-51000

1шт.

7

426-56-21182

COVER

SN: 50001-UP

1шт.

8

428-56-21160

SEAL

SN: 50001-UP

1шт.

9

421-926-2550

SEAL

SN: 50001-UP

1шт.

10

426-56-21870

SEAL

SN: 50001-UP

1шт.

11

426-56-21880

SEAL

SN: 50001-UP

1шт.

12

426-56-21890

SEAL

SN: 50001-UP

1шт.

13

01435-00625

BOLT

SN: 50001-UP

4шт.

14

423-56-21920

WASHER

SN: 50001-UP

4шт.
