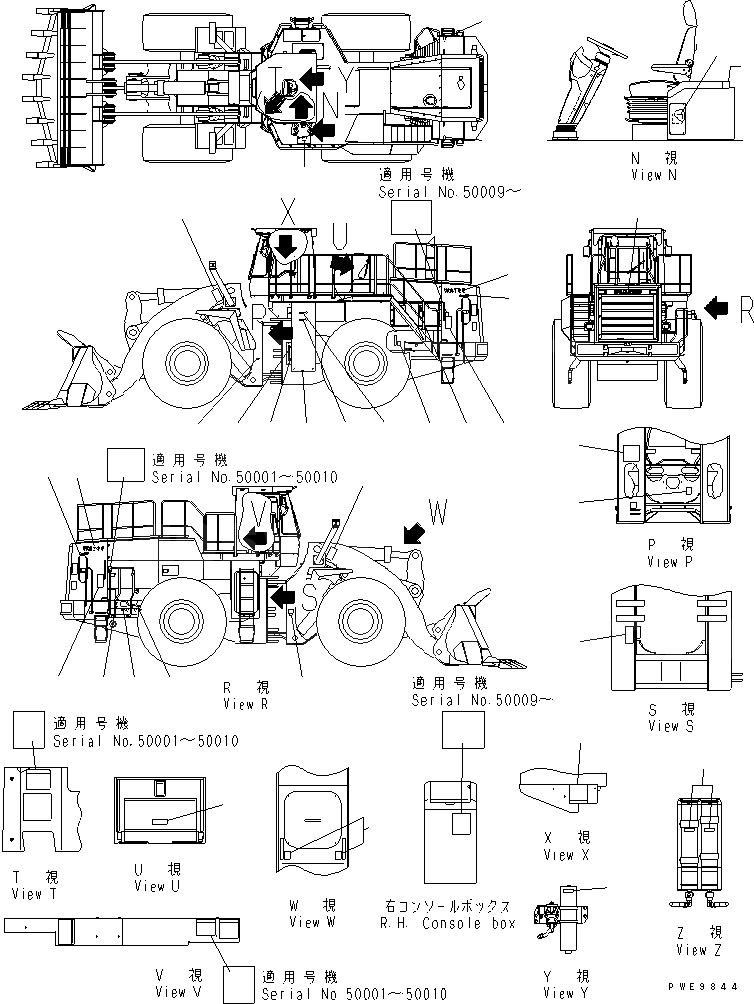

Запчасти Komatsu WA700-3 МАРКИРОВКА (ПОРТУГАЛ.)(№-) МАРКИРОВКА

1

09667-A0880

PLATE, SAFETY,FAN

SN: 50001-50010

2шт.

2

419-93-11990

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 50001-50010

1шт.

3

421-93-11710

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 50001-51000

1шт.

4

421-93-11990

PLATE, CAUTION,RADIATOR WATER DRAIN

SN: 50001-51000

1шт.

5

362-98-11150

PLATE, CAUTION,STARTING AND INSPECTION

SN: 50001-50010

1шт.

6

428-93-11980

PLATE,FUEL CUT

SN: 50001-51000

1шт.

7

428-V07-2110

CHART, OIL

SN: 50001-51000

1шт.

8

428-93-11410

PLATE, MARK,WA700

SN: 50001-@

2шт.

9

417-93-21220

PLATE, MARK,AVANCE LOADER

SN: 50001-@

2шт.

10

09659-A057B

PLATE, SAFETY,ACCUMULATOR

SN: 50011-@

5шт.

10

09659-52000

PLATE, SAFETY,ACCUMULATOR

SN: 50001-50010

5шт.

11

426-93-11650

PLATE, CAUTION,BUCKET

SN: 50001-51000

1шт.

12

428-93-11960

PLATE, OPERATING,REMOTE GREASE, FRONT

SN: 50001-51000

1шт.

13

427-V07-1310

PLATE, CAUTION,REMOTE GREASE, REAR

SN: 50001-51000

1шт.

14

09690-C0560

PLATE, MARK,KOMATSU

SN: 50001-51000

1шт.

15

09601-00000

PLATE, NAME,(LIMITED SUPPLY)

SN: 50014-@

1шт.

15

0

PLATE, NAME,(LIMITED SUPPLY)

SN: 50001-50013

1шт.

15

04418-13060

SCREW

SN: 50001-@

4шт.

16

427-V07-2130

PLATE, INSTRUCTION,AIR CLEANER

SN: 50001-51000

1шт.

17

428-93-11930

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 50001-51000

1шт.

18

428-93-11920

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 50001-51000

1шт.

19

09960-01001

PLATE, MARK

SN: 50001-@

4шт.

20

09806-C1683

PLATE, SAFETY,KEEP A SAFE DISTANCE

SN: 50011-@

2шт.

20

09806-C1680

PLATE, SAFETY,KEEP A SAFE DISTANCE

SN: 50001-50010

2шт.

21

09807-C1683

PLATE, SAFETY,KEEP OUT

SN: 50011-@

2шт.

21

09807-C1680

PLATE, SAFETY,KEEP OUT

SN: 50001-50010

2шт.

22

569-93-64410

PLATE, SAFETY,EMERGENCY STOP

SN: 50001-51000

1шт.

23

425-V07-1110

PLATE, CAUTION,BRAKE OIL

SN: 50001-51000

1шт.

24

427-V07-2140

PLATE,BATTERY BOX

SN: 50001-51000

2шт.

25

427-V07-2150

PLATE, CAUTION,BRAKE OIL LEVEL STOP

SN: 50001-51000

1шт.

26

427-V07-2160

PLATE, CAUTION,BRAKE OIL LEVEL RUNNING

SN: 50001-51000

1шт.

27

427-V07-2170

PLATE,BRAKE OIL DRAIN

SN: 50001-51000

1шт.

28

427-V07-2180

PLATE,AIR CONDITIONER RELAY

SN: 50001-51000

1шт.

29

09696-30079

PLATE,NOISE SUPPRESSION SPEC.

SN: 50009-@

1шт.

30

09696-20113

PLATE,NOISE SUPPRESSION SPEC.

SN: 50009-@

1шт.
