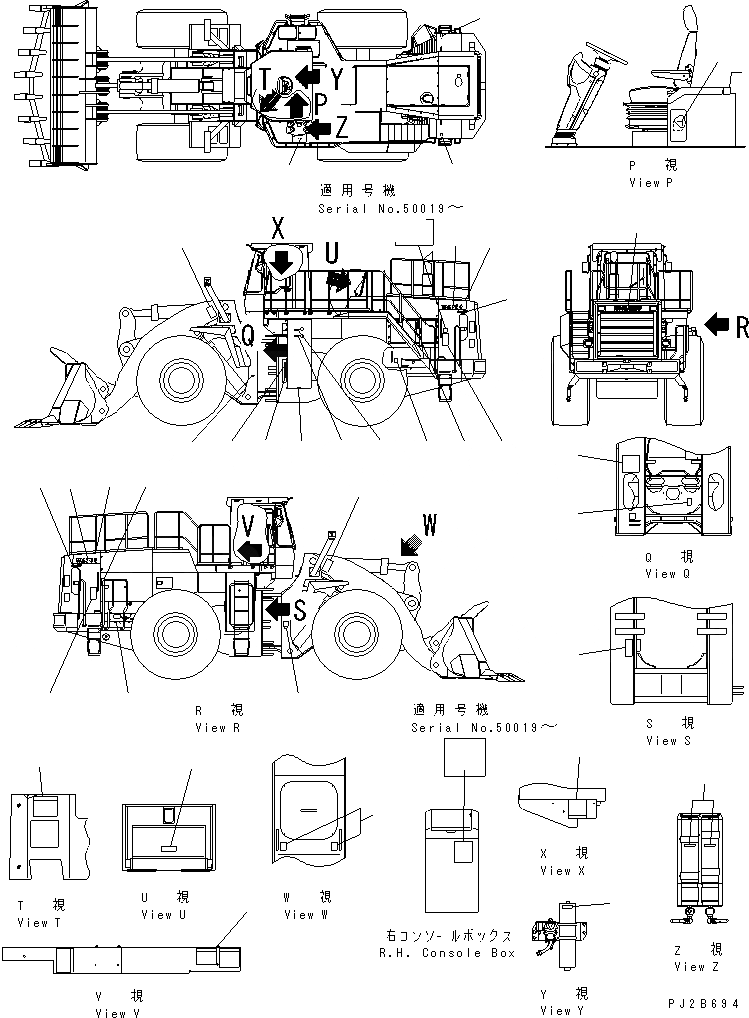

Запчасти Komatsu WA700-3 МАРКИРОВКА (ИСПАНИЯ)(№-) МАРКИРОВКА

1

09667-A0880

PLATE, SAFETY,FAN

SN: 50001-50010

2шт.

2

419-V00-1260

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 50001-50010

1шт.

3

419-V00-1120

PLATE, CAUTION,STARTING AND INSPECTION

SN: 50001-50010

1шт.

4

428-V00-1170

PLATE, CAUTION,FUEL CUT

SN: 50001-@

1шт.

5

428-V00-2120

CHART,OIL

SN: 50001-51000

1шт.

6

428-93-11410

PLATE, MARK,WA700

SN: 50001-@

2шт.

7

417-93-21220

PLATE, MARK,AVANCE

SN: 50001-51000

2шт.

8

09659-A057B

PLATE, SAFETY,ACCUMULATOR

SN: 50011-@

5шт.

8

09659-53000

PLATE, SAFETY,ACCUMULATOR

SN: 50001-50010

5шт.

9

426-V00-1150

PLATE, CAUTION,INSTALL THE BUCKET

SN: 50001-@

1шт.

10

428-V00-1180

PLATE, OPERATING,REMOTE GREASE, FRONT

SN: 50001-@

1шт.

11

428-V00-1190

PLATE, OPERATING,REMOTE GREASE, REAR

SN: 50001-@

1шт.

12

09690-C0560

PLATE, MARK,KOMATSU

SN: 50001-@

1шт.

13

09601-00000

PLATE, NAME,(LIMITED SUPPLY)

SN: 50014-@

1шт.

13

09601-00010

PLATE, NAME,(LIMITED SUPPLY)

SN: 50001-50013

1шт.

13

04418-13060

SCREW

SN: 50001-@

4шт.

14

428-V00-2190

PLATE,AIR CLEANER

SN: 50001-@

1шт.

15

428-V00-1130

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 50001-@

1шт.

16

428-V00-1120

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 50001-@

1шт.

17

09960-01001

PLATE, MARK

SN: 50001-@

4шт.

18

09806-C1683

PLATE, SAFETY,KEEP A SAFE DISTANCE

SN: 50011-@

2шт.

18

09806-C1680

PLATE, SAFETY,KEEP A SAFE DISTANCE

SN: 50001-50010

2шт.

19

09807-C1683

PLATE, SAFETY,KEEP OUT

SN: 50011-@

2шт.

19

09807-C1680

PLATE, SAFETY,KEEP OUT

SN: 50001-50010

2шт.

20

569-93-69410

PLATE

SN: 50001-51000

1шт.

21

09811-01000

PLATE, CAUTION,BRAKE OIL

SN: 50001-@

1шт.

22

428-93-21610

PLATE

SN: 50030-51000

2шт.

22

428-93-21130

PLATE

SN: 50001-50029

2шт.

23

428-V00-2170

PLATE,BATTERY BOX

SN: 50001-@

2шт.

24

428-V00-2160

PLATE,BRAKE OIL LEVEL

SN: 50001-@

1шт.

25

428-V00-2150

PLATE,BRAKE OIL LEVEL

SN: 50001-@

1шт.

26

428-V00-2180

PLATE,BRAKE OIL DRAIN

SN: 50001-@

1шт.

27

428-V00-2140

PLATE

SN: 50001-@

1шт.

28

09696-30079

PLATE,NOISE SUPPRESSION SPEC.

SN: 50014-51000

1шт.

29

09696-20113

PLATE,NOISE SUPPRESSION SPEC.

SN: 50014-51000

1шт.
