Запчасти Komatsu WA700-3 КАБИНА (ОМЫВАТЕЛЬ СТЕКЛА И УПЛОТНЕНИЯ)(№-7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

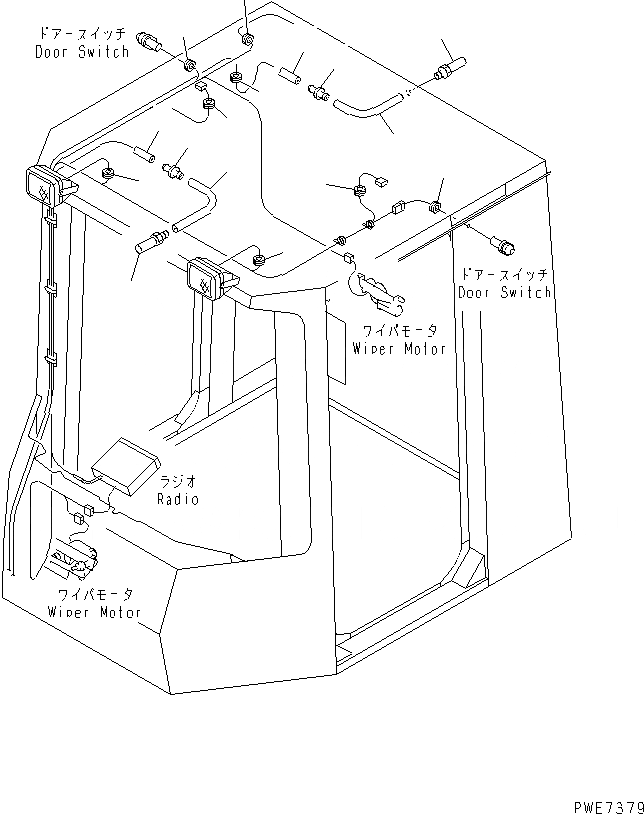

Схема запчастей Komatsu WA700-3 - КАБИНА (ОМЫВАТЕЛЬ СТЕКЛА И УПЛОТНЕНИЯ)(№-7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ
1
2
3
4
5
6
7
8
9
9
9
9
10
10
11
12

Артикул

Название

Примечание

Количество

|$27

428-56-21100

CAB ASS'Y

SN: 54001-UP

1шт.

|$28

425-56-21910

CAB ASS'Y

SN: 51001-54000

1шт.

|$29

426-56-21024

CAB ASS'Y

SN: 50036-51000

1шт.

|$30

426-56-21023

CAB ASS'Y

SN: 50001-50035

1шт.

|$31

427-56-21010

CAB ASS'Y,(TBG SPEC.)

SN: 51001-UP

1шт.

|$32

426-56-21053

CAB ASS'Y,(TBG SPEC.)

SN: 50036-51000

1шт.

|$33

426-56-21052

CAB ASS'Y,(TBG SPEC.)

SN: 50008-50035

1шт.

|$34

426-56-21051

CAB ASS'Y,(TBG SPEC.)

SN: 50001-50007

1шт.

|$35

427-56-21020

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 51001-UP

1шт.

|$36

426-56-21402

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50036-51000

1шт.

|$37

426-56-21401

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50011-50035

1шт.

|$38

426-56-21400

CAB ASS'Y,(AM/FM RADIO) (TBG SPEC.)

SN: 50001-50010

1шт.

|$39

425-56-21951

CAB ASS'Y,(EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$40

426-56-21032

CAB ASS'Y,(EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$41

426-56-21031

CAB ASS'Y,(EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$42

425-56-21961

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$43

426-56-21301

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$44

426-56-21300

CAB ASS'Y,(AM/FM RADIO) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$45

428-56-21050

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 51001-UP

1шт.

|$46

426-56-21081

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 50036-51000

1шт.

|$47

426-56-21080

CAB ASS'Y,(WITH LAMINATED GLASS)

SN: 50001-50035

1шт.

|$48

425-U94-2410

CAB ASS'Y,(WITH LOAD METER)

SN: 51001-UP

1шт.

|$49

428-U94-2171

CAB ASS'Y,(WITH LOAD METER)

SN: 50036-51000

1шт.

|$50

428-U94-2170

CAB ASS'Y,(WITH LOAD METER)

SN: 50001-50035

1шт.

|$51

427-56-21030

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 51001-UP

1шт.

|$52

428-U94-2121

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 50036-51000

1шт.

|$53

428-U94-2120

CAB ASS'Y,(WITH LOAD METER) (TBG SPEC.)

SN: 50001-50035

1шт.

|$54

428-56-21030

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$55

428-U94-2181

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$56

428-U94-2180

CAB ASS'Y,(/LOAD METER) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$57

426-56-21581

CAB ASS'Y,(WITH CURTAIN)

SN: 50036-UP

1шт.

|$58

426-56-21580

CAB ASS'Y,(WITH CURTAIN)

SN: 50001-50035

1шт.

|$59

427-56-21050

CAB ASS'Y,(WITH CURTAIN) (TBG SPEC.)

SN: 51001-UP

1шт.

|$60

428-56-21181

CAB ASS'Y,(WITH CURTAIN) (TBG SPEC.)

SN: 50036-51000

1шт.

|$61

428-56-21180

CAB ASS'Y,(WITH CURTAIN) (TBG SPEC.)

SN: 50001-50035

1шт.

|$62

428-56-21020

CAB ASS'Y,(WITH CURTAIN) (EXCEPT JAPAN)

SN: 51001-UP

1шт.

|$63

428-56-21171

CAB ASS'Y,(WITH CURTAIN) (EXCEPT JAPAN)

SN: 50036-51000

1шт.

|$64

428-56-21170

CAB ASS'Y,(WITH CURTAIN) (EXCEPT JAPAN)

SN: 50001-50035

1шт.

|$65

428-U94-2311

CAB ASS'Y,(W/LOAD METER,RADIO) (TBG)

SN: 50036-UP

1шт.

|$66

428-U94-2310

CAB ASS'Y,(W/LOAD METER,RADIO) (TBG)

SN: 50001-50035

1шт.

|$67

428-56-21500

CAB ASS'Y

SN: 51001-UP

1шт.

|$68

428-56-21600

CAB ASS'Y

SN: 51001-UP

1шт.

|$$43

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-01A0 TO K0210-20A1.

-1шт.

1

22T-55-11630

NOZZLE ASS'Y,FRONT

SN: 50001-UP

1шт.

2

07270-20465

TUBE

SN: 50001-UP

1шт.

3

421-07-15110

JOINT

SN: 50001-UP

1шт.

4

421-54-15440

HOSE, 4300MM,WASHER

SN: 50001-UP

1шт.

5

22T-55-11630

NOZZLE ASS'Y,REAR

SN: 50001-UP

1шт.

6

07270-20465

TUBE

SN: 50001-UP

1шт.

7

421-07-15110

JOINT

SN: 50001-UP

1шт.

8

421-54-15440

HOSE, 4300MM,WASHER

SN: 50001-UP

1шт.

9

423-975-1140

CAP

SN: 50001-UP

4шт.

10

08037-01008

GROMMET

SN: 50001-UP

2шт.

11

08037-03614

GROMMET

SN: 50001-UP

1шт.

12

08037-02512

GROMMET

SN: 50001-UP

8шт.

Выбрано товаров: 55
