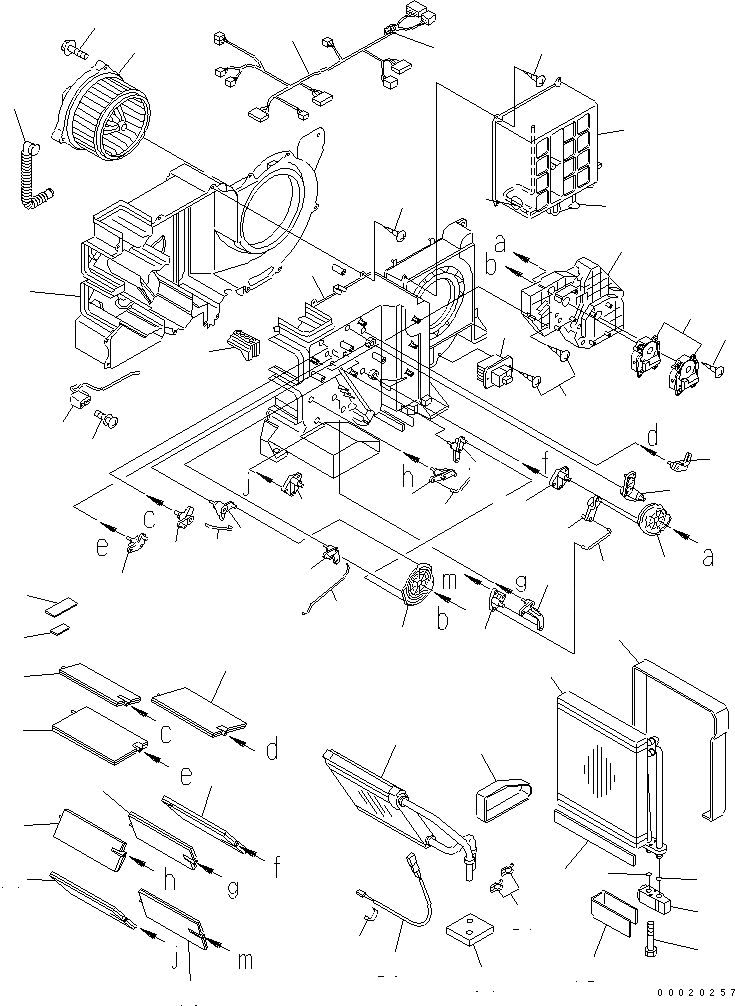

Запчасти Komatsu WA600-6R КОНДИЦ. ВОЗДУХА ВНУТР. ЧАСТИ КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$89

208-979-7610

AIR CONDITIONER

SN: 65001-UP

1шт.

1

ND245450-5112

CASE,COOLING

SN: 65001-UP

1шт.

2

ND245450-5121

CASE,COOLING

SN: 65001-UP

1шт.

3

ND116576-3810

PLATE

SN: 65001-UP

1шт.

4

ND116576-3820

PLATE

SN: 65001-UP

1шт.

|$94

ND446010-3131

EVAPORATOR ASS'Y,PARTS

SN: 65001-UP

1шт.

5

ND446600-0990

EVAPORATOR ASS'Y

SN: 65001-UP

1шт.

6

ND949142-0020

O-RING

SN: 65001-UP

1шт.

7

ND949142-0030

O-RING

SN: 65001-UP

1шт.

8

ND447500-1482

VALVE,EXPANSION

SN: 65001-UP

1шт.

9

ND949046-3100

BOLT

SN: 65001-UP

2шт.

10

ND146657-8841

PACKING

SN: 65001-UP

1шт.

11

ND146657-9811

PACKING

SN: 65001-UP

1шт.

12

ND146657-8850

PACKING

SN: 65001-UP

1шт.

13

ND116140-0050

CORE SUB ASS'Y,HEATER

SN: 65001-UP

1шт.

14

ND116660-7570

DOOR SUB ASS'Y

SN: 65001-UP

4шт.

15

ND116650-6850

DOOR SUB ASS'Y

SN: 65001-UP

4шт.

16

ND116780-2481

LEVER SUB ASS'Y,LINK

SN: 65001-UP

2шт.

17

ND116780-2491

LEVER SUB ASS'Y,LINK

SN: 65001-UP

2шт.

18

ND116780-2501

LEVER SUB ASS'Y,LINK

SN: 65001-UP

2шт.

19

ND116780-2510

LEVER SUB ASS'Y,LINK

SN: 65001-UP

3шт.

20

ND116781-3000

LEVER

SN: 65001-UP

2шт.

21

ND116780-2521

LEVER SUB ASS'Y,LINK

SN: 65001-UP

2шт.

22

ND116662-7670

SHAFT

SN: 65001-UP

3шт.

23

ND116662-7681

SHAFT

SN: 65001-UP

1шт.

24

ND116576-3851

PLATE

SN: 65001-UP

1шт.

25

ND116576-3861

PLATE

SN: 65001-UP

1шт.

26

ND063800-0300

SERVO MOTOR ASS'Y

SN: 65001-UP

2шт.

27

ND017231-0700

CLAMP

SN: 65001-UP

2шт.

28

ND170400-4670

SENSOR ASS'Y,THERMO

SN: 65001-UP

1шт.

29

ND145511-0040

HOLDER,REMOTE VALVE

SN: 65001-UP

1шт.

30

ND077800-0750

POWER TRANSISTOR

SN: 65001-UP

1шт.

31

ND146340-0531

BOX SUB ASS'Y

SN: 65001-UP

1шт.

32

ND063600-4580

SERVO MOTOR ASS'Y

SN: 65001-UP

1шт.

33

ND077500-5650

THERMISTOR ASS'Y

SN: 65001-UP

1шт.

34

ND146657-8860

PACKING

SN: 65001-UP

1шт.

35

ND116340-7030

MOTOR ASS'Y,FAN

SN: 65001-UP

1шт.

36

205-979-7260

PIPE

SN: 65001-UP

1шт.

37

ND949008-0330

SCREW,TAPPING

SN: 65001-UP

3шт.

38

ND949001-1730

SCREW,TAPPING

SN: 65001-UP

31шт.

39

ND246470-2451

HARNESS SUB ASS'Y,WIRE

SN: 65001-UP

1шт.

40

ND93950-05003

FUSE

SN: 65001-UP

1шт.

41

ND113550-0780

THERMOSTAT ASS'Y

SN: 65001-UP

1шт.

42

ND91370-04101

SCREW,WASHER

SN: 65001-UP

2шт.

43

ND146667-0300

PACKING

SN: 65001-UP

1шт.

44

ND146667-0380

PACKING

SN: 65001-UP

1шт.

45

ND146667-0440

PACKING

SN: 65001-UP

1шт.
