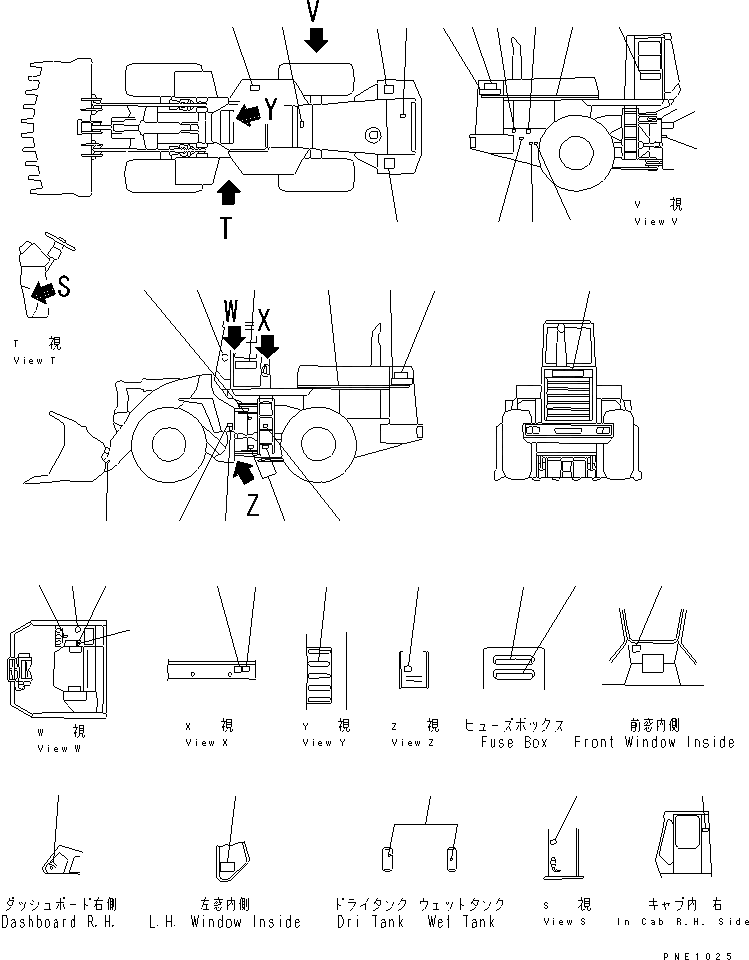

Запчасти Komatsu WA600-1 МАРКИРОВКА(№7-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-00100

PLATE¤ SAFETY,HYDRAULIC OIL TANK

SN: 10001-UP

1шт.

2

427-93-11380

PLATE¤ INSTRUCTION,AIR CLEANER

SN: 10159-UP

1шт.

3

421-03-11452

PLATE¤ CAUTION,BATTERY

SN: 10001-UP

2шт.

4

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

5

362-54-17180

PLATE¤ CAUTION,FAN BELT

SN: 10001-UP

1шт.

6

426-93-11340

PLATE¤ OPERATING,REMOTE GREASE

SN: 10001-UP

1шт.

7

426-93-11112

CHART¤ OIL

SN: 10710-UP

1шт.

8

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

|8

04418-13060

SCREW

SN: 10001-UP

4шт.

9

09101-00100

PLATE¤ INSTRUCTION,FUEL

SN: 10001-UP

1шт.

10

421-93-11810

PLATE¤ INSTRUCTION,RADIATOR DRAIN

SN: 10001-UP

1шт.

11

421-93-11350

PLATE¤ INSTRUCTION,ENGINE OIL DRAIN

SN: 10001-UP

1шт.

12

427-93-11190

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10865-UP

1шт.

13

426-93-11810

PLATE¤ OPERATING

SN: 10001-UP

1шт.

14

09690-C0224

PLATE¤ MARK,KOMATSU

SN: 11172-UP

2шт.

15

426-93-11140

STRIPE

SN: 10001-UP

2шт.

16

426-93-11370

PLATE¤ MARK,WA600

SN: 11172-UP

2шт.

17

428-93-11390

PLATE¤ MARK,AVANCE

SN: 11238-UP

2шт.

|17

416-93-11460

PLATE¤ NAME,AVANCE

SN: 11172-11237

2шт.

18

426-93-11320

PLATE¤ CAUTION,BUCKET

SN: 10001-UP

1шт.

19

423-93-11240

PLATE¤ CAUTION,KEEP OUT

SN: 10001-UP

2шт.

20

362-54-17230

PLATE¤ CAUTION,OIL HOSE

SN: 10001-UP

1шт.

21

09152-00100

PLATE¤ SAFETY,AIR RESERVOIR DRAIN

SN: 10001-UP

2шт.

22

424-93-11280

PLATE¤ CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

23

09690-C0630

PLATE¤ MARK,KOMATSU

SN: 11172-UP

1шт.

24

09685-00003

PLATE¤ OPERATING,LEVER LOCK

SN: 10001-UP

1шт.

25

421-93-11132

PLATE¤ OPERATING,WORK EQUIPMENT

SN: 10001-UP

1шт.

26

421-93-12230

PLATE¤ OPERATING,RELAY

SN: 10865-UP

1шт.

27

426-93-11730

PLATE¤ OPERATING,ENGINE OIL PRESSURE RELAY

SN: 10001-UP

1шт.

28

421-93-11181

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

29

424-93-11320

PLATE¤ CAUTION

SN: 10001-UP

1шт.

30

426-93-11330

PLATE¤ CAUTION,REMOTE GREASE

SN: 10001-UP

1шт.

31

362-54-17160

PLATE¤ CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

32

426-93-11161

PLATE¤ OPERATING,BREAKER

SN: 10865-UP

1шт.

33

426-93-11151

PLATE¤ OPERATING,BREAKER

SN: 10865-UP

1шт.

34

419-93-11890

PLATE¤ CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10082-UP

1шт.

35

09683-30070

PLATE¤ OPERATING,MAIN SWITCH

SN: 10001-UP

1шт.

36

426-93-11170

PLATE¤ OPERATING,MONITOR PANEL

SN: 10001-UP

1шт.

37

424-93-11120

PLATE¤ CAUTION,AIR TANK

SN: 10001-UP

3шт.

38

427-93-11210

PLATE¤ OPERATING,ENGINE STOP MOTOR RELAY

SN: 10001-UP

1шт.

39

428-S33-2541

PLATE¤ CAUTION,(WITH JOY STICK STEERING)

SN: 10865-UP

1шт.
