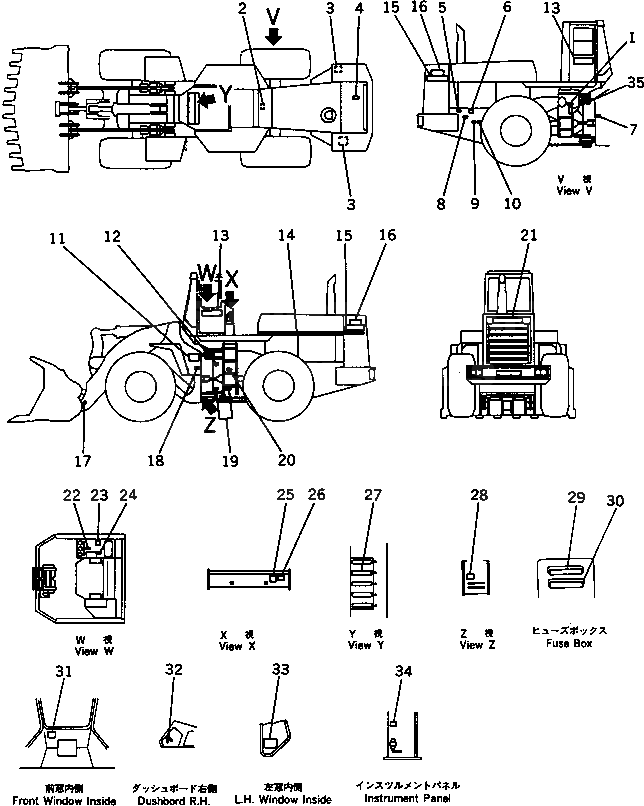

Запчасти Komatsu WA600-1 МАРКИРОВКА (С КАБИНОЙ) (ПОРТУГАЛ.) (СПЕЦ-Я TBG)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-02000

PLATE, SAFETY,HYDRAULIC OIL TANK

SN: 11061-UP

1шт.

2

09637-81161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10001-UP

1шт.

3

421-93-11730

PLATE, CAUTION,BATTERY

SN: 10001-UP

2шт.

4

09668-02000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

5

20T-98-22330

PLATE, SAFETY,FAN BELT

SN: 10001-UP

2шт.

6

426-93-11670

PLATE, OPERATING,REMOTE GREASE

SN: 10001-UP

1шт.

7

09602-22635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

7

04418-13060

SCREW

SN: 10001-UP

4шт.

8

09101-02000

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

9

421-93-11990

PLATE, CAUTION,RADIATOR DRAIN

SN: 10001-UP

1шт.

10

421-93-11710

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-UP

1шт.

11

426-93-11611

CHART, OIL

SN: 11061-UP

1шт.

12

427-V07-1130

PLATE, CAUTION,TRANSMISSION OIL LEVEL

SN: 11061-UP

1шт.

13

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-UP

2шт.

14

426-93-11140

STRIPE

SN: 10001-UP

2шт.

15

426-93-11120

PLATE, MARK,WA600

SN: 10001-UP

2шт.

16

426-93-11130

PLATE, MARK,SYMBOL

SN: 10001-UP

2шт.

17

426-93-11650

PLATE, CAUTION,BUCKET

SN: 10001-UP

1шт.

18

362-98-11620

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

2шт.

19

09152-02000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-UP

2шт.

20

424-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-UP

1шт.

21

09690-50710

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

22

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 10001-UP

1шт.

23

421-93-11132

PLATE, OPERATING,WORK EQUIPMENT

SN: 10001-UP

1шт.

24

421-93-12260

PLATE, OPERATING,RELAY

SN: 11061-UP

1шт.

25

421-93-11521

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

26

362-98-11150

PLATE, CAUTION

SN: 10001-UP

1шт.

27

426-93-11660

PLATE, OPERATING,REMOTE GREASE

SN: 10001-UP

1шт.

28

362-98-11160

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

29

426-93-11830

PLATE, OPERATING,BREAKER

SN: 11061-UP

1шт.

30

426-93-11840

PLATE, OPERATING,BREAKER

SN: 11061-UP

1шт.

31

419-93-11990

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

32

09683-21070

PLATE, OPERATING,MAIN SWITCH

SN: 10001-UP

1шт.

33

426-93-11640

PLATE, OPERATING,MONITOR PANEL

SN: 10001-UP

1шт.

34

427-V07-1280

PLATE,ENGINE STOP MOTOR

SN: 10335-UP

1шт.

35

426-93-11820

PLATE, CAUTION,AIR VALVE

SN: 11061-UP

1шт.
