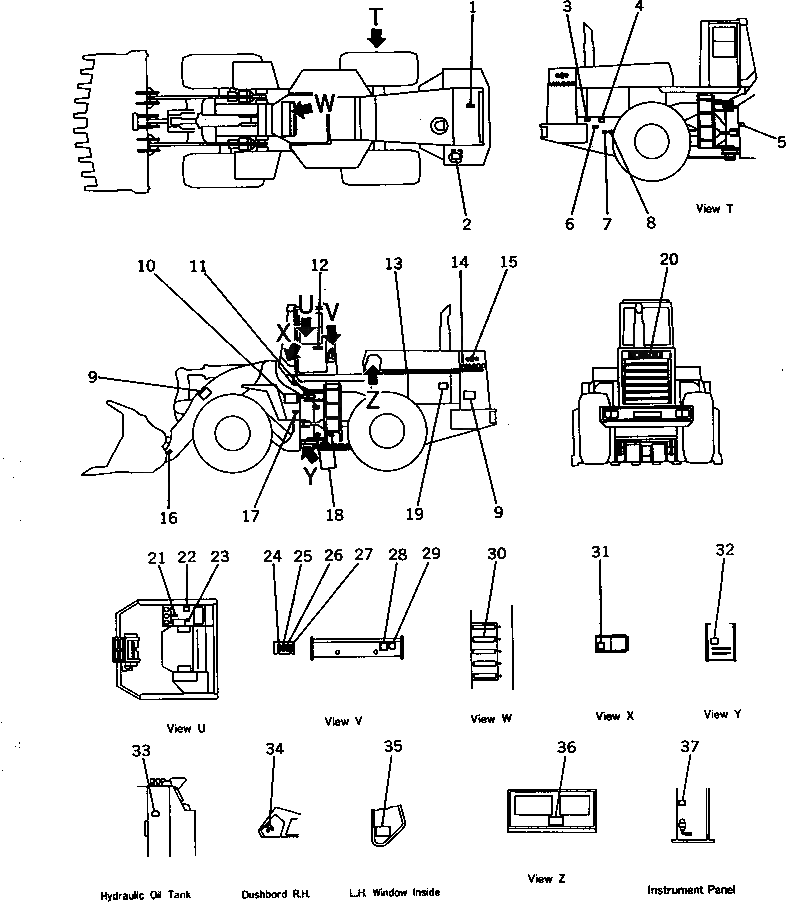

Запчасти Komatsu WA600-1 МАРКИРОВКА (С КАБИНОЙ) (ПОРТУГАЛ.) (СПЕЦ-Я TBG)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-02000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-@

1шт.

2

421-93-11730

PLATE, CAUTION,BATTERY

SN: 10001-@

2шт.

3

20T-98-22330

PLATE, SAFETY,FAN BELT

SN: 10001-@

2шт.

4

426-93-11670

PLATE, OPERATING,REMOTE GREASE

SN: 10001-@

1шт.

5

09602-22635

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-@

1шт.

5

04418-13060

SCREW

SN: 10001-@

4шт.

6

09101-02000

PLATE, CAUTION,FUEL

SN: 10001-@

1шт.

7

421-93-11990

PLATE, CAUTION,RADIATOR DRAIN

SN: 10001-@

1шт.

8

421-93-11710

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-@

1шт.

9

419-93-11950

PLATE, CAUTION,KEEP OUT

SN: 10001-11060

4шт.

10

426-93-11611

CHART, OIL

SN: 10759-@

1шт.

10

426-93-11610

CHART, OIL

SN: 10001-10758

1шт.

11

425-93-11320

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-11060

1шт.

12

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-@

2шт.

13

426-93-11140

STRIPE

SN: 10001-@

2шт.

14

426-93-11120

PLATE, MARK,WA600

SN: 10001-@

2шт.

15

426-93-11130

PLATE, MARK,SYMBOL

SN: 10001-@

2шт.

16

426-93-11650

PLATE, CAUTION,BUCKET

SN: 10001-@

1шт.

17

362-98-11620

PLATE, CAUTION,KEEP OUT

SN: 10001-@

2шт.

18

09152-02000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-@

2шт.

19

424-93-11690

PLATE, CAUTION,BRAKE OIL

SN: 10001-@

1шт.

20

09690-50710

PLATE, MARK,KOMATSU

SN: 10001-@

1шт.

21

09685-00003

PLATE, OPERATING,LEVER LOCK

SN: 10001-@

1шт.

22

421-93-11132

PLATE, OPERATING,WORK EQUIPMENT

SN: 10001-@

1шт.

23

425-93-11350

PLATE, OPERATING,RELAY

SN: 10001-11060

1шт.

24

421-93-11741

PLATE, OPERATING,BREAKER

SN: 10001-11060

1шт.

25

426-93-11630

PLATE, OPERATING,BREAKER

SN: 10001-11060

1шт.

26

426-93-11620

PLATE, OPERATING,BREAKER

SN: 10001-11060

1шт.

27

421-93-11771

PLATE, CAUTION,BREAKER

SN: 10001-11060

1шт.

28

419-93-11520

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-@

1шт.

29

362-98-11150

PLATE, CAUTION

SN: 10001-@

1шт.

30

426-93-11660

PLATE, OPERATING,REMOTE GREASE

SN: 10001-@

1шт.

31

419-93-11531

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-11060

1шт.

32

362-98-11160

PLATE, CAUTION,FRAME LOCK

SN: 10001-@

1шт.

33

09653-02000

PLATE, SAFETY,HYDRAULIC OIL TANK

SN: 10001-@

1шт.

34

09683-21070

PLATE, OPERATING,MAIN SWITCH

SN: 10001-@

1шт.

35

426-93-11640

PLATE, OPERATING,MONITOR PANEL

SN: 10001-@

1шт.

36

09637-81161

PLATE, INSTRUCTION,AIR CLEANER

SN: 10001-@

1шт.

37

427-V07-1280

PLATE,ENGINE STOP WIPER MOTOR

SN: 10001-@

1шт.
