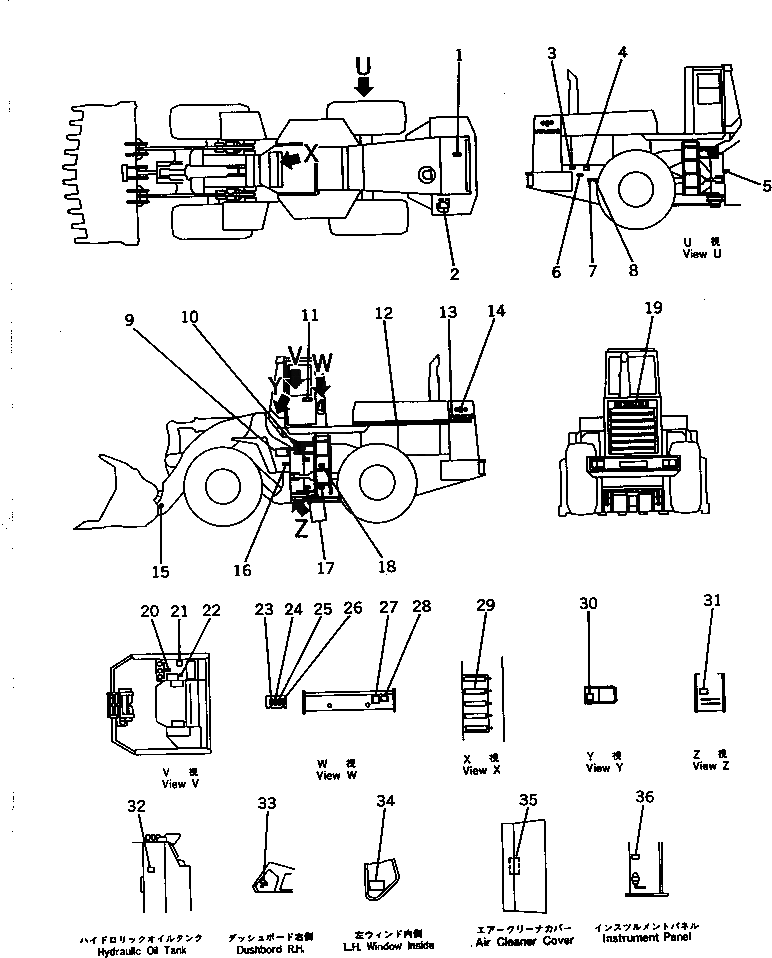

Запчасти Komatsu WA600-1 МАРКИРОВКА (С КАБИНОЙ) (ИСПАНИЯ) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09668-01000

PLATE, SAFETY,RADIATOR CAP

SN: 10001-UP

1шт.

2

421-V00-1120

PLATE, CAUTION,BATTERY

SN: 10001-UP

1шт.

3

419-V00-1140

PLATE, CAUTION,FAN BELT

SN: 10001-UP

1шт.

4

426-V00-1140

PLATE, OPERATING,REMOTE GREASE

SN: 10001-UP

1шт.

5

09601-10835

PLATE, NAME,(LIMITED SUPPLY)

SN: 10001-UP

1шт.

5

04418-13060

SCREW

SN: 10001-UP

4шт.

6

09101-01000

PLATE, CAUTION,FUEL

SN: 10001-UP

1шт.

7

421-V00-1190

PLATE, CAUTION,RADIATOR DRAIN

SN: 10001-UP

1шт.

8

421-V00-1180

PLATE, CAUTION,ENGINE OIL DRAIN

SN: 10001-UP

1шт.

9

426-V00-1111

CHART,OIL

SN: 10759-UP

1шт.

9

426-V00-1110

CHART,OIL

SN: 10001-10758

1шт.

10

421-V00-1310

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

11

09690-50280

PLATE, MARK,KOMATSU

SN: 10001-UP

2шт.

12

426-93-11140

STRIPE

SN: 10001-UP

2шт.

13

426-93-11120

PLATE, MARK,WA600

SN: 10001-UP

2шт.

14

426-93-11130

PLATE, MARK,SYMBOL

SN: 10001-UP

2шт.

15

426-V00-1150

PLATE, CAUTION,BUCKET

SN: 10001-UP

1шт.

16

419-V00-1230

PLATE, CAUTION,KEEP OUT

SN: 10001-UP

2шт.

17

09152-01000

PLATE, SAFETY,AIR RESERVOIR DRAIN

SN: 10001-UP

2шт.

18

426-V00-1140

PLATE, OPERATING,BRAKE OIL

SN: 10001-UP

1шт.

19

09690-50710

PLATE, MARK,KOMATSU

SN: 10001-UP

1шт.

20

09685-00008

PLATE, OPERATING,LEVER LOCK

SN: 10001-UP

1шт.

21

421-93-11132

PLATE, OPERATING,WORK EQUIPMENT

SN: 10001-UP

1шт.

22

423-V00-1120

PLATE, OPERATING,RELAY

SN: 10001-UP

1шт.

23

421-V00-1130

PLATE, OPERATING,BREAKER

SN: 10001-UP

1шт.

24

426-V00-1170

PLATE, OPERATING,BREAKER

SN: 10001-UP

1шт.

25

426-V00-1160

PLATE, OPERATING,BREAKER

SN: 10001-UP

1шт.

26

421-V00-1160

PLATE, OPERATING,BREAKER

SN: 10001-UP

1шт.

27

419-V00-1150

PLATE, SAFETY,STARTING AND AFTER OPERATING

SN: 10001-UP

1шт.

28

419-V00-1120

PLATE, CAUTION

SN: 10001-UP

1шт.

29

426-V00-1130

PLATE, OPERATING,REMOTE GREASE

SN: 10001-UP

1шт.

30

419-V00-1210

PLATE, CAUTION,TRANSMISSION OIL TEMPERATURE

SN: 10001-UP

1шт.

31

419-V00-1130

PLATE, CAUTION,FRAME LOCK

SN: 10001-UP

1шт.

32

09653-01000

PLATE, SAFETY,HYDRAULIC OIL TANK

SN: 10001-UP

1шт.

33

09683-11070

PLATE, OPERATING,MAIN SWITCH

SN: 10001-UP

1шт.

34

426-V00-1120

PLATE, OPERATING,MONITOR PANEL

SN: 10001-UP

1шт.

35

09637-70161

PLATE, INSTRUCTION,AIR CHAMBER

SN: 10001-UP

1шт.

36

427-V00-1280

PLATE, OPERATING,ENGINE STOP WIPER MOTOR

SN: 10001-UP

1шт.
