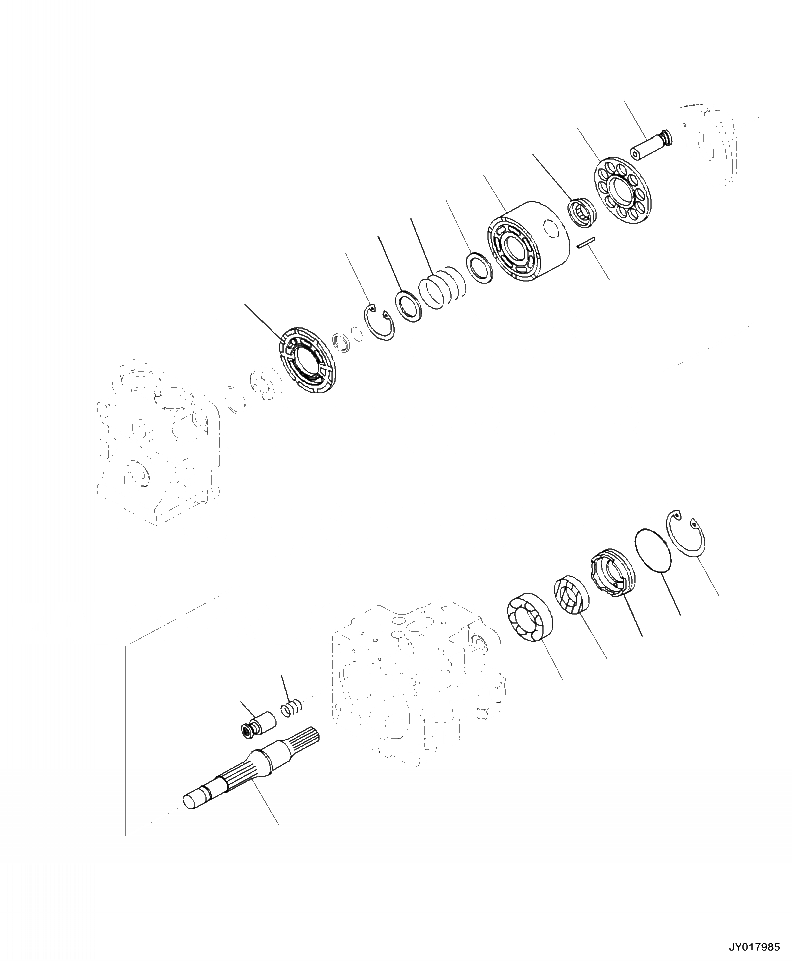

Запчасти Komatsu WA500-7 H-A ГИДР. НАСОС. НАСОС ВЕНТИЛЯТОРА (/) ГИДРАВЛИКА

|$18

PUMP ASSEMBLY (SEE FIG. H0210-14A0 ) .PUMP SUBASSEMBLY (SEE FIG. H0210-14A0 )

0

-1шт.

1

708-1T-12430

SHAFT

1шт.

2

706-73-40890

BEARING

1шт.

3

708-1S-12340

CASE

1шт.

4

708-21-12970

SEAL, OIL

1шт.

5

708-1S-12350

O-RING

1шт.

6

04065-06220

RING, SNAP

1шт.

7

708-1T-13440

CYLINDER BLOCK

1шт.

8

708-1T-13460

PLATE, VALVE

1шт.

9

708-1T-13710

SPACER

2шт.

10

708-3S-13430

SPRING

1шт.

11

04065-03515

RING, SNAP

1шт.

12

708-1T-13690

GUIDE, RETAINER

1шт.

13

708-1S-13380

PIN

3шт.

14

708-1T-13670

RETAINER, SHOE

1шт.

15

708-1S-13520

PISTON SUBASSEMBLY

10шт.

16

708-3S-14290

PISTON

1шт.

17

708-1S-14241

SPRING

1шт.

|$19

18

-1шт.

|$20

F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY.

19

-1шт.
