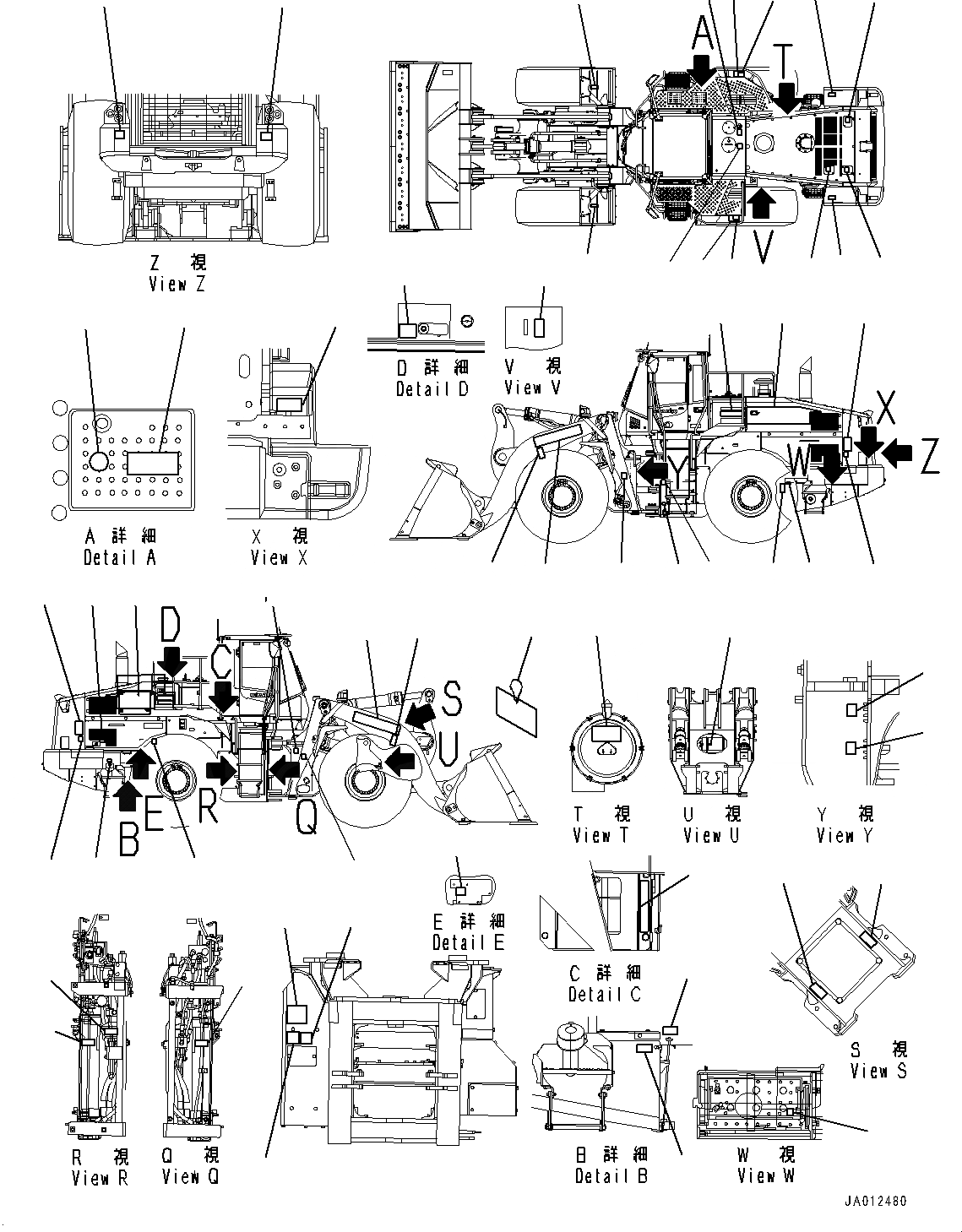

Запчасти Komatsu WA500-7 МАРКИРОВКА (№-) МАРКИРОВКА, ФРАНЦИЯ, ДЛЯ QUEBEC CANADA, С ЗАДН. ПОЛН. КРЫЛО

1

09653-05001

Plate, Warning, High Temperature

SN: 10001-UP

1шт.

2

09668-05001

Plate, Warning, Hot Water

SN: 10001-UP

3шт.

3

09667-05001

Plate, Caution, Rotating Object

SN: 10001-UP

2шт.

4

09805-15000

Plate, Caution, Hood

SN: 10001-UP

1шт.

5

09812-05000

Plate, Danger, Keep a Safe Distance

SN: 10001-UP

2шт.

6

425-93-41350

Plate

SN: 10001-UP

1шт.

7

09808-05000

Plate, Warning, Battery Cables

SN: 10001-UP

2шт.

8

09162-25000

Plate, Danger, Keep Off

SN: 10001-UP

2шт.

9

09161-25000

Plate, Warning, Articulation Lock

SN: 10001-UP

1шт.

10

09637-30263

Plate, Service Instruction, Air Cleaner

SN: 10001-UP

1шт.

11

6217-71-6490

Plate, Fuel Filter Replace

SN: 10001-UP

1шт.

12

09667-55000

Plate, Caution, Rotating Object

SN: 10001-UP

1шт.

13

09642-15000

Plate, Service Instruction, Engine Coolant AF-NAC

SN: 10001-UP

1шт.

14

20Y-00-41770

Plate

SN: 10001-UP

1шт.

14

423-93-51290

Plate Assembly

SN: 10001-UP

1шт.

15

Plate, Parking Brake Emergency Release Method

SN: 10001-UP

1шт.

16

Plate, Warning, Parking Brake Emergency Release

SN: 10001-UP

1шт.

17

09805-05000

Plate, Caution, Fender

SN: 10001-UP

2шт.

17

425-933-4130

Plate

SN: 10001-UP

1шт.

18

Plate

SN: 10001-UP

1шт.

19

Plate

SN: 10001-UP

1шт.

20

Plate

SN: 10001-UP

1шт.

21

Plate, Radiator Drain Inside

SN: 10001-UP

1шт.

22

Plate, Radiator Drain

SN: 10001-UP

1шт.

23

Plate

SN: 10001-UP

1шт.

24

Plate

SN: 10001-UP

1шт.

25

09652-51241

Plate, Caution, Diesel Fuel

SN: 10001-UP

1шт.

26

09669-0000A

Plate, Symbol, Coolant Filler

SN: 10001-UP

1шт.

27

425-03-43560

Plate, Radiator Reserve Tank Level

SN: 10001-UP

1шт.

28

6245-81-9410

Plate, Fuel Priming Pump Switch

SN: 10001-UP

1шт.

28

425-93-41710

Plate Assembly

SN: 10001-UP

1шт.

29

09960-01601

Mark, Lift Point and Tie Down Point Marks

SN: 10001-UP

4шт.

30

425-93-41280

Lubrication Chart

SN: 10001-UP

1шт.

31

09807-C1201

Plate, Danger, Keep Out under Work Equipment

SN: 10001-UP

2шт.

32

09659-55000

Plate, Warning, Explosion Hazard

SN: 10001-UP

4шт.

33

09664-20012

Plate, Danger, Battery

SN: 10001-UP

2шт.

34

425-93-43110

Plate, Machine Model

SN: 10001-UP

1шт.

35

425-93-43120

Plate, Machine Model

SN: 10001-UP

1шт.

36

425-93-43140

Plate, Stripe

SN: 10001-UP

1шт.

37

09690-P1120

Plate, Komatsu Logo

SN: 10001-UP

2шт.

38

09602-10002

Plate, Name (Limited Supply)

SN: 10001-UP

1шт.

39

04418-13060

Screw

SN: 10001-UP

4шт.

40

14X-98-35181

Plate, Reflector

SN: 10001-UP

2шт.

41

09963-05001

Tag, Danger, Do Not Operate

SN: 10001-UP

1шт.

42

09805-05000

Plate, Caution, Fender

SN: 10001-UP

2шт.

43

09685-00001

Plate, Symbol, Lock/Unlock

SN: 10001-UP

2шт.
