Запчасти Komatsu WA500-7 МАРКИРОВКА (№-) МАРКИРОВКА, АНГЛ., США И PUERTO RICO, С ЗАДН. ПОЛН. КРЫЛО

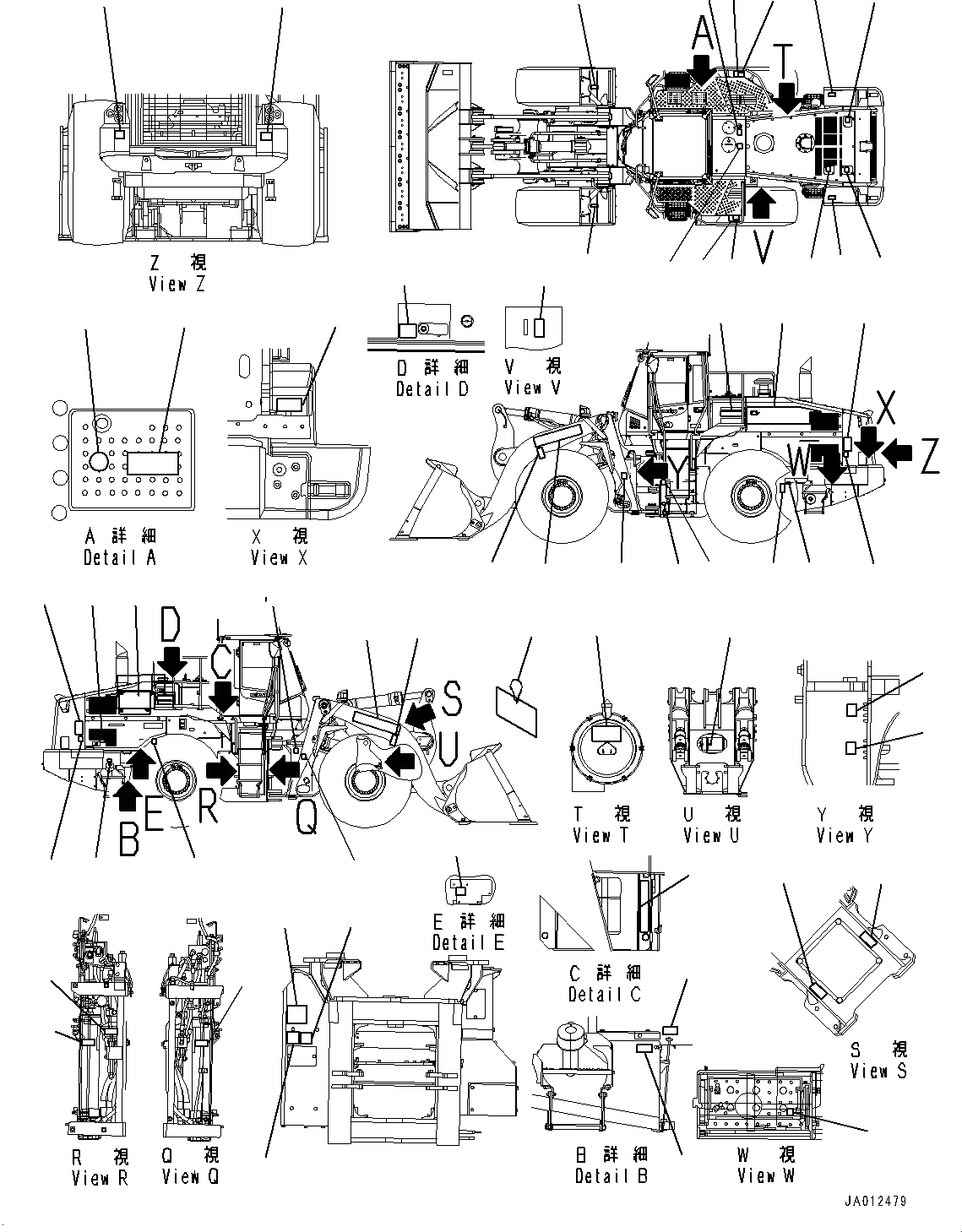

Схема запчастей Komatsu WA500-7 - МАРКИРОВКА (№-) МАРКИРОВКА, АНГЛ., США И PUERTO RICO, С ЗАДН. ПОЛН. КРЫЛО
2
7
2
2
7
33
30
28
27
21
20
19
18
29
29
32
32
32
35
16
14
11
5
3
41
10
23
22
32
8
37
31
38
39
36
34
26
25
5
3
37
31
24
9
8
29
17
13
12
6
40
40
15
15
4
1
42
43
43
42

Артикул

Название

Примечание

Количество

|$0

425-93-41680

Plate Assembly

SN: 10001-UP

1шт.

1

09653-03001

Plate, Warning, High Temperature

SN: 10001-UP

1шт.

2

09668-03001

Plate, Warning, Hot Water

SN: 10001-UP

3шт.

3

09667-03001

Plate, Caution, Rotating Object

SN: 10001-UP

2шт.

4

09805-13000

Plate, Caution, Hood

SN: 10001-UP

1шт.

5

09812-03000

Plate, Danger, Keep a Safe Distance

SN: 10001-UP

2шт.

6

425-93-41350

Plate, Air Cleaner Cover Lock

SN: 10001-UP

1шт.

6

425-93-41690

Plate

SN: 10001-UP

1шт.

7

09808-03000

Plate, Warning, Battery Cables

SN: 10001-UP

2шт.

8

09162-23000

Plate, Danger, Keep Off

SN: 10001-UP

2шт.

9

09161-23000

Plate, Warning, Articulation Lock

SN: 10001-UP

1шт.

10

09637-30163

Plate, Service Instruction, Air Cleaner

SN: 10001-UP

1шт.

11

6217-71-6470

Plate, Fuel Filter Replace

SN: 10001-UP

1шт.

12

09667-53000

Plate, Caution, Rotating Object

SN: 10001-UP

1шт.

13

09642-13000

Plate, Service Instruction, Engine Coolant AF-NAC

SN: 10001-UP

1шт.

14

20Y-00-41340

Plate, Pre Filter Caution

SN: 10001-UP

1шт.

15

09805-03000

Plate, Caution, Fender

SN: 10001-UP

2шт.

16

09652-31241

Plate, Caution, Diesel Fuel

SN: 10001-UP

1шт.

17

09669-0000A

Plate, Symbol, Coolant Filler

SN: 10001-UP

1шт.

18

425-03-43560

Plate, Radiator Reserve Tank Level, Radiator reservoir tank Level

SN: 10001-UP

1шт.

19

6245-81-9410

Plate, Fuel Priming Pump Switch, Fuel Feed Pump Timer

SN: 10001-UP

1шт.

20

Plate, Parking Brake Emergency Release1

SN: 10001-UP

1шт.

21

Plate, Parking Brake Emergency Release2

SN: 10001-UP

1шт.

22

Plate, Greasing1

SN: 10001-UP

1шт.

23

Plate, Greasing2

SN: 10001-UP

1шт.

24

Plate, Greasing3

SN: 10001-UP

1шт.

25

Plate, Radiator Drain, Inside

SN: 10001-UP

1шт.

26

Plate, Radiator Drain

SN: 10001-UP

1шт.

27

Plate, Engine Oil Drain

SN: 10001-UP

1шт.

28

Plate, Fuel Tank Drain

SN: 10001-UP

1шт.

28

425-93-41710

Plate Assembly

SN: 10001-UP

1шт.

29

09960-01601

Mark, Lift Point and Tie Down Point Marks

SN: 10001-UP

4шт.

30

425-93-41280

Lubrication Chart

SN: 10001-UP

1шт.

31

09807-C1201

Plate, Danger, Keep Out under Work Equipment

SN: 10001-UP

2шт.

32

09659-53000

Plate, Warning, Explosion Hazard

SN: 10001-UP

4шт.

33

09664-30012

Plate, Danger, Battery

SN: 10001-UP

2шт.

34

425-93-43110

Plate, Machine Model,L.H.

SN: 10001-UP

1шт.

35

425-93-43120

Plate, Machine Model,R.H.

SN: 10001-UP

1шт.

36

425-93-43140

Plate, Stripe

SN: 10001-UP

1шт.

37

09690-P1120

Plate, Komatsu Logo

SN: 10001-UP

2шт.

38

09602-10002

Plate, Name (Limited Supply)

SN: 10001-UP

1шт.

39

04418-13060

Screw

SN: 10001-UP

4шт.

40

14X-98-35181

Plate, Reflector

SN: 10001-UP

2шт.

41

09963-03001

Tag, Danger, Do Not Operate

SN: 10001-UP

1шт.

42

09805-03000

Plate, Caution, Fender

SN: 10001-UP

2шт.

43

09685-00001

Plate, Symbol, Lock/Unlock

SN: 10001-UP

2шт.

Выбрано товаров: 46
