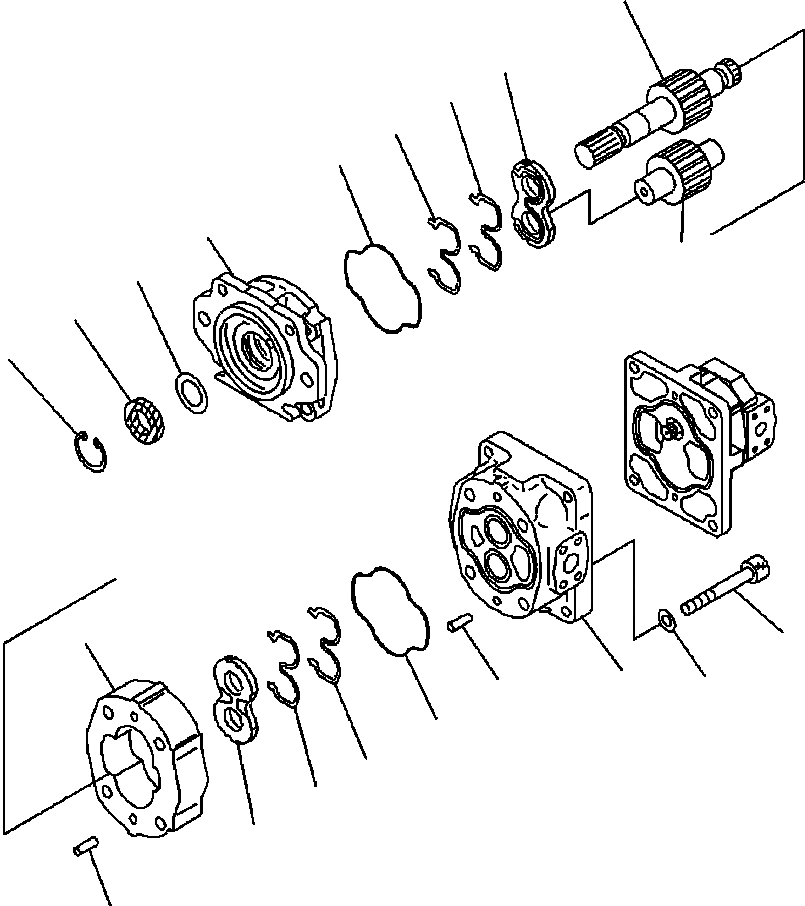

Запчасти Komatsu WA500-6 H-A ГИДР. НАСОС. ГИДРОТРАНСФОРМАТОР И PPC (/) ГИДРАВЛИКА

|$0

705-52-31230

PUMP ASSEMBLY (SAR112+28)

SN: A93001--UP

-1шт.

|$1

705-22-41050

PUMP ASSEMBLY (SAR112)

SN: A93001--UP

1шт.

1

705-18-03620

BRACKET ASSEMBLY

SN: A93001--UP

1шт.

|$3

705-18-03350

BUSHING

SN: A93001--UP

2шт.

2

705-17-41010

CASE, GEAR

SN: A93001--UP

1шт.

3

705-18-03240

CARRIER

SN: A93001--UP

1шт.

|$6

705-18-03350

BUSHING

SN: A93001--UP

2шт.

4

705-19-41630

GEAR, DRIVE

SN: A93001--UP

1шт.

5

705-17-41810

GEAR, DRIVEN

SN: A93001--UP

1шт.

6

705-17-03610

PLATE, SIDE

SN: A93001--UP

2шт.

7

705-17-03443

RING, BACK-UP

SN: A93001--UP

2шт.

8

705-17-03473

SEAL

SN: A93001--UP

2шт.

9

705-17-03381

O-RING

SN: A93001--UP

2шт.

10

04020-01228

PIN, DOWEL

SN: A93001--UP

4шт.

11

01253-61645

BOLT, SOCKET HEAD

SN: A93001--UP

4шт.

12

01643-51645

WASHER

SN: A93001--UP

4шт.

13

705-17-03870

PLATE

SN: A93001--UP

1шт.

14

705-17-03811

SEAL, OIL

SN: A93001--UP

1шт.

15

04065-05220

RING, SNAP

SN: A93001--UP

1шт.

|$19

19

-1шт.

|$20

F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY.

20

-1шт.
