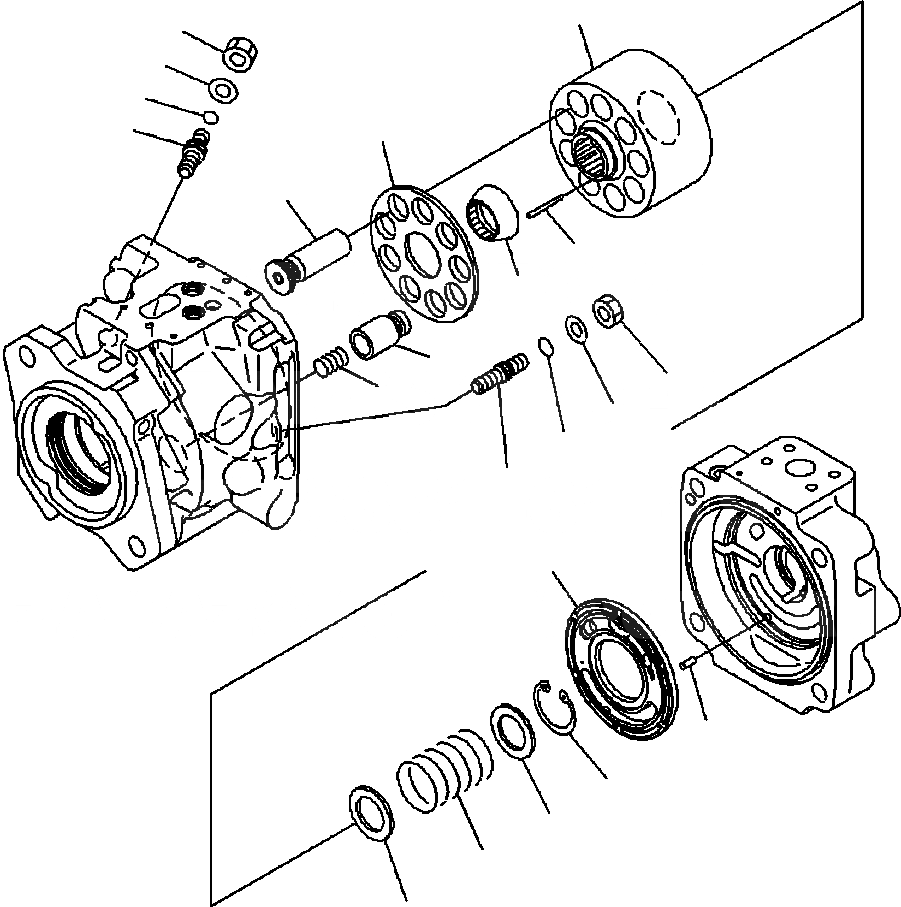

Запчасти Komatsu WA500-6 H-A ГИДР. НАСОС. РУЛЕВ. УПРАВЛЕНИЕ (БЛОК ЦИЛИНДРОВ И ПОРШЕНЬ) (/) ГИДРАВЛИКА

|$0

STEERING PUMP ASSEMBLY (SEE FIG. H0210-01A0 )

SN: A92001--UP

-1шт.

|$1

PUMP SUBASSEMBLY (SEE FIG. H4420-01A0 )

SN: A92001--UP

-1шт.

1

708-1W-43310

BLOCK, CYLINDER

SN: A92001--UP

1шт.

2

708-1W-43620

PLATE, VALVE

SN: A92001--UP

1шт.

3

720-68-19610

PIN

SN: A92001--UP

1шт.

4

708-1W-43130

SEAT

SN: A92001--UP

2шт.

5

708-1W-43140

SPRING

SN: A92001--UP

1шт.

6

04065-04818

RING, SNAP

SN: A92001--UP

1шт.

7

708-1W-43350

GUIDE, RETAINER

SN: A92001--UP

1шт.

8

708-3T-13360

PIN

SN: A92001--UP

3шт.

9

708-1W-43341

RETAINER, SHOE

SN: A92001--UP

1шт.

10

708-1U-13310

PISTON SUBASSEMBLY

SN: A92001--UP

9шт.

11

708-1W-44120

PISTON SUBASSEMBLY

SN: A92001--UP

1шт.

12

708-3T-14120

SPRING

SN: A92001--UP

1шт.

13

708-1U-14221

SCREW

SN: A92001--UP

2шт.

14

07000-12011

O-RING

SN: A92001--UP

2шт.

15

01643-31232

WASHER

SN: A92001--UP

2шт.

16

01582-11210

NUT

SN: A92001--UP

2шт.

|$18

18

-1шт.

|$19

F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY.

19

-1шт.
