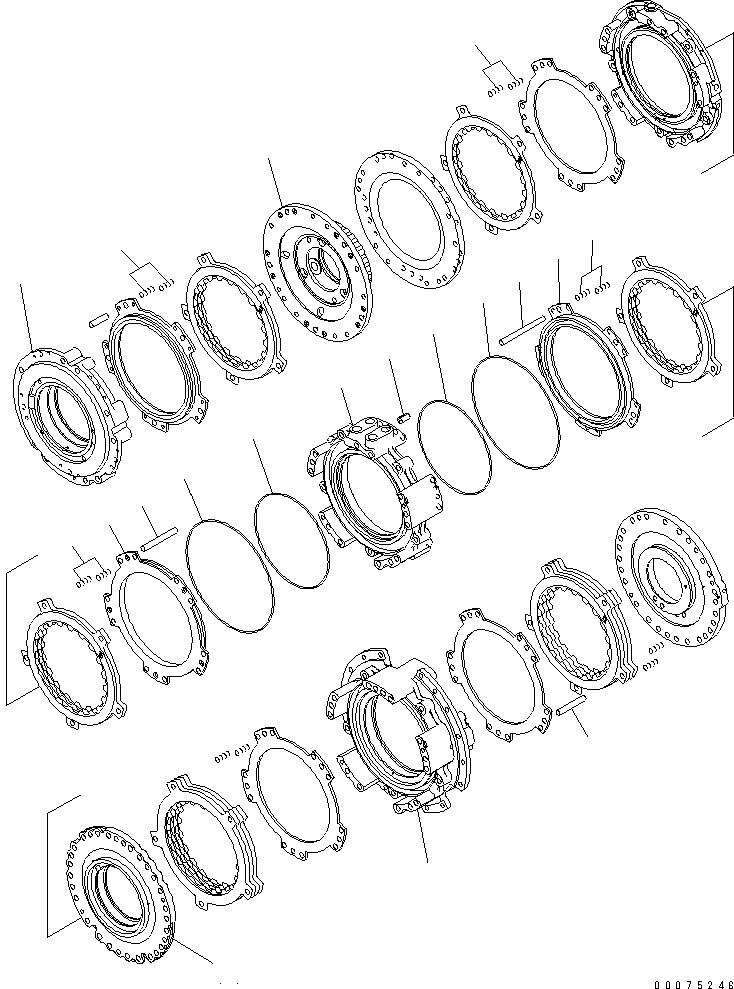

Запчасти Komatsu WA500-3LK ТРАНСМИССИЯ ASSEMBLY (4 И 3 КОЖУХ) СИЛОВАЯ ПЕРЕДАЧА И КОНЕЧНАЯ ПЕРЕДАЧА

|$1

TRANSMISSION ASS'Y,(SEE FIG. F4320-51A0)

SN: A71001-UP

-1шт.

1

425-15-21151

HOUSING,4TH AND 3RD

SN: A71001-UP

1шт.

2

425-15-22760

PISTON,4TH

SN: A71001-UP

1шт.

3

113-15-12870

RING,SEAL (KIT)

SN: A71001-UP

1шт.

4

144-15-22881

RING,SEAL (KIT)

SN: A71001-UP

2шт.

5

425-15-22780

PISTON,3RD

SN: A71001-UP

1шт.

6

569-15-12860

RING,SEAL (KIT)

SN: A71001-UP

1шт.

7

569-15-41310

SLEEVE

SN: A71001-UP

12шт.

8

562-15-11270

PIN

SN: A71001-UP

5шт.

9

135-15-22820

PIN

SN: A71001-UP

5шт.

10

421-15-11270

PIN,(D=15.0,L=125.0)

SN: A71001-UP

5шт.

11

421-15-12910

SPRING

SN: A71001-UP

30шт.

12

421-15-12910

SPRING

SN: A71001-UP

10шт.

13

HOUSING,(SEE FIG. F4320-51A0)

SN: A71001-UP

-1шт.

14

CAGE,(SEE FIG. F4320-54A0)

SN: A71001-UP

-1шт.

15

HOUSING,(SEE FIG. F4320-53A0)

SN: A71001-UP

-1шт.

16

CARRIER,(SEE FIG. F4320-58A0)

SN: A71001-UP

-1шт.

|$18

425-15-05410

SERVICE KIT,TRANSMISSION

SN: A71001-UP

1шт.
