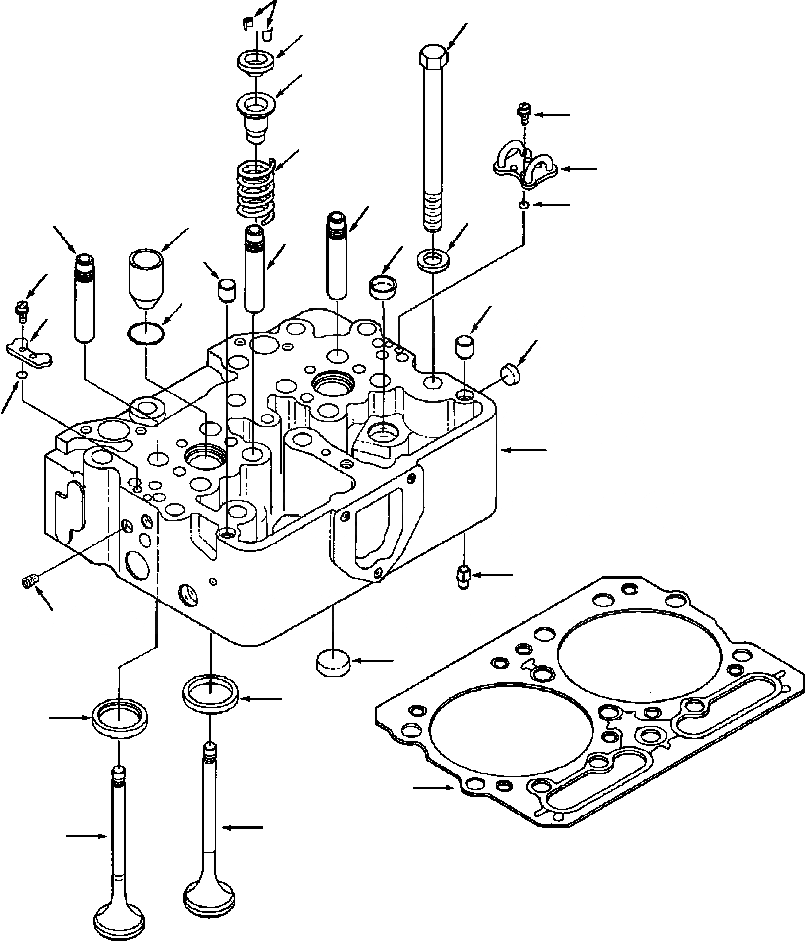

Запчасти Komatsu WA500-1LE ГОЛОВКА ЦИЛИНДРОВ ГОЛОВКА ЦИЛИНДРОВ

1

1238 124 H1

PLUG, PIPE (1/8 NPT)

10шт.

2

1240 019 H1

PIN, GROVE

6шт.

3

1240 068 H1

BOLT ( 1/4 - 20x1/2 INCH)

12шт.

4

1307 427 H1

O-RING

12шт.

5

1238 268 H1

PLATE, COVER

2шт.

6

1238 343 H1

CONNECTION, FUEL CROSSOVER

2шт.

7

1295 488 H1

BOLT (11/16 - 16x7 1/4 INCH)

36шт.

8

1241 837 H1

WASHER, PLAIN (5/8 INCH)

36шт.

|$8

1307 413 H91

ASSEMBLY, CYLINDER HEAD (TLA)

3шт.

9

1307 414 H1

RETAINER, VALVE SPRING

8шт.

10

1307 415 H1

SEAL, VALVE STEM

8шт.

|$11

1307 419 H1

KIT, INTAKE VALVE

4шт.

11

NSS

VALVE, INTAKE

4шт.

12

1307 418 H1

COLLET, HALF VALVE

8шт.

|$14

1307 416 H1

KIT, EXHAUST VALVE

4шт.

12

1307 418 H1

COLLECT, HALF VALVE

8шт.

14

NSS

VALVE, EXHAUST

4шт.

13

1307 417 H1

SPRING VALVE

8шт.

15

1238 336 H2

PLUG, EXPANSION

3шт.

16

6736-21-1820

PLUG, EXPANSION (1 INCH)

6шт.

17

1239 149 H1

SEAL, O-RING

2шт.

18

1246 410 H1

DOWEL, RING

2шт.

19

1307 421 H1

GUIDE, VALVE STEM INTAKE

8шт.

20

1307 422 H1

INSERT, VALVE INTAKE (BLUE)

4шт.

21

1241 724 H1

SLEEVE, INJECTOR

2шт.

22

NSS

HEAD, CYLINDER

1шт.

23

1307 424 H1

INSERT, VALVE EXHAUST

4шт.

24

1295 489 H1

PLUG, EXPANSION (32.1 MM)

2шт.

25

1253 429 H3

GASKET, CYLINDER HEAD

3шт.
