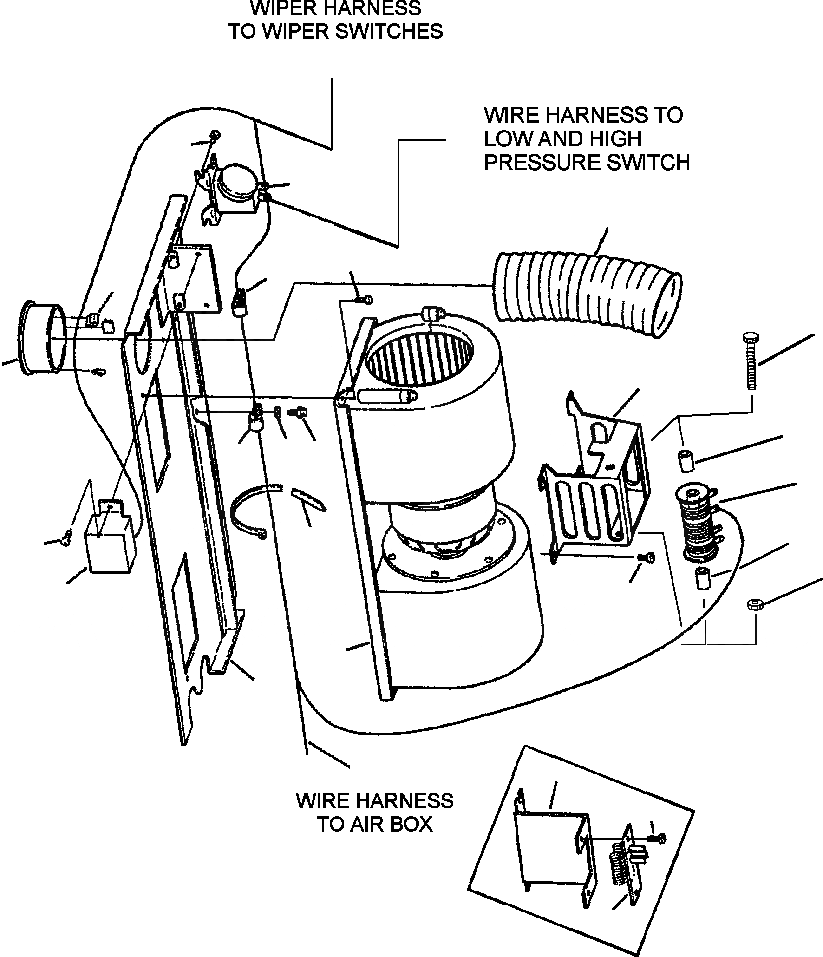

Запчасти Komatsu WA500-1LC FIG. K7-A КАБИНА - MODEL NOS. CD И CJ - КОНДИЦ. ВОЗДУХА И ОБОГРЕВАТЕЛЬ. ВЕНТИЛЯТОР БЛОК КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

425-963-A630

PLATE, FAN ASSEMBLY

SN: A60016-UP-UP

1шт.

2

425-963-AE30

BLOWER ASSEMBLY - EARLIER VERSION

SN: A60016-UP-UP

1шт.

|$3

OR

-1шт.

2

425-963-AE31

BLOWER ASSEMBLY - CURRENT VERSION

SN: A60016-UP-UP

1шт.

3

425-963-A690

BRACKET, RESISTOR MOUNTING - Z-TYPE

SN: A60016-UP-UP

1шт.

4

425-963-A691

BRACKET, RESISTOR MOUNTING - U-TYPE

SN: A60016-UP-UP

1шт.

5

425-963-A970

ADAPTER, FLEX HOSE

SN: A60016-UP-UP

1шт.

6

425-963-AA30

PAD, RESISTOR - EARLIER VERSION

SN: A60016-UP-UP

1шт.

7

425-963-AA31

RESISTOR - CURRENT VERSION

SN: A60016-UP-UP

1шт.

8

26 288 R1

BOLT - RESISTOR

SN: A60016-UP-UP

1шт.

9

425-963-AF30

BUSHING - RESISTOR

SN: A60016-UP-UP

2шт.

10

9413 992

NUT - RESISTOR

SN: A60016-UP-UP

1шт.

11

425-963-A850

BOLT, TORX TRUSS - #10-32 X 1/2 IN.

SN: A60016-UP-UP

2шт.

12

425-963-AF40

SCREW - MOUNTING

SN: A60016-UP-UP

4шт.

13

425-963-AA60

CLAMP - WIRING

SN: A60016-UP-UP

2шт.

14

425-963-A790

BOLT, FLANGED HEX - #10-32 X 1/2 IN.

SN: A60016-UP-UP

2шт.

15

147 579

WASHER, FLAT - 3/16 IN.

SN: A60016-UP-UP

2шт.

16

425-963-AA90

RELAY

SN: A60016-UP-UP

1шт.

17

425-963-AB50

THERMOSTAT

SN: A60016-UP-UP

1шт.

18

425-963-AE70

HOSE - DUCT

SN: A60016-UP-UP

1шт.

19

425-963-A750

CLIP - HOSE

SN: A60016-UP-UP

3шт.

20

08034-20519

STRAP - NYLON TIE

SN: A60016-UP-UP

1шт.

21

425-963-AD30

HARNESS, WIRING

SN: A60016-UP-UP

1шт.

|$25

-1шт.

|$26

OR

-1шт.

|$27

-1шт.

21

425-963-AD31

HARNESS, WIRING

SN: A60016-UP-UP

1шт.

22

187 828

BOLT, CAP SOCKET - #10-32 X 1/2 IN.

SN: A60016-UP-UP

5шт.

|$62

-1шт.

|$45

F1 - USED WITH Z-TYPE RESISTOR MOUNTING BRACKET, ITEM 3. THE RESISTOR ANDALL PARTS ARE TO BE REPLACED. ORDER ALL OF THE FOLLOWING PARTS:

-1шт.

|$63

-1шт.

|$64

-1шт.

4

425-963-A691

BRACKET, RESISTOR MOUNTING - U-TYPE

1шт.

7

425-963-AA31

RESISTOR

1шт.

8

26 288 R1

BOLT, RESISTOR

1шт.

9

425-963-AF30

BUSHING, RESISTOR

2шт.

10

9413 992

NUT, RESISTOR

1шт.

12

425-963-AF40

SCREW, MOUNTING

4шт.

21

425-963-AD31

HARNESS, WIRING

1шт.

|$65

-1шт.

|$48

F2 - USED WITH U-TYPE RESISTOR MOUNTING BRACKET, ITEM 4.

-1шт.

|$66

-1шт.

|$51

F3 - ORDER BLOWER ASSEMBLY 425-963-AE31. WHEN REPLACING AN EARLIER VERSION BLOWER ASSEMBLY WITH THE CURRENT VERSION BLOWER, (HAVING THE Z-TYPE RESISTOR MOUNTING BRACKET, ITEM 3 AND RESISTOR, ITEM 6) ALSO ORDER ALL OF THE FOLLOWING PARTS:

-1шт.

|$67

-1шт.

4

425-963-A691

BRACKET, RESISTOR MOUNTING U-TYPE

1шт.

7

425-963-AA31

RESISTOR

1шт.

8

26 288 R1

BOLT, RESISTOR

1шт.

9

425-963-AF30

BUSHING, RESISTOR

2шт.

10

9413 992

NUT, RESISTOR

1шт.

12

425-963-AF40

SCREW, MOUNTING

4шт.

21

425-963-AD31

HARNESS, WIRING

1шт.

|$46

-1шт.

|$54

F4 - USED WITH EARLIER VERSION RESISTOR, ITEM 6 AND Z-TYPE RESISTOR MOUNTING BRACKET, ITEM 3. THE RESISTOR AND ALL PARTS ARE TO BE REPLACED. ORDER ALL OF THE ABOVE PARTS.

-1шт.

|$56

-1шт.

|$57

F5 - USED WITH CURRENT VERSION RESISTOR, ITEM 7 AND U-TYPE RESISTOR MOUNTING BRACKET, ITEM 4.

-1шт.

|$59

-1шт.

|$60

F6 - USED ON MACHINES WITH HEAT/DEFROST AND A/C ONLY. NOT USED ON MACHINES WITH HEAT/DEFROST ONLY.

-1шт.

|$61
